VSC OFF SWITCH (w/ VSC): Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL VSC OFF SWITCH

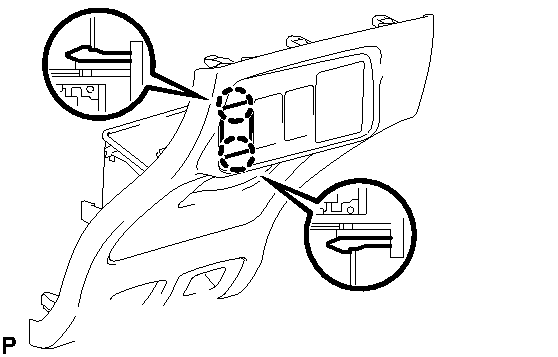

- Engage the 2 claws to install the VSC OFF switch to the lower instrument panel finish panel assembly.
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY . Refer to INSTALLATION - Step 4
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- CHECK VSC WARNING LIGHT AND VSC OFF INDICATOR LIGHT
Refer to TEST MODE PROCEDURE
