Room Light: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 1 ROOM LIGHT ASSEMBLY
1. Engage the guide and claw in the order shown in the illustration, and install the room light cover.

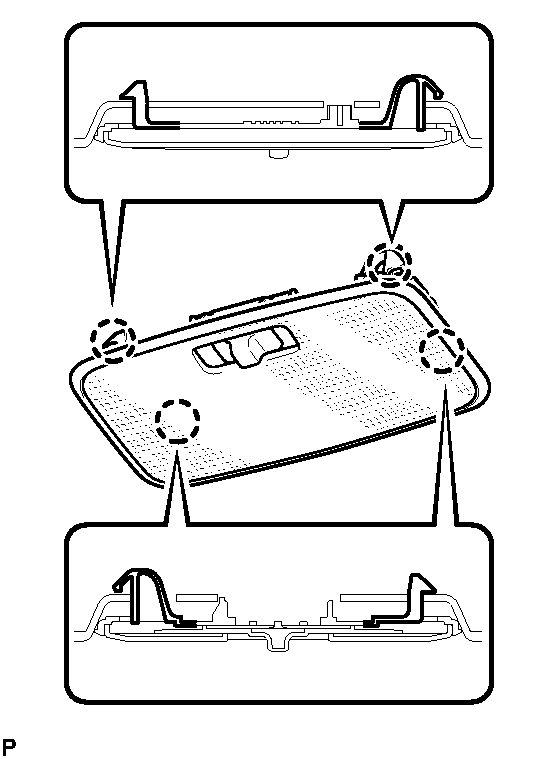

  Fig 1: Identifying No. 1 Room Light Assembly And Guide With Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and the LH side.
2. Engage the 4 claws and install the lens cover.

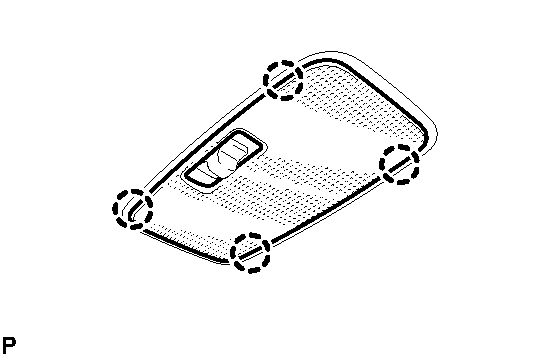

  Fig 2: Identifying Lens Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the room light switch base to the No. 1 room light assembly.

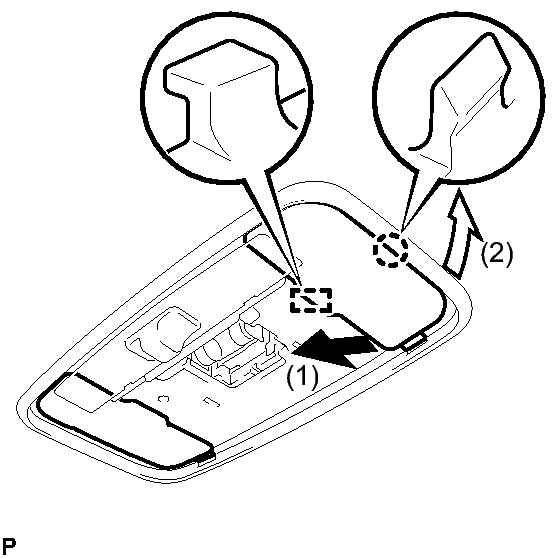

  Fig 3: Identifying Claws Location On Room Light Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 4 claws and install the No. 1 room light assembly.

  Fig 4: Identifying Claws On No. 2 Room Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
