Intake Manifold: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE THROTTLE BODY ASSEMBLY
Refer to REMOVAL
REMOVE INTAKE MANIFOLD
1. Disconnect the 5 wire harness clamps.
2. Remove the 2 engine cover joints and separate the wire harness clamp bracket.
3. Disconnect the vapor feed hose, ventilation hose and vacuum hose from the intake manifold.

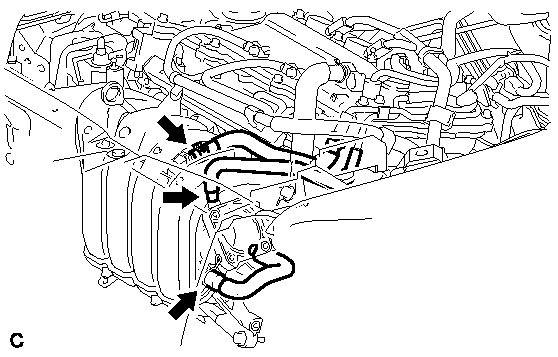

  Fig 1: Identifying Vapor Feed Hose, Ventilation Hose, Vacuum Hose At Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 4 bolts, 2 nuts, intake manifold stay and intake manifold.

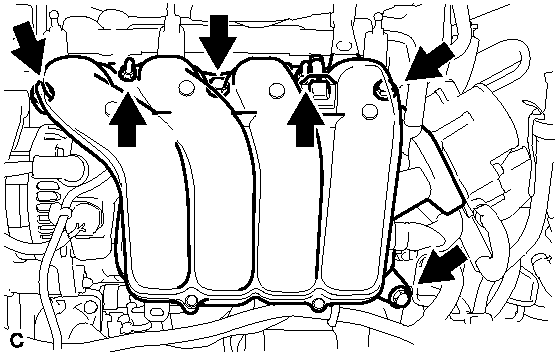

  Fig 2: Identifying Intake Manifold, Manifold Stay, 4 Bolts, 2 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the gasket from the intake manifold.

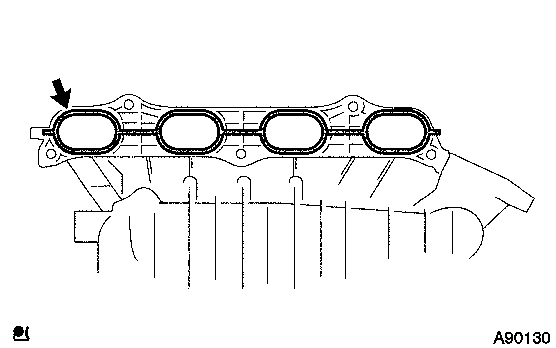

  Fig 3: Identifying The No. 1 Intake Manifold Gasket Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the bolt and wire harness clamp bracket.
7. Using a "TORX" socket wrench (E6), remove the 2 stud bolts from the intake manifold.
