Terminals Of Ecu

CHECK 4WD CONTROL ECU

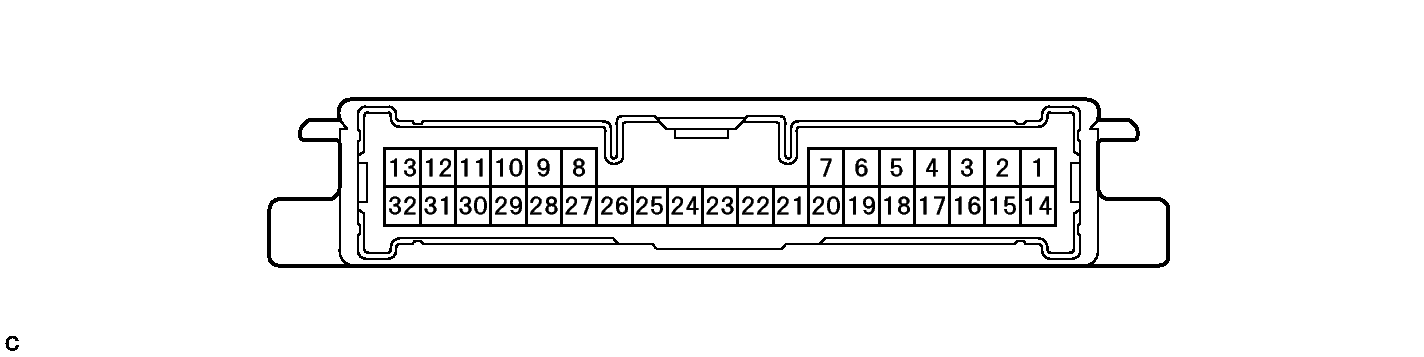

Fig 1: 4WD Control ECU Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage and resistance of the connector.

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
14 (CANH) - 16 (CANL)	CAN communication	Ignition switch off	54 to 69 Ω
23 (GND) - Body ground	Ground	Always	Below 1 Ω
11 (IG1) - 23 (GND)	Power source voltage	Ignition switch ON	10 to 14 V
13 (SLC+) - 32 (SLC-)	4WD linear solenoid signal	Ignition switch ON	Pulse generation (See waveform 1)
9 (BSLC) - 23 (GND)	Power source voltage	Ignition switch ON	10 to 14 V

If the result is not as specified, the 4WD control ECU may have a malfunction.

Using an oscilloscope, check the waveform 1.

Fig 2: Identifying Waveform 1

WAVEFORM 1 (REFERENCE)

Terminal Name	Content
Tester Range	5 V/DIV., 2 msec./DIV.
Condition	Engine stop, ignition switch ON
