Manual Shifting Test

HINT:

• With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
• If any abnormalities are found in the following test, the problem is in the transaxle itself.

1. Disconnect the connector of the transmission wire.

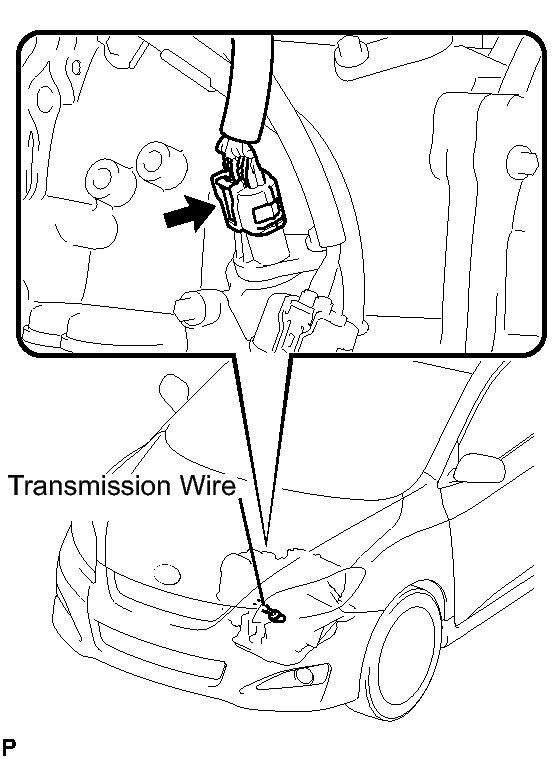

   Fig 1: Locating Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive with the transmission wire disconnected.

   Shifting the shift lever to the D position to check whether the shifting condition changes the table below.

   Shift Position	Shifting Condition
   D	No Shift (Not Change)

   HINT:

   When driving with the transmission wire disconnected, the gear position will be as follows:

   • When the shift lever is in the D position, the gear is held in the 4th position.
   • When the shift lever is in the R or the P position, the gear is also in the R or the P position respectively.
3. Connect the connector of the transmission wire.
4. Clear the DTC. Refer to DTC CHECK / CLEAR .
