Wiper Switch: Installation: Installation

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

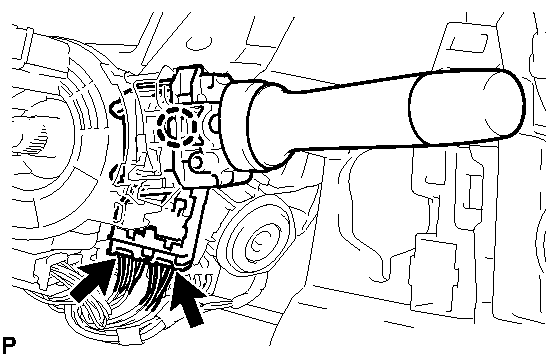

      Fig 1: Remove/Install Windshield Wiper Switch Assembly Connectors And Claw
      GTY230214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 12
  3. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  5. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 14
  6. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  . Refer to INSTALLATION - Step 15
  7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  . Refer to INSTALLATION - Step 16
  8. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 17
  9. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 18
  10. INSTALL FRONT CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION

  11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 5
  12. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 6
  13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 7
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 8
  15. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  16. INSTALL METER HOOD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  17. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 16
  18. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  19. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  20. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 23
  21. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION
