Front Speed Sensor: Removal: Removal

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.
• If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER LINER  . Refer to REMOVAL - Step 2
4. REMOVE FRONT SPEED SENSOR
   1. Disconnect the front speed sensor connector.

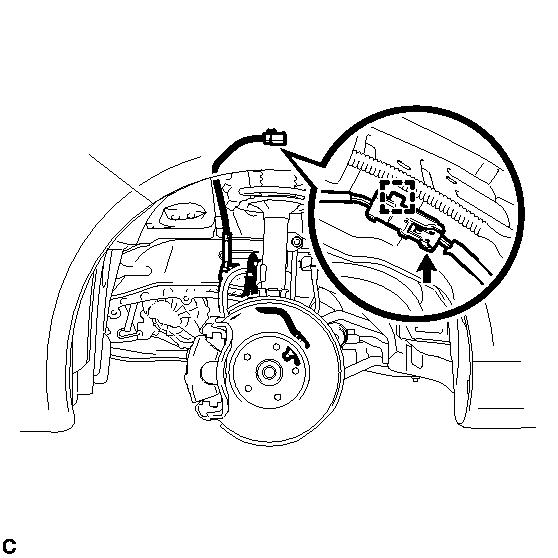

      Fig 1: Locating Front Speed Sensor Connector And Wire Harness Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the front speed sensor wire harness clamp from the body.
   3. Remove the bolt and No. 2 sensor clamp from the body.

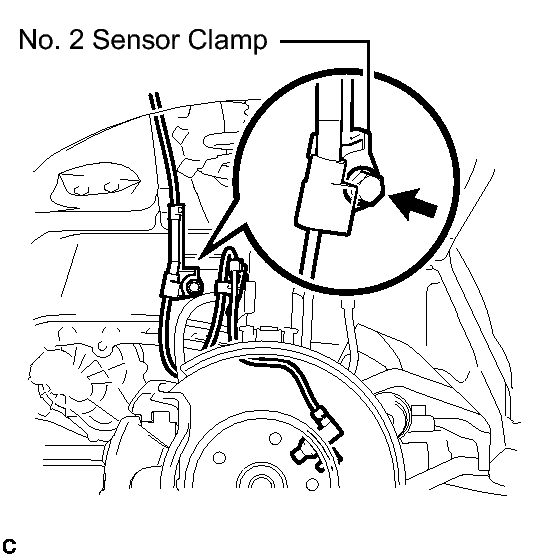

      Fig 2: Locating No. 2 Sensor Clamp And Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Remove the bolt and separate the brake flexible hose.

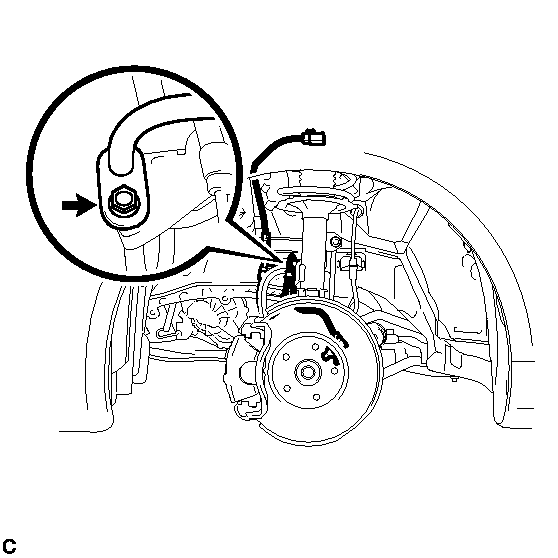

      Fig 3: Locating Brake Flexible Hose Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the No. 1 sensor clamp from the shock absorber.

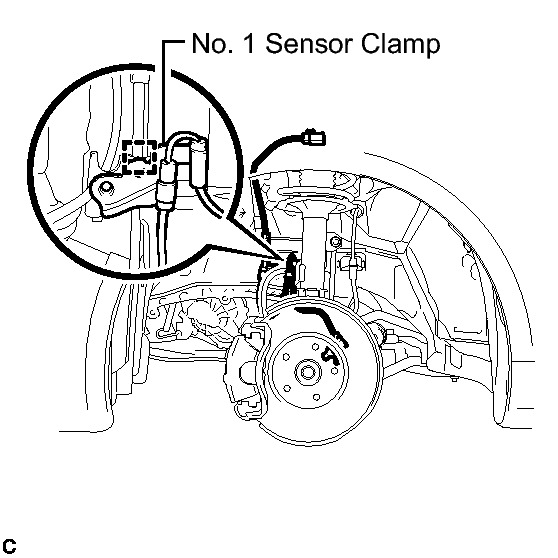

      Fig 4: Locating No. 1 Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   6. Remove the clamp.

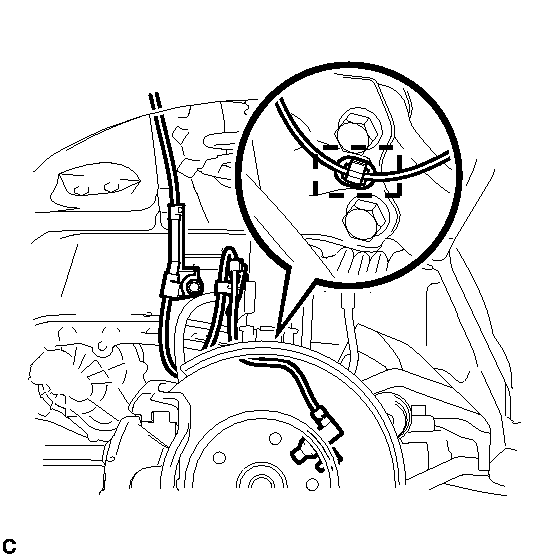

      Fig 5: Identifying Front Speed Sensor Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Remove the bolt and front speed sensor.

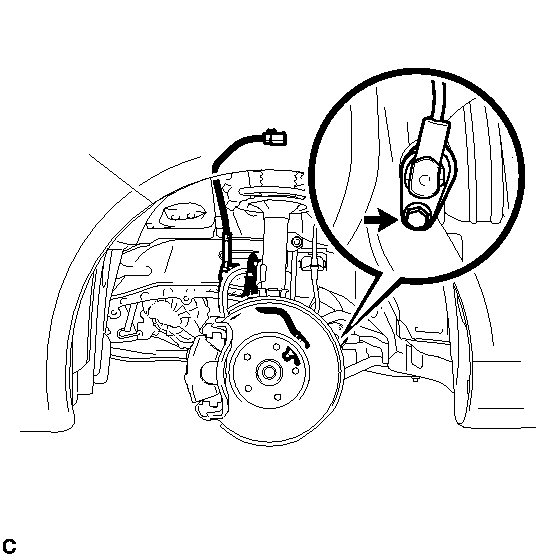

      Fig 6: Locating Front Speed Sensor Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      • Prevent foreign matter from attaching to the sensor tip.
      • Clean the installation hole and the contact surface for the speed sensor every time it is removed.
