Front Console Box: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)

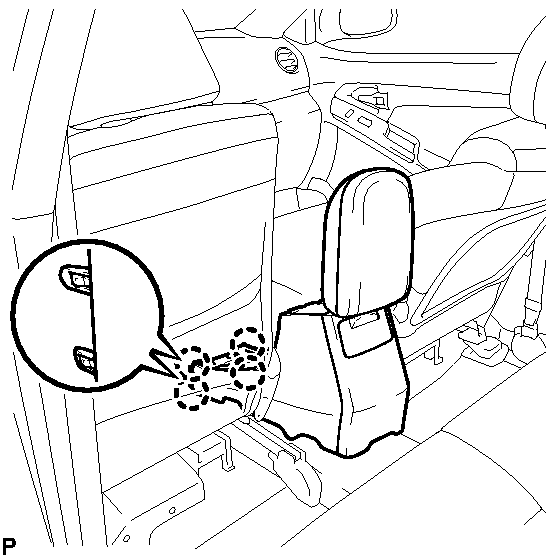

1. Engage the 4 claws.

  Fig 1: View Of Front Console Box Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

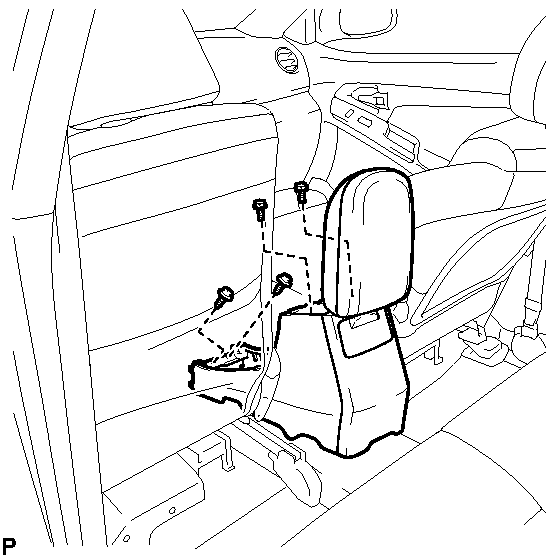

2. Install the front console box assembly with the 2 bolts and 2 screws.

  Fig 2: Remove/Install Front Console Box Assembly With Fasteners (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)

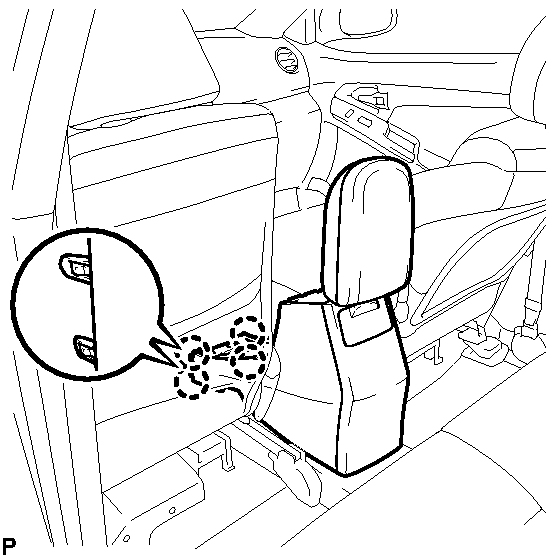

1. Engage the 4 claws.

  Fig 3: View Of Front Console Box Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

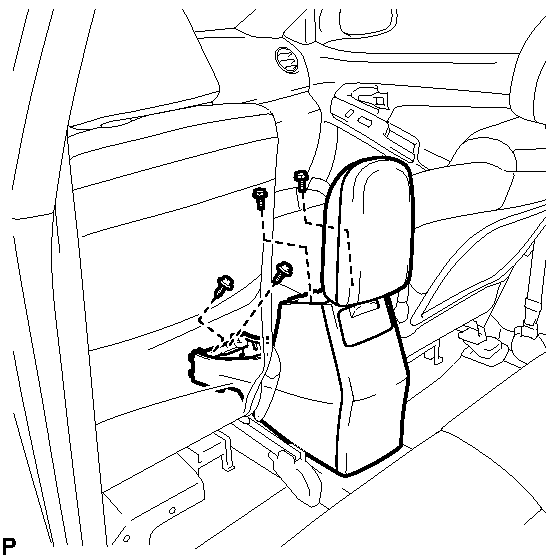

2. Install the front console box assembly with the 2 bolts and 2 screws.

  Fig 4: Remove/Install Front Console Box Assembly With Fasteners (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CARPET
INSTALL NO. 2 SWITCH HOLE BASE See step 22
INSTALL FRONT UPPER CONSOLE BOX See step 23
