Blower Unit: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER MOTOR SUB-ASSEMBLY
1. Install the blower motor sub-assembly with the 3 screws.

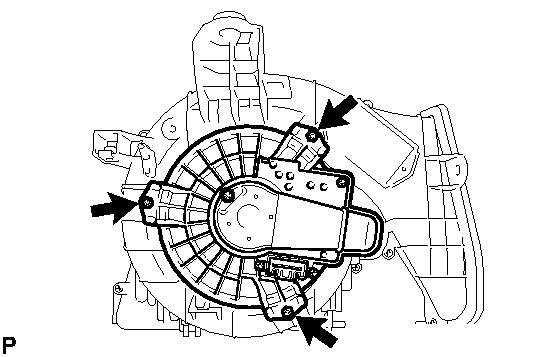

  Fig 1: Locating Blower Motor Sub-Assembly And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BLOWER RESISTOR
1. Install the blower resistor with the 2 screws.

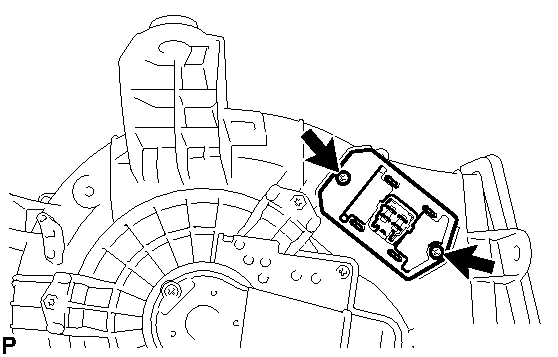

  Fig 2: Locating Blower Resistor And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLEAN AIR FILTER
1. Install the clean air filter as shown in the illustration.

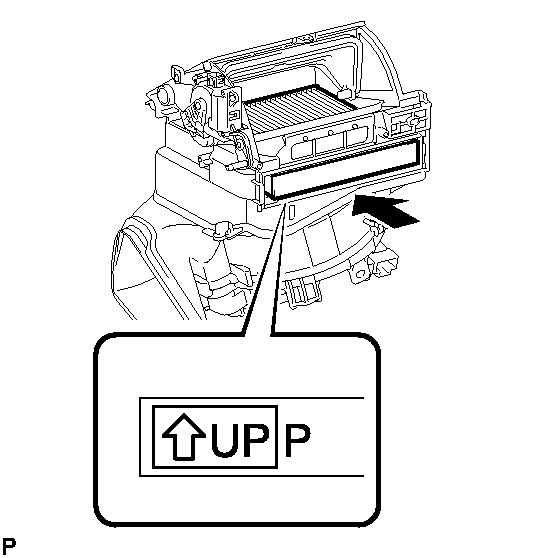

  Fig 3: Installing Air Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR FILTER CASE
1. Engage the 2 claws and install the air filter case as shown in the illustration.

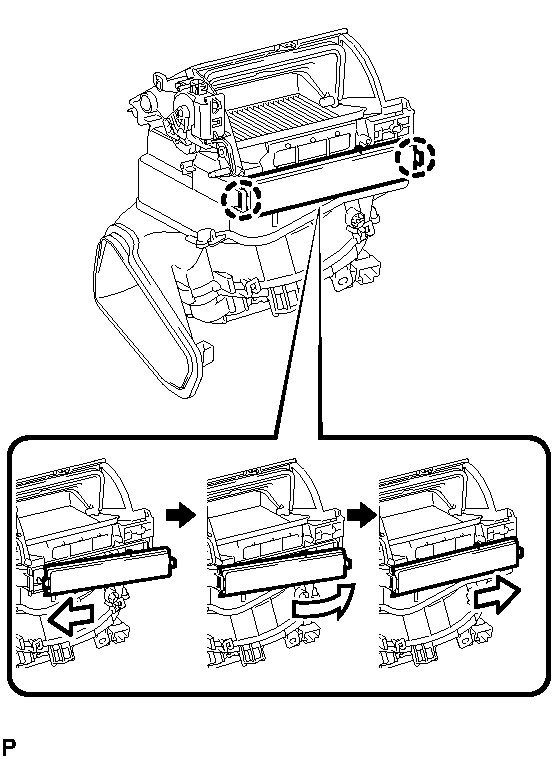

  Fig 4: Identifying Air Filter Case And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR INLET CONTROL SERVO MOTOR (for Manual Air Conditioning System)
1. Install the air inlet control servo motor with the 2 screws.

  Fig 5: Identifying Air Inlet Control Servo Motor And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR INLET CONTROL SERVO MOTOR (for Automatic Air Conditioning System)
1. Install the air inlet control servo motor with the 2 screws.

  Fig 6: Identifying Air Inlet Control Servo Motor And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
