Entry Lock And Unlock Switch: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL  . Refer to DISASSEMBLY - Step 3
  2. REMOVE FRONT ARMREST UPPER BASE PANEL  . Refer to DISASSEMBLY - Step 5
  3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 9
  4. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY  . Refer to DISASSEMBLY - Step 10
  5. REMOVE FRONT DOOR TRIM BRACKET  . Refer to DISASSEMBLY - Step 17
  6. REMOVE FRONT DOOR SERVICE HOLE COVER  . Refer to DISASSEMBLY - Step 18
  7. REMOVE FRONT DOOR OUTSIDE HANDLE COVER  . Refer to DISASSEMBLY - Step 29
  8. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY
    1. Disconnect the connector.
      Fig 1: Locating Front Door Outside Handle Assembly Connector
      GTY197775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front door outside handle assembly as shown in the illustration.

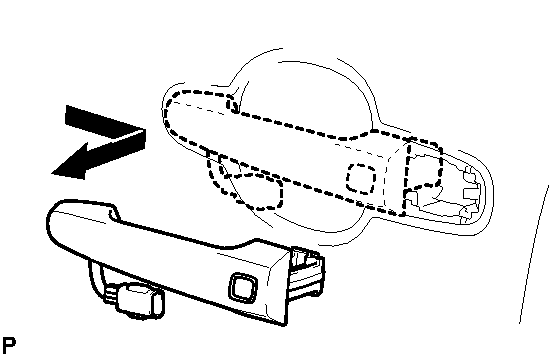

      Fig 2: Removing Front Door Outside Handle Assembly
      GTY197776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
