Driver Side Door Entry Lock Function does not Operate: Wiring Diagram
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

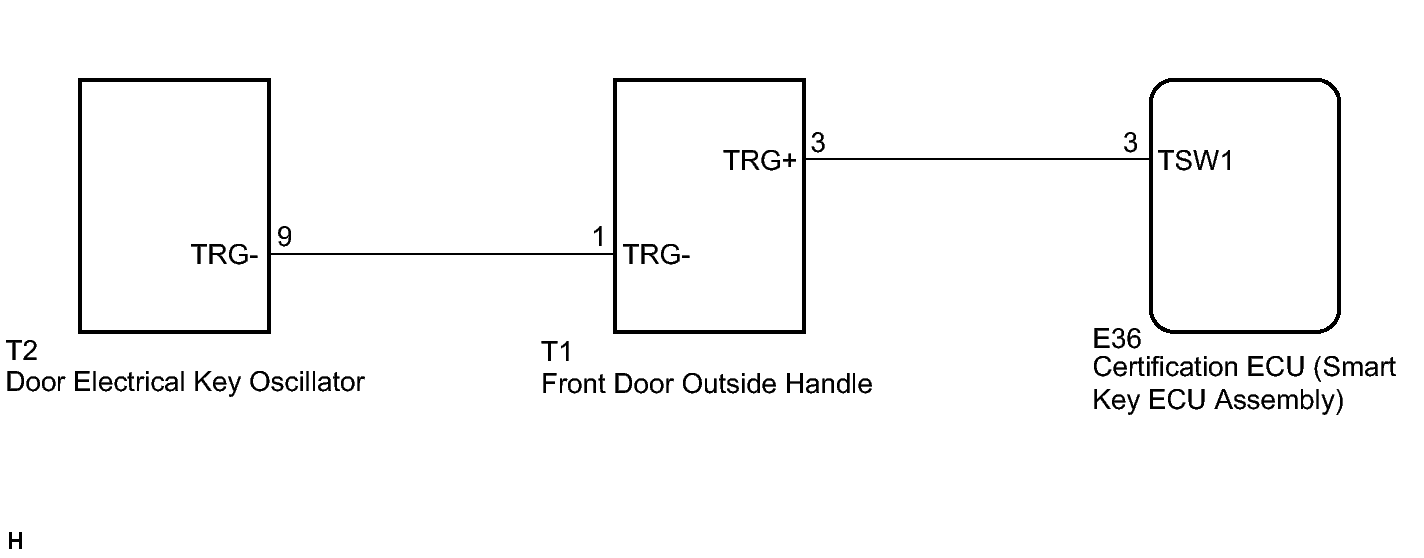

Fig 1: Front Door Outside Handle And Door Electrical Key Oscillator - Wiring Diagram
