System Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

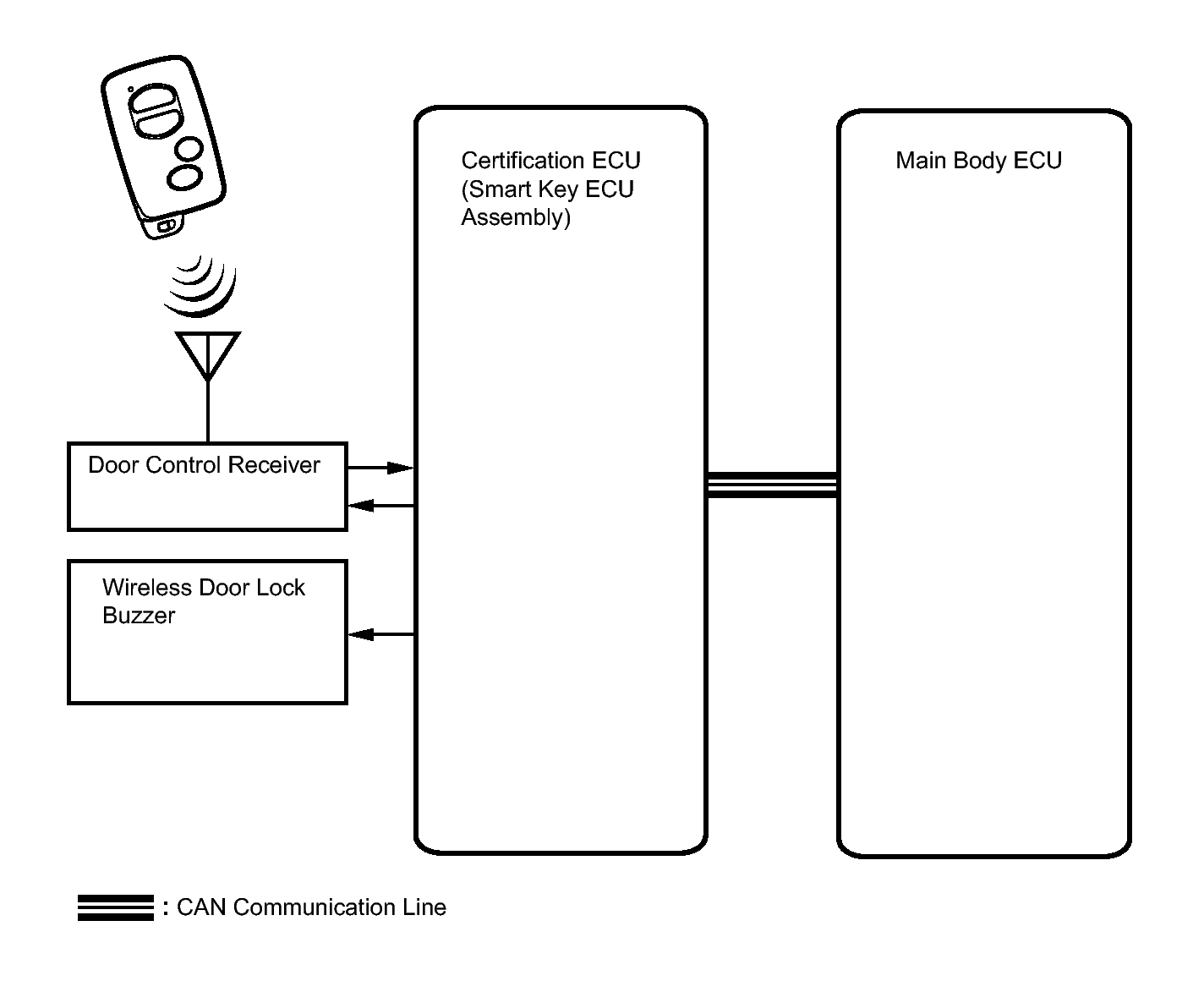

Fig 1: Wireless Door Lock Control (W/ Smart Key) System Diagram (1 Of 2)
GTY200263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

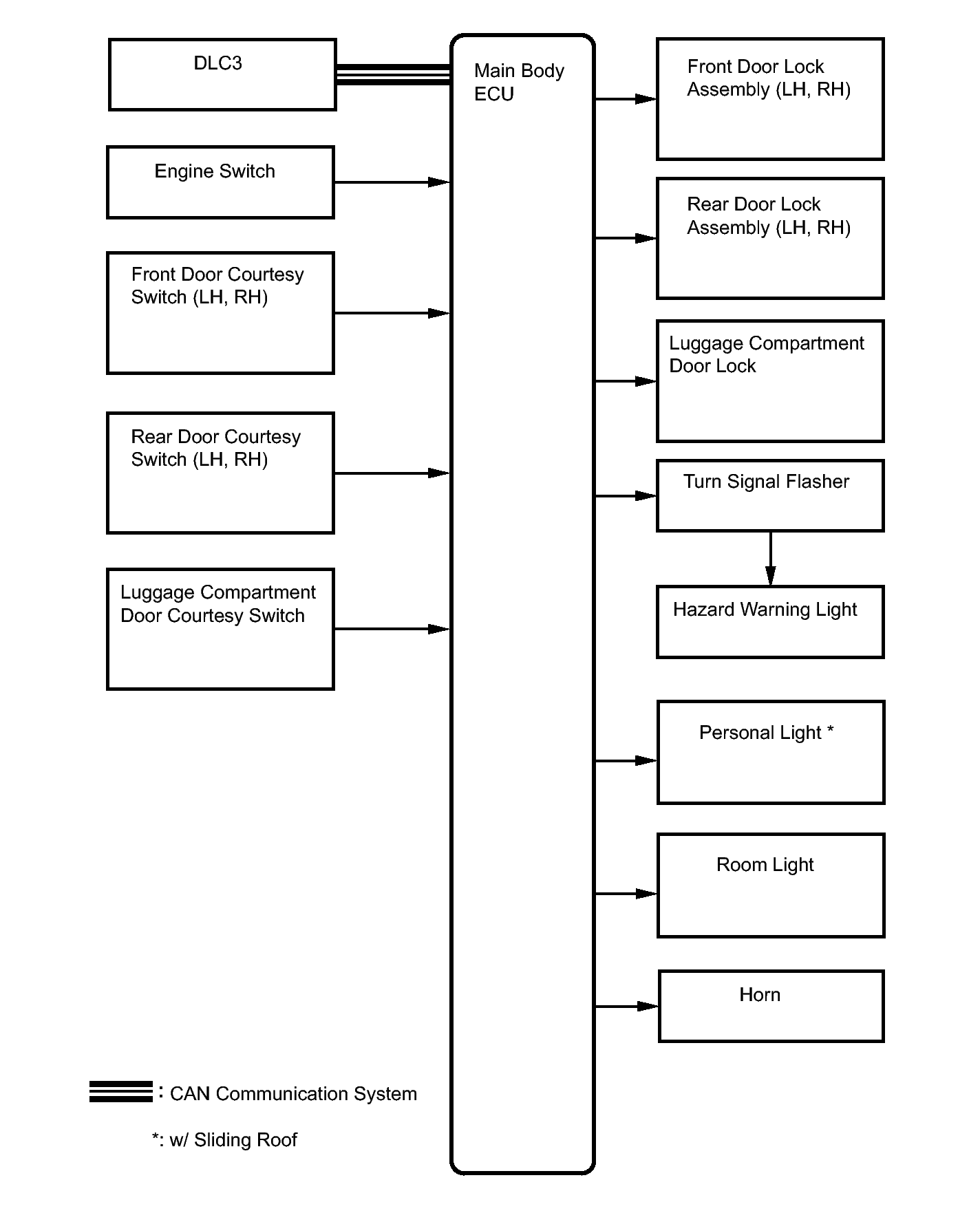

Fig 2: Wireless Door Lock Control (W/ Smart Key) System Diagram (2 Of 2)
GTY181822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU Main Body ECU Wireless door lock signal CAN
