Front Passenger Airbag Assembly: Installation: Installation

INSTALL INSTRUMENT PANEL WIRE ASSEMBLY
1. Install the clamp.

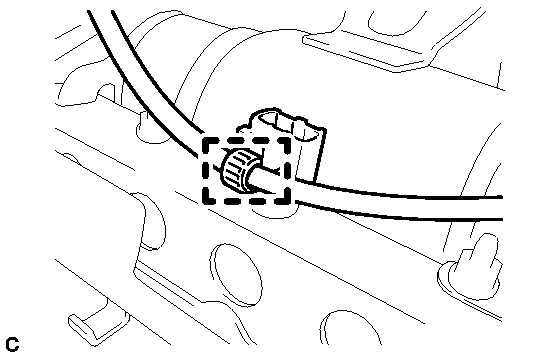

  Fig 1: Identifying Instrument Panel Wire Assembly And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 airbag connectors.

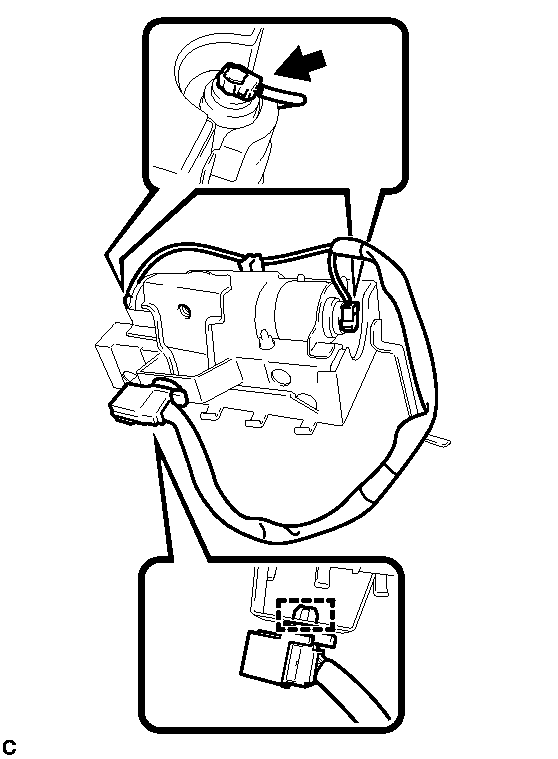

  Fig 2: Locating Airbag Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the clamp and instrument panel wire assembly on the front passenger airbag assembly.
  NOTE:
  When connecting the airbag connector, take care not to damage the airbag wire harness.
INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Engage the 5 hooks.

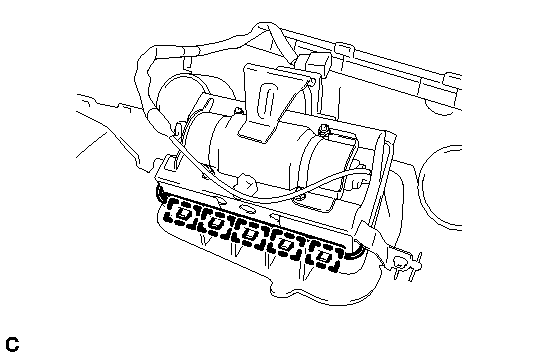

  Fig 3: Identifying Front Passenger Airbag Assembly Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the front passenger airbag assembly with the 5 hooks on the upper instrument panel sub-assembly.

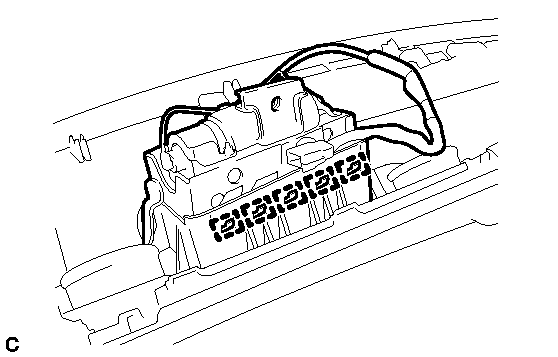

  Fig 4: Identifying Front Passenger Airbag Assembly Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

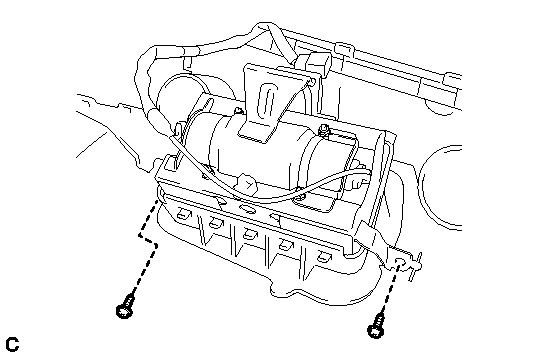

  Fig 5: Identifying Front Passenger Airbag Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER TO REGISTER DUCT ASSEMBLY . Refer to REASSEMBLY - Step 6
INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 1
CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
  WARNING:
  Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
3. Connect the connector.

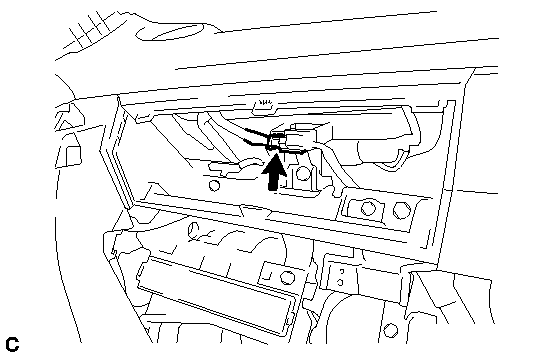

  Fig 6: Locating Instrument Panel Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When connecting the airbag connector, take care not to damage the airbag wire harness.
INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
HINT:

Refer to the procedure from Install No. 1 Instrument Panel Box Door Sub-assembly. Refer to INSTALLATION .
