Can Communication System (Diagnostics & Symptom Tests)
>>
Can Communication System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

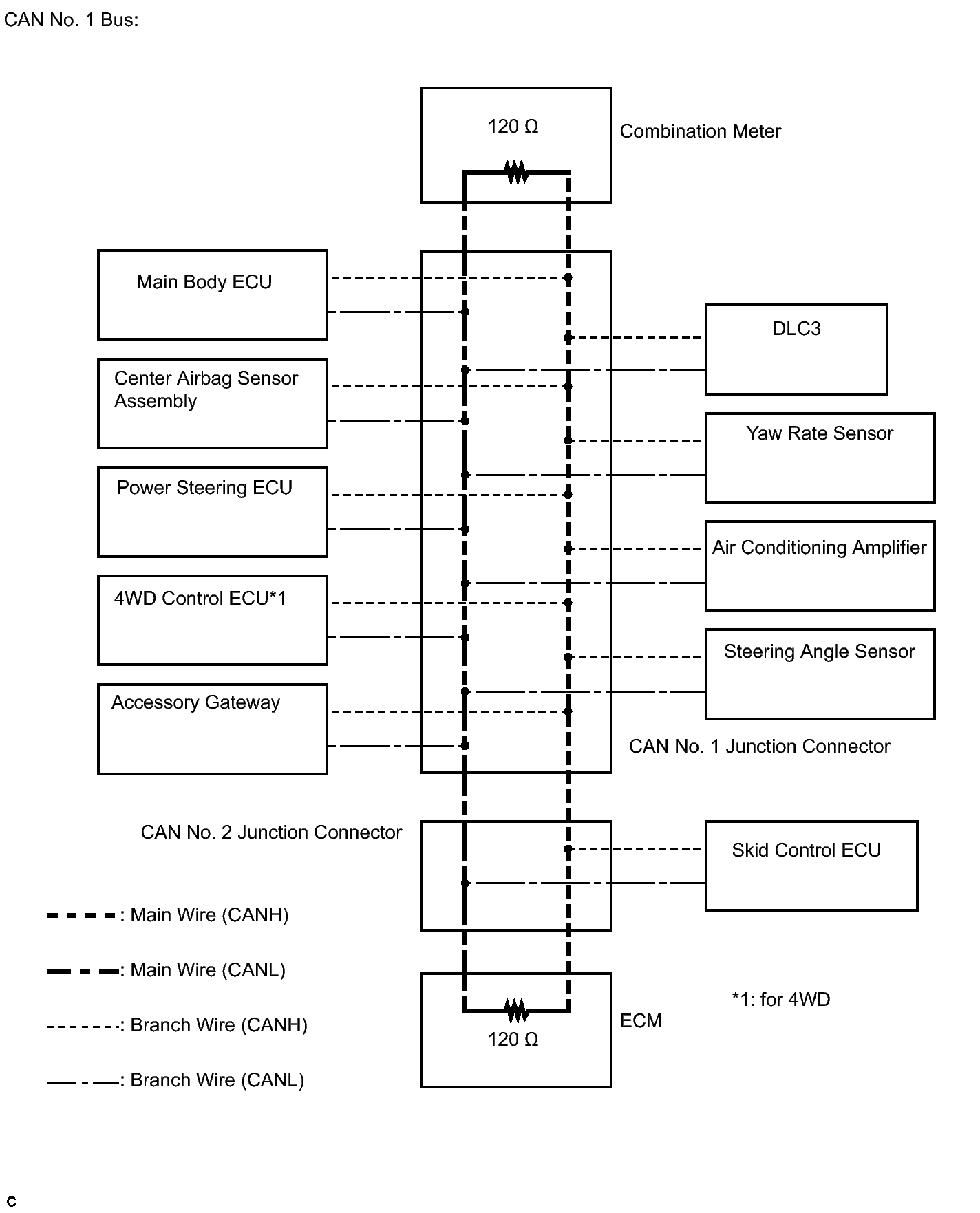

Fig 1: Identifying Can Communication System Diagram
