Air Conditioning Pressure Sensor: Installation: Installation
WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL AIR CONDITIONING PRESSURE SENSOR
- Sufficiently apply compressor oil to a new air conditioning pressure sensor.
Compressor oil
ND-OIL 8 or equivalent

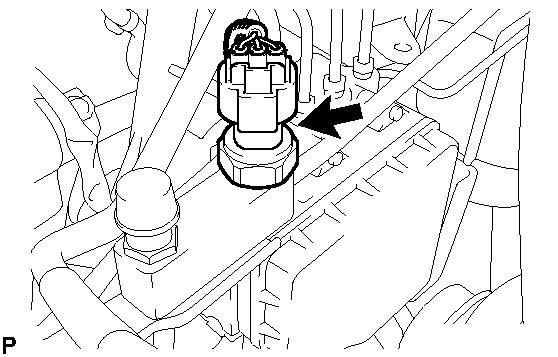

- Install the new air conditioning pressure sensor.
Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)
- Connect the connector.
- Sufficiently apply compressor oil to a new air conditioning pressure sensor.
- CHARGE WITH REFRIGERANT See step 2
- WARM UP ENGINE See step 3
- INSPECT FOR REFRIGERANT LEAK See step 4
