Section 190 (Air Conditioning System (Service Information)): Condenser: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COOLER DRYER
1. Using pliers, install a new cooler dryer to the modulator.

  Fig 1: Remove/Install Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply sufficient compressor oil to a new O-ring and the cap fitting surface.

  Fig 2: View Of O-Ring On Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Compressor oil

  ND-OIL 8 or equivalent
3. Using a 14 mm straight hexagon wrench, install a new cap to the cooler condenser core.

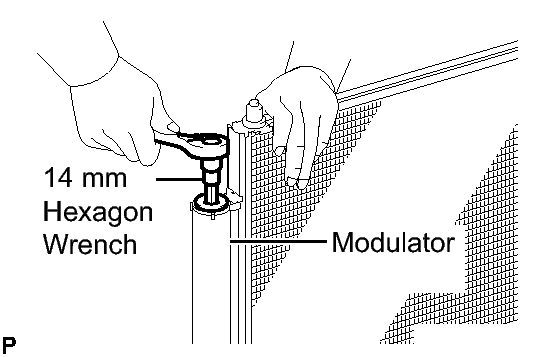

  Fig 3: Remove/Install Cooler Dryer Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 2.9 N*m (30 kgf*cm, 26 in.*lbf)
INSTALL NO. 1 COOLER CONDENSER CUSHION
1. Install the 4 No. 1 cooler condenser cushions.

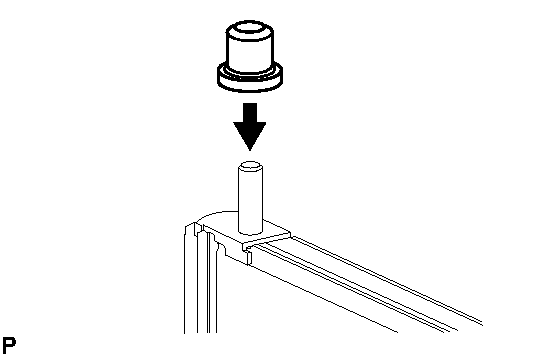

  Fig 4: Installing No. 1 Cooler Condenser Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
