Front Speed Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.
If the sensor rotor needs to be replaced, replace it together with the front drive outboard joint shaft assembly (for TMC Made).
If the sensor rotor needs to be replaced, replace it together with the front drive shaft assembly (except TMC Made).

INSTALL FRONT SPEED SENSOR (for TMC Made)
1. Install the front speed sensor with the bolt.

  Fig 1: Locating Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 76 in.*lbf)
  NOTE:
  - Prevent foreign matter from attaching to the sensor tip.
  - Do not file the sensor installation hole or surface because the gap between the magnet rotor and front speed sensor is important.
2. Temporarily install the No. 1 sensor clamp to the shock absorber.

  Fig 2: Identifying No. 1 Sensor Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the brake flexible hose with the bolt.

  Fig 3: Locating Brake Flexible Hose Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
  NOTE:
  - Do not twist the front speed sensor wire harness during installation.
  - Tighten the brake flexible hose and front speed sensor together with the bolt. Make sure that the front speed sensor is positioned over the flexible hose.
4. Install the No. 2 sensor clamp to the body with the bolt.

  Fig 4: Locating No. 2 Sensor Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
5. Install the front speed sensor wire harness clamp.

  Fig 5: Locating Front Speed Sensor Connector And Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the speed sensor connector.
INSTALL FRONT SPEED SENSOR (except TMC Made)
1. Install the front speed sensor with the bolt.

  Fig 6: Locating Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 76 in.*lbf)
  NOTE:
  - Prevent foreign matter from attaching to the sensor tip.
  - Do not file the sensor installation hole or surface because the gap between the magnet rotor and front speed sensor is important.
2. Install with the clamp to the shock absorber.

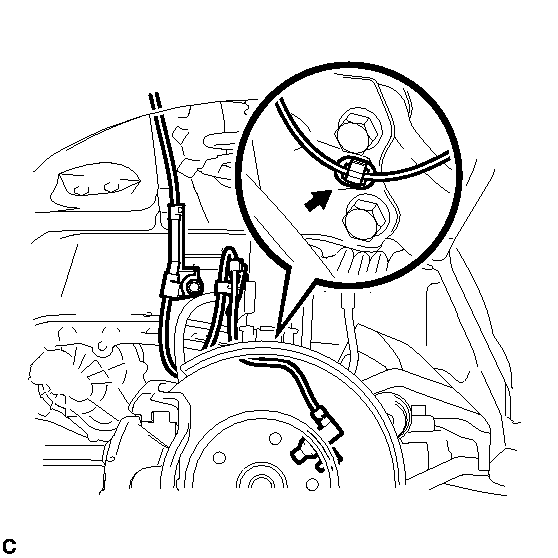

  Fig 7: Locating Shock Absorber Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the No. 1 sensor clamp to the shock absorber.

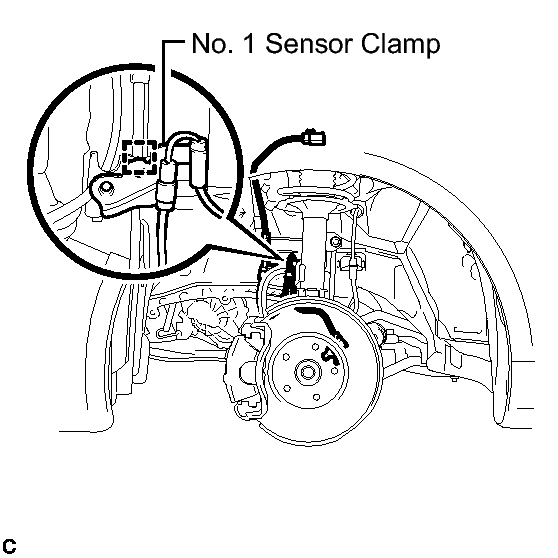

  Fig 8: Identifying No. 1 Sensor Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the brake flexible hose with the bolt.

  Fig 9: Locating Brake Flexible Hose Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
  NOTE:
  - Do not twist the front speed sensor wire harness during installation.
  - Tighten the brake flexible hose and front speed sensor together with the bolt. Make sure that the front speed sensor is positioned over the flexible hose.
5. Install the No. 2 sensor clamp to the body with the bolt.

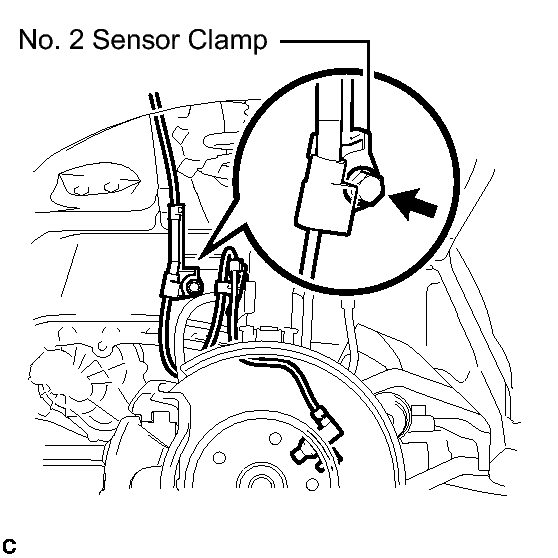

  Fig 10: Locating No. 2 Sensor Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
6. Install the front speed sensor wire harness clamp.

  Fig 11: Locating Front Speed Sensor Connector And Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the speed sensor connector.
INSTALL FRONT FENDER LINER . Refer to INSTALLATION - Step 6
INSTALL SIDE MUDGUARD . Refer to INSTALLATION - Step 1
INSTALL FRONT WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR SPEED SENSOR SIGNAL
HINT:
- without VSC: Refer to TEST MODE PROCEDURE
- with VSC: Refer to TEST MODE PROCEDURE
