Ignition Switch: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL IGNITION SWITCH ASSEMBLY
    1. Install the ignition switch with the 2 screws.

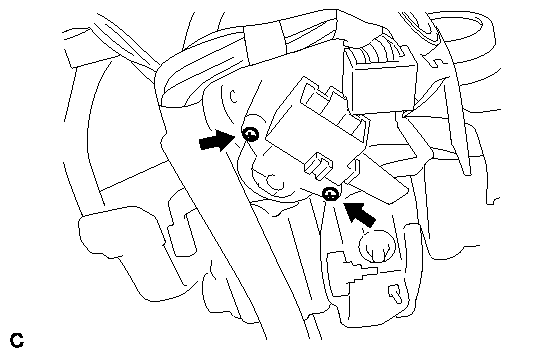

      Fig 1: Locating Ignition Switch Screws
      GTY172827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

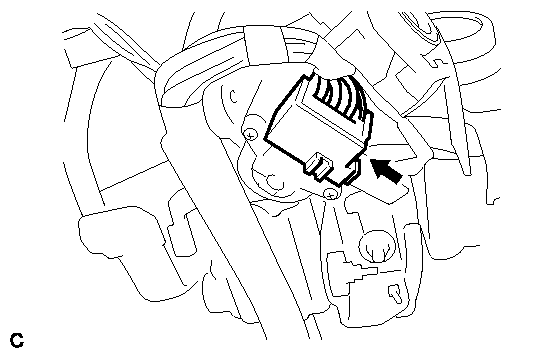

      Fig 2: View Of Ignition Switch Connector
      GTY187813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 12
  3. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  4. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 23
  5. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION

  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  8. CALIBRATE TORQUE SENSOR ZERO POINT

    Refer to CALIBRATION

  9. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
