Supplemental Restraint Systems: SST: SST

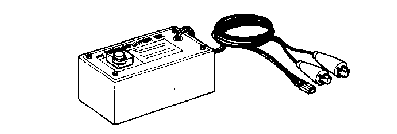

GTY104366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00700 SRS Airbag Deployment Tool
GTY102849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00780 Airbag Deployment Wire
Sub-harness No. 6
GTY101234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00802 Airbag Deployment Wire
Sub-Harness No. 8
GTY102467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-10801) Wire A
GTY104203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-20801) Wire B
GTY102469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09082-30801) Wire C
GTY121686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09082-00820 Airbag Deployment Wire
Sub-Harness No. 10
GTY103537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18040 Diagnosis Check Wire No. 2
GTY102039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09843-18061 SRS Check Wire
GTY137789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09961-00950 Torque Wrench Adapter
