Spiral Cable: Inspection: Inspection

INSPECT SPIRAL CABLE

If there are any defects as mentioned below, replace the spiral cable with a new one:
- Scratches, cracks, dents or chips on the connector or the spiral cable.

Inspect the spiral cable.

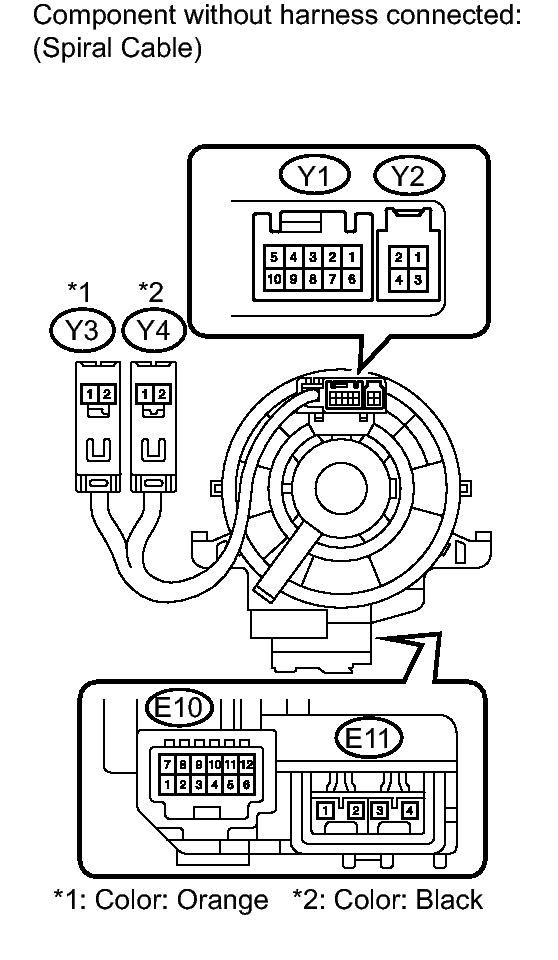

Fig 1: Inspecting Spiral Cable Connector Terminals

GTY217823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

NOTE:

To avoid breakage of the spiral cable, do not turn the spiral cable more than necessary.

If the value is not within the specified range, replace the spiral cable.

STANDARD RESISTANCE

Tester connection	Condition	Specified condition
Y1-1 - E6-8 (HO)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-5 - E6-12 (IL+2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-8 - E6-4 (EAU)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-9 - E6-5 (AU2)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y1-10 - E6-6 (AU1)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y2-3 - E6-1 (CCS)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y2-4 - E6-2 (ECC)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y3-1 (D-) - E11-2 (D-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y3-2 (D+) - E11-1 (D+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y4-1 (D2-) - E11-3 (D2-)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
Y4-2 (D2+) - E11-4 (D2+)	Center	Below 1 Ω
	2.5 rotations to the left
	2.5 rotations to the right
