Steering Pad: Disposal: Disposal

WARNING:

Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.

  1. PRECAUTION
    WARNING:
    • An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with your bare hands to discharge static electricity before performing this procedure.
    • Never dispose of a steering pad with an undeployed airbag.
    • The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
    • When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
    • When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the steering pad.
    • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
    • Do not apply water etc. to a steering pad with a deployed airbag.
    • Always wash your hands with water after completing the operation.

    HINT:

    When scrapping a vehicle equipped with an SRS or disposing of the steering pad, be sure to deploy the airbag first in accordance with the following procedure. If any abnormality occurs with the airbag deployment, contact the Service Dept. of TOYOTA MOTOR SALES, U.S.A., INC.

  2. DISPOSE OF STEERING PAD (WHEN INSTALLED IN VEHICLE)
    NOTE:
    • When disposing of the steering pad, never use the customer's vehicle to deploy the airbag.
    • Be sure to observe the following procedure when deploying the airbag.

    HINT:

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST.
      Fig 1: Identifying SST (SRS Airbag Deployment Tool)
      GTY128433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
      WARNING:

      When deploying the airbag, always use the specified SST:

      SRS Airbag Deployment Tool

      1. Connect SST to the battery.

        Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

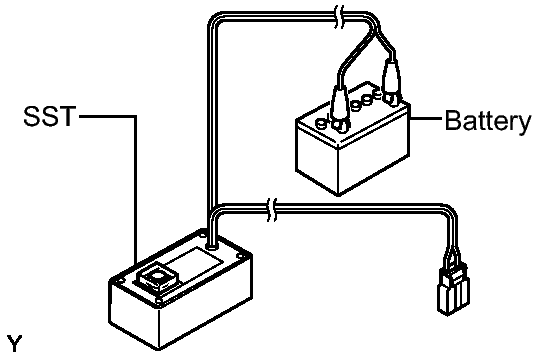

        Fig 2: Connecting SST To Battery
        GTY102953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the function of SST.

        Press the SST activation switch and check that the LED of the SST activation switch comes on.

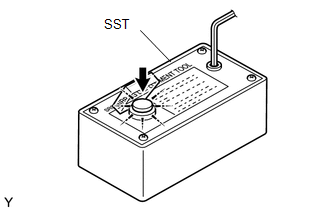

        Fig 3: Pressing SST Activation Switch
        GTY101115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:
        • Do not connect the yellow SST connector to the airbag.
        • If the LED comes on when the activation switch is not being pressed, SST is malfunctioning. Replace SST.
      3. Disconnect SST from the battery.
    2. Refer to Precaution. Refer to PRECAUTION .
    3. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    4. Remove the lower steering column cover. Refer to REMOVAL - Step 12 .
    5. Install the steering wheel assembly. Refer to INSTALLATION - Step 9 .
    6. Install the steering pad See step  1.
    7. Install SST.
      WARNING:

      Check that there is no looseness in the steering wheel assembly and steering pad.

      1. Disconnect the yellow airbag connector from the spiral cable.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      2. Connect the SST connector to the airbag connector of the spiral cable.

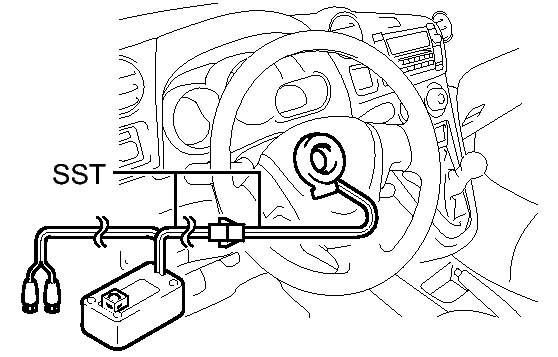

        Fig 4: Connecting SST Connector To Airbag Connector Of Spiral Cable
        GTY244882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09082-00700
        • SST: 09082-00780
        NOTE:

        To avoid damaging the SST connector or wire harness, do not lock the secondary lock of the twin lock.

      3. Move SST at least 10 m (33 ft.) away from the vehicle front side window of the vehicle.

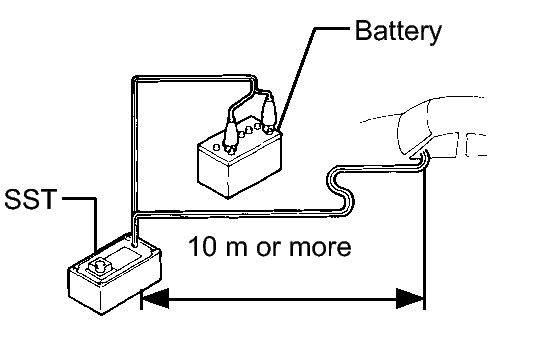

        Fig 5: Identifying Distance Between SST And Vehicle
        GTY107085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Maintaining sufficient clearance for the SST wire harness in the front side window, close all doors and windows of the vehicle.
        NOTE:

        Take care not to damage the SST wire harness.

      5. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.
    8. Deploy the airbag.
      1. Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.
      2. Press the SST activation switch and deploy the airbag.
        WARNING:
        • Before deployment, make sure that no one is near the vehicle.
        • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
        • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
        • Do not apply water etc. to a steering pad with a deployed airbag.
        • Always wash your hands with water after completing the operation.

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

  3. DISPOSE OF STEERING PAD (WHEN NOT INSTALLED IN VEHICLE)
    NOTE:

    Be sure to observe the following procedure when deploying the airbag.

    HINT:

    Prepare a battery as the power source to deploy the airbag.

    1. Check the function of SST.
      Fig 6: Identifying SST (SRS Airbag Deployment Tool)
      GTY128433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09082-00700
      WARNING:

      When deploying the airbag, always use the specified SST:

      SRS Airbag Deployment Tool

      1. Connect SST to the battery.

        Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

        Fig 7: Connecting SST To Battery
        GTY102953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the function of SST.

        Press the SST activation switch and check that the LED of the SST activation switch comes on.

        Fig 8: Pressing SST Activation Switch
        GTY101115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:
        • Do not connect the yellow SST connector to the airbag.
        • If the LED comes on when the activation switch is not being pressed, SST is malfunctioning. Replace SST.
      3. Disconnect SST from the battery.
    2. Remove the steering pad. Refer to REMOVAL .
      WARNING:
      • Before removing the steering pad, wait at least 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) battery terminal.
      • When storing the steering pad, keep the airbag deployment side facing upward.
    3. Using braided wire, tie down the steering pad to an unneeded wheel.

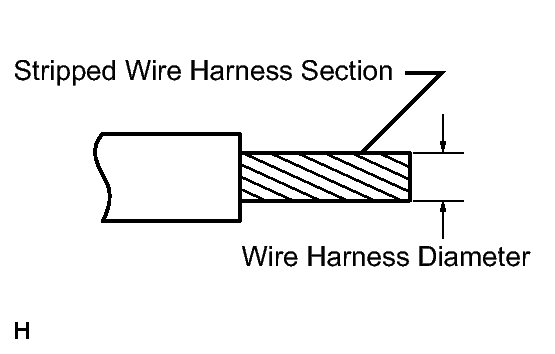

      Fig 9: Identifying Stripped Wire Harness Section
      GTY178262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Wire

      Stripped wire section

      1.25 mm2 (0.0019 in.2 ) or more

      WARNING:

      If the wire harness is too thin or an alternative object is used to tie down the steering pad, it may snap when the airbag is deployed. Always use a wire for vehicle use with an area of at least 1.25 mm2 (0.0019 in.2 ).

      HINT:

      To calculate the area of the stripped wire harness section:

      Area = 3.14 x (Diameter)2 / 4

      1. After connecting the 2 parts of the following SST to each other, connect them to the steering pad.

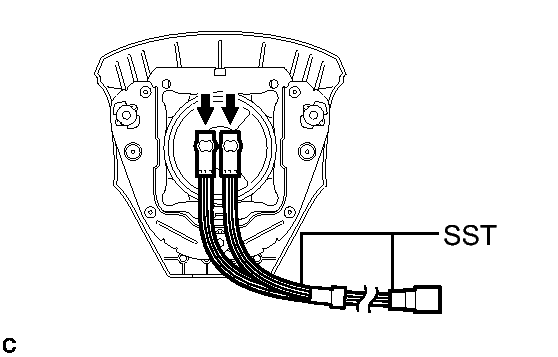

        Fig 10: Connecting 2 Parts Of SST To Steering Pad
        GTY291719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09082-00802
          • 09082-10801
          • 09082-30801
      2. Wind 3 wires at least 2 times around the horn button contact plate.

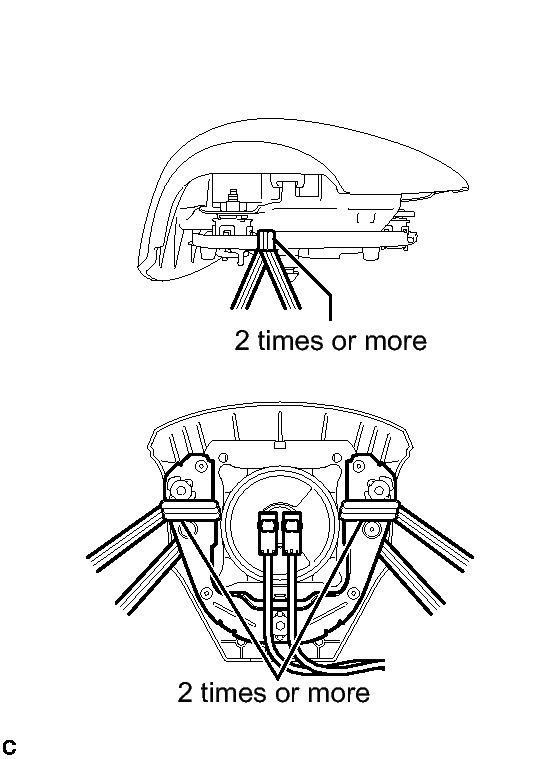

        Fig 11: Winding 3 Wires At Least Twice Around Horn Button Contact Plate
        GTY290957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:
        • Tightly wind the wires around the horn button contact plate without any slack.
        • Make sure that the wires are tight. If there is slack in the wires, the steering pad may break loose when the airbag is deployed.
      3. Face the airbag deployment side of the steering pad upward on top of an unneeded tire and wheel set. Separately tie the left and right sides of the steering pad to the wheel through the hub nut holes. Position the SST connector so that it hangs downward through the hub hole of the wheel.

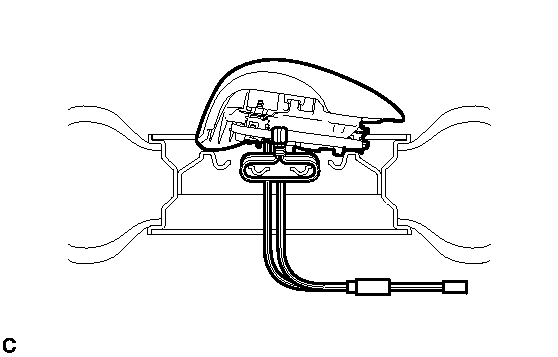

        Fig 12: Identifying Airbag And SST Connected To Tire And Wheel
        GTY290089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:
        • Make sure that the wires are tight. If there is slack in the wires, the steering pad may break loose when the airbag is deployed.
        • Always tie down the steering pad with the airbag deployment side facing upward.
        NOTE:

        The wheel will be damaged by the airbag deployment, so use an unneeded wheel.

    4. Install SST.
      WARNING:

      Place the wheel on level ground.

      1. Connect the SST connector.
        • SST: 09082-00700

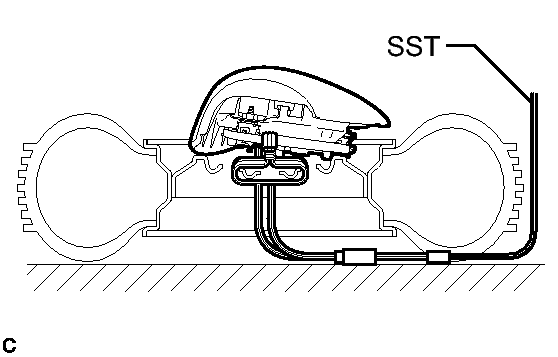

        Fig 13: Identifying SST Connector To Airbag
        GTY290715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for the SST wire harness inside the disc wheel.

      2. Move SST at least 10 m (33 ft.) away from the airbag tied down to the wheel.

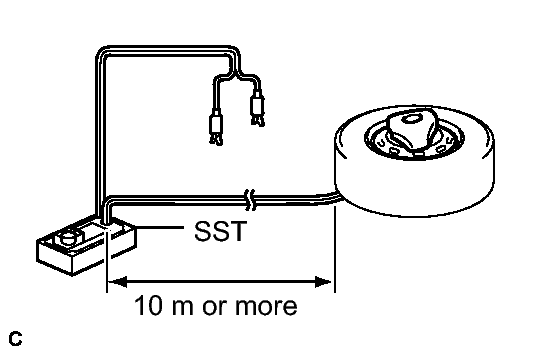

        Fig 14: Identifying SST Distance From Wheel
        GTY103604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Cover the steering pad (using a cardboard box).

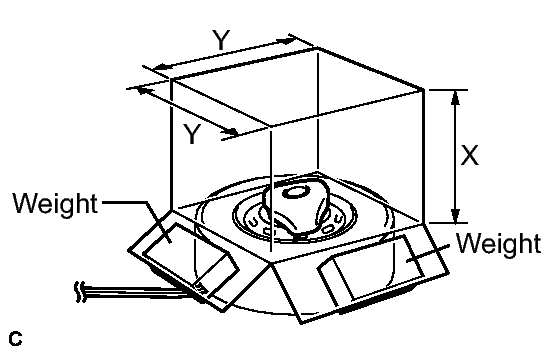

      Fig 15: Identifying Cardboard Box Dimensions
      GTY103282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Cover the steering pad with a cardboard box.
      2. Place weights on the cardboard box in 4 places totalling at least 190 N (19 kg, 43 lb).

        Minimum cardboard box size

        Must exceed the following dimensions

        X

        460 mm (1.51 ft.)

        Y

        650 mm (2.13 ft.)

        NOTE:
        • When dimension Y of the cardboard box exceeds the diameter of the disc wheel with the tire which the steering pad is tied to, X should be the following size.

          X = 460 mm (1.51 ft.) + width of tire

        • If a cardboard box smaller than the specified size is used, it may be broken by the shock from the airbag deployment.
    6. Cover the steering pad (using tires).
      1. Place at least 3 tires without wheels onto the wheel and tire to which the steering pad is tied.

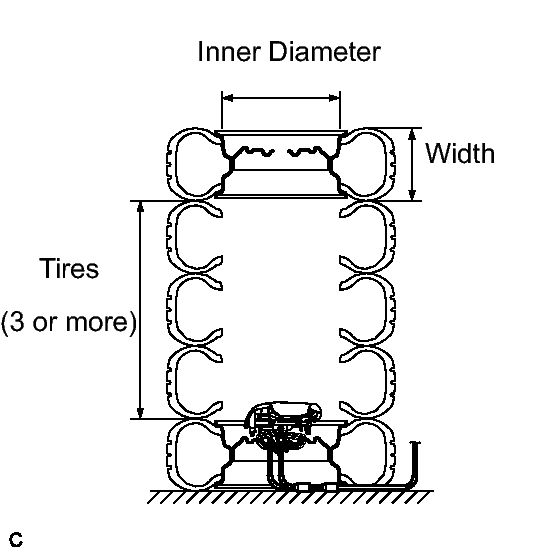

        Fig 16: Covering Steering Pad (Using Tires)
        GTY107159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Place a wheel and tire on top.

        Minimum tire size

        Must exceed the following dimensions

        Width

        185 mm (7.28 in.)

        Inner diameter

        360 mm (1.18 ft.)

        WARNING:

        Do not use tires with wheels except for on the top and bottom.

        NOTE:
        • The tires may be damaged by the airbag deployment, so use unneeded tires.
        • Do not place the SST connector under the tire because it could be damaged.
      3. Tie the tires together with 2 wires.

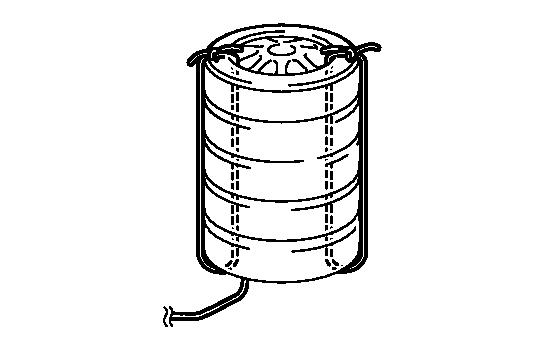

        Fig 17: Identifying Tires Tied Together With Wires
        GTY290927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        WARNING:

        Make sure that the wires are tight. Looseness in the wires results in the tires breaking loose when the airbag is deployed.

    7. Deploy the airbag.
      1. Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

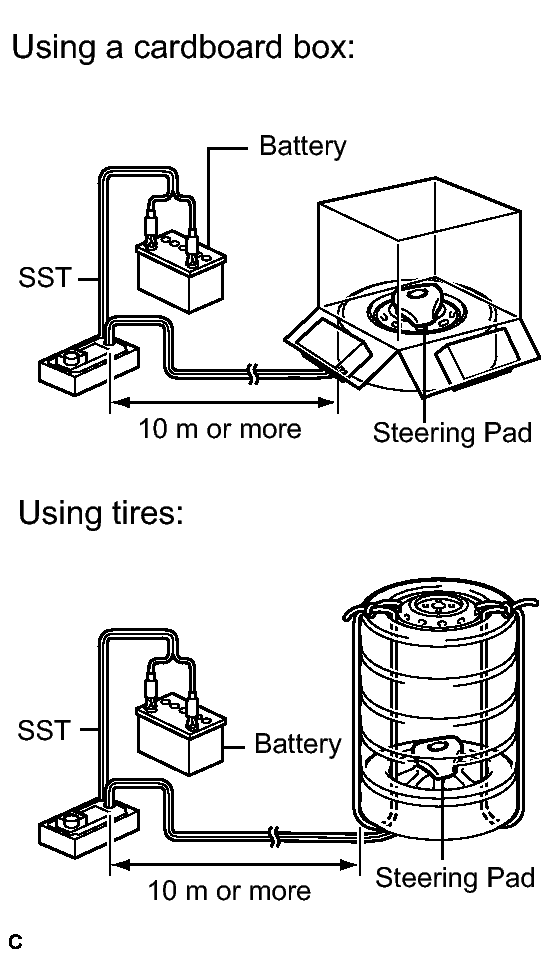

        Fig 18: Connecting SST Clip To Battery Terminal
        GTY103516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that no one is within a 10 m (33 ft.) radius of the wheel to which the steering pad is tied.
      3. Press the SST activation switch and deploy the airbag.
        WARNING:

        Before deployment, make sure that no one is near the airbag.

        HINT:

        The airbag is deployed as the LED of the SST activation switch comes on.

    8. Dispose of the steering pad.
      WARNING:
      • The steering pad becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
      • Use gloves and safety glasses when handling a steering pad with a deployed airbag.
      • Do not apply water etc. to a steering pad with a deployed airbag.
      • Always wash your hands with water after completing the operation.
      1. Remove the steering pad from the wheel.
      2. Place the steering pad in a plastic bag, tie it tightly and dispose of it according to local regulations.
