Id Code Box: Installation: Installation

  1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)
    1. Install the ID code box (immobilizer code ECU) with the bolt.

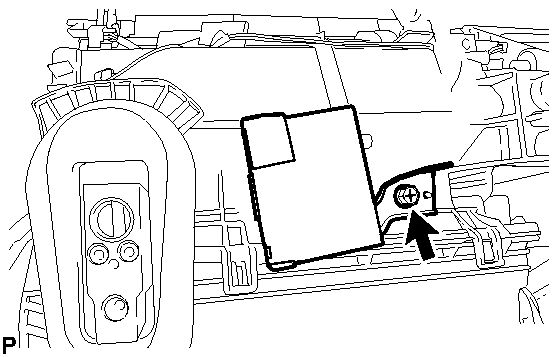

      Fig 1: Identifying ID Code Box Bolt (Immobilizer Code ECU)
      GTY226119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

    HINT:

    Refer to the procedure from Install Air Conditioning Unit Assembly. Refer to INSTALLATION .

  3. REGISTER ECU CODE
    NOTE:

    If the ID code box (immobilizer code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION .

  4. REGISTER ECU COMMUNICATION ID
    NOTE:

    If the ID code box (immobilizer code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION .
