System Diagram

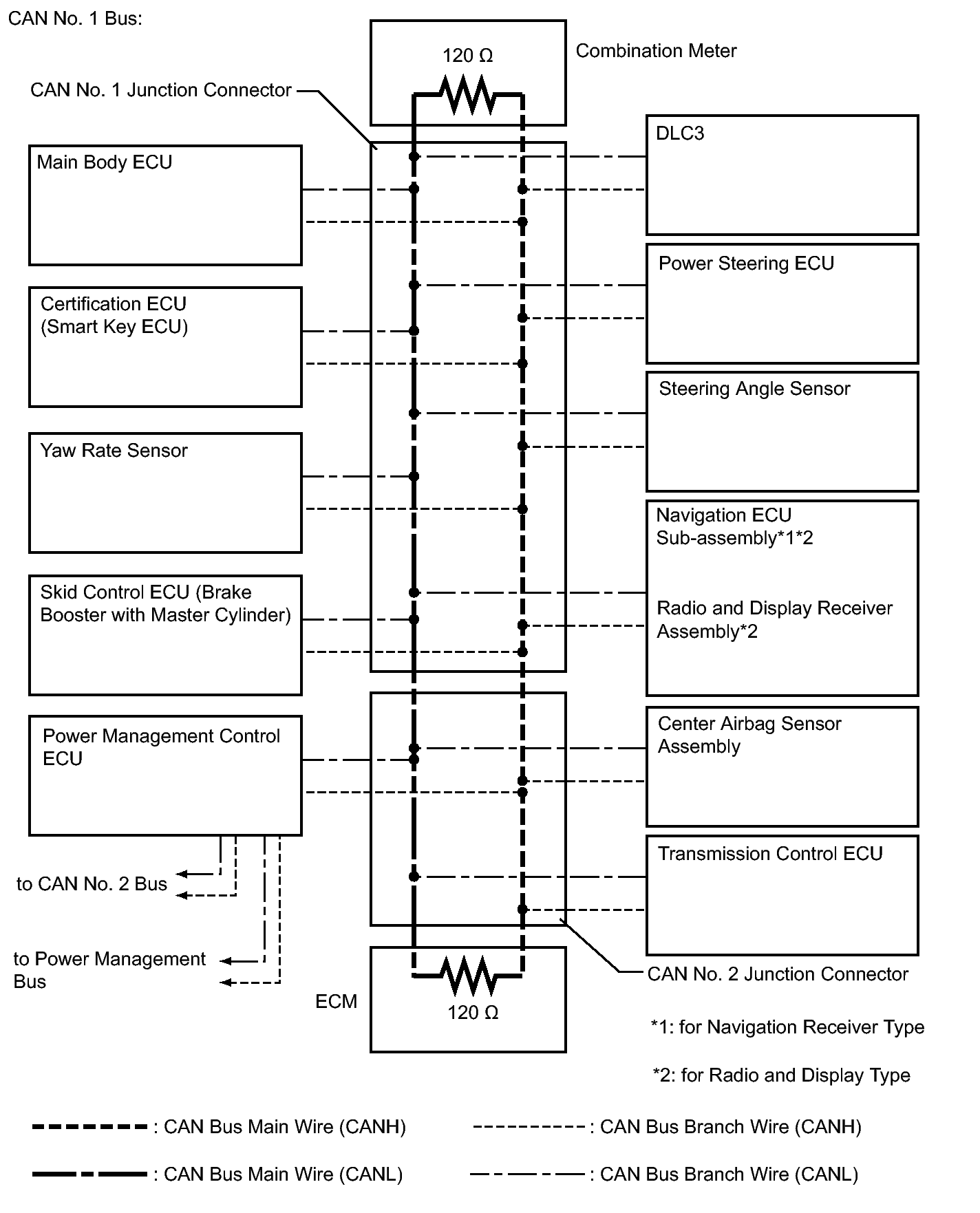

  1. CAN No. 1 BUS
    Fig 1: Identifying CAN No. 1 Bus System Diagram
    GTY325254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

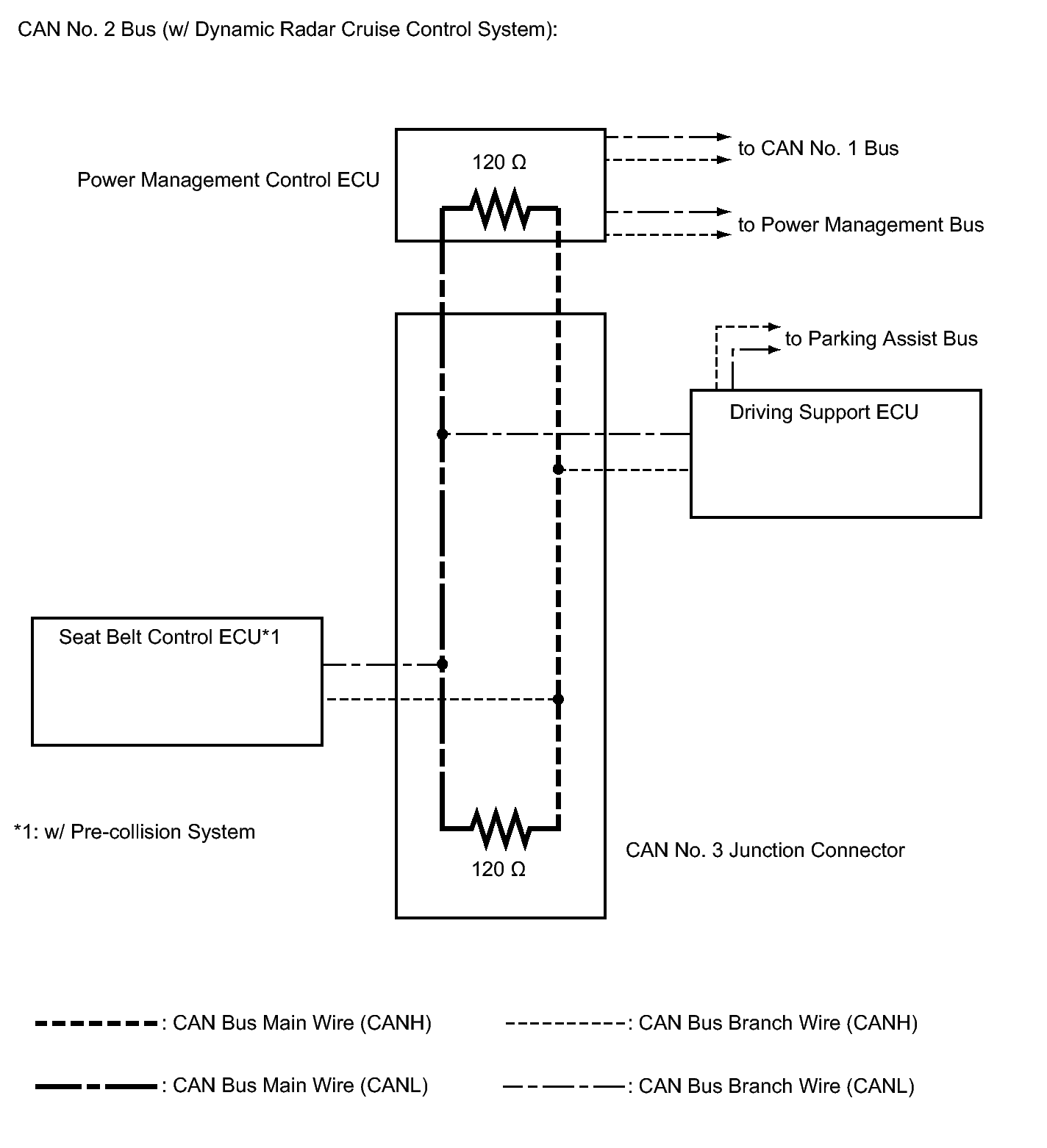

  2. CAN No. 2 BUS
    Fig 2: Identifying CAN No. 2 Bus System Diagram
    GTY327320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

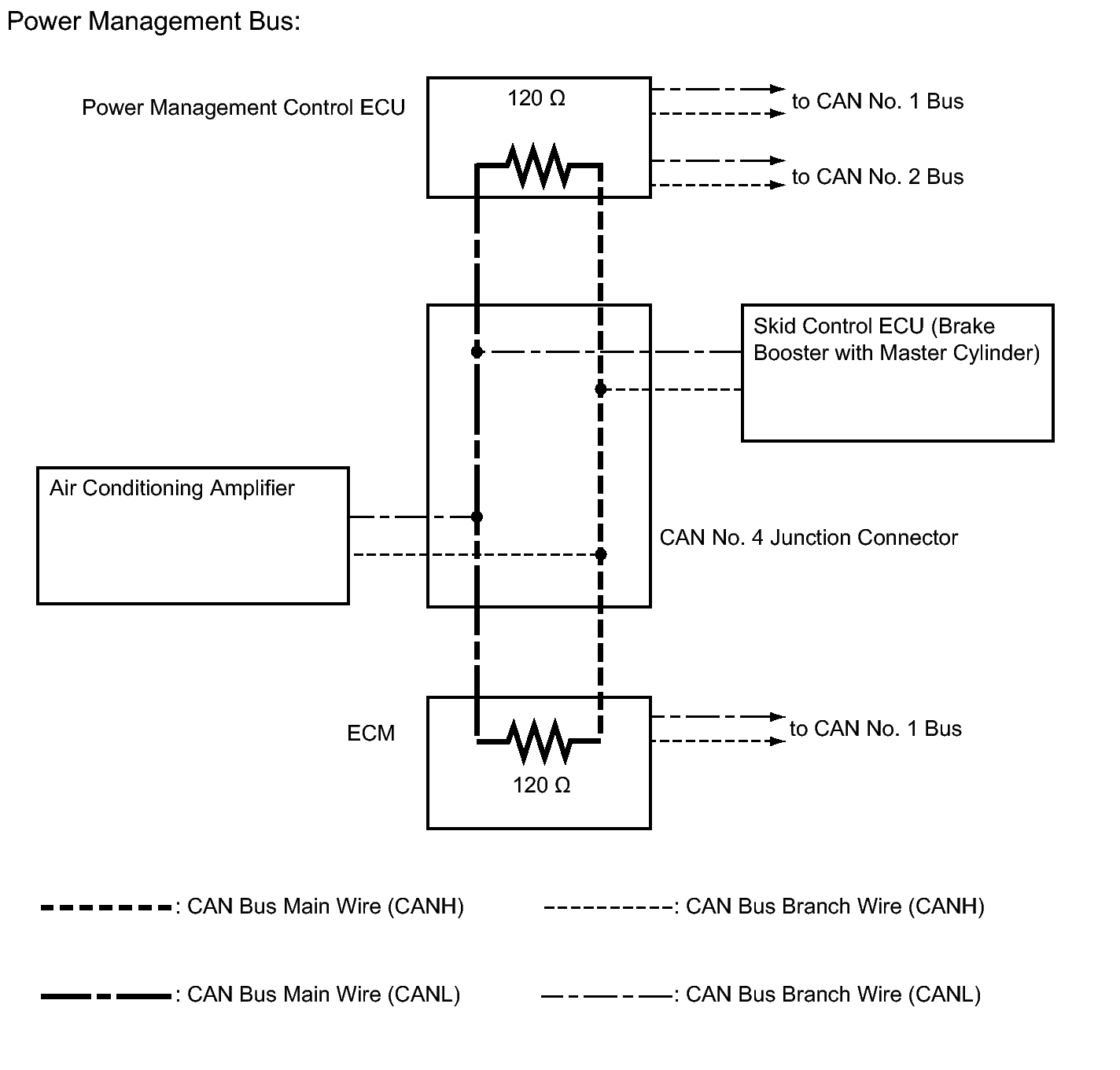

  3. POWER MANAGEMENT BUS
    Fig 3: Identifying Power Management Bus System Diagram
    GTY230007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

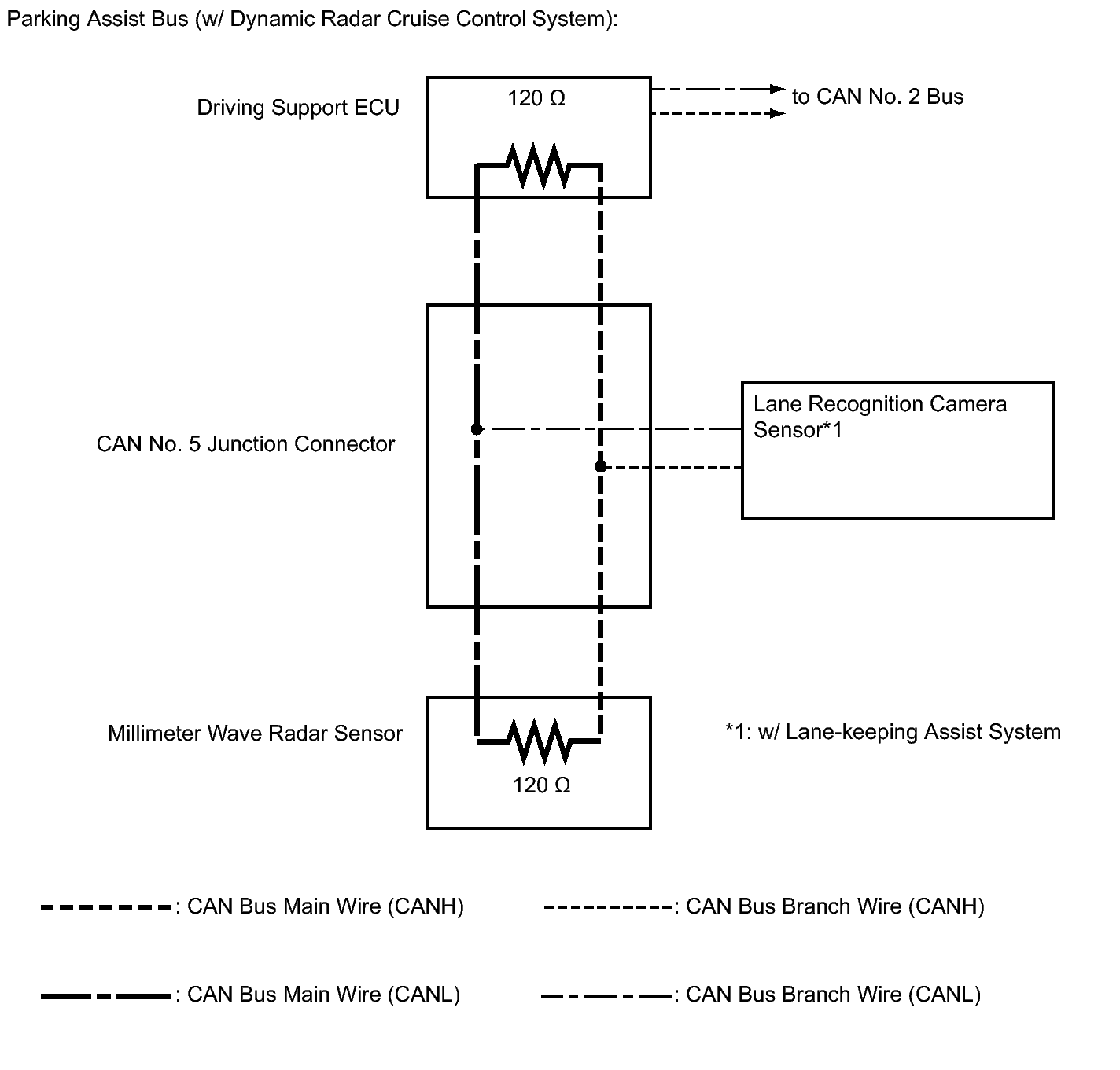

  4. PARKING ASSIST BUS
    Fig 4: Identifying Parking Assist Bus System Diagram
    GTY325318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
