Service Plug Grip: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.

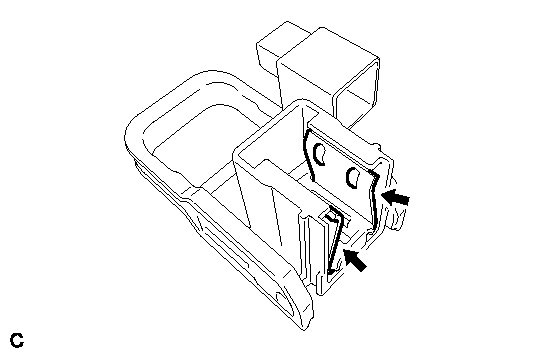

- INSPECT SERVICE PLUG GRIP
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| Service plug grip |
Always |
Below 1 Ω |
If the result is not as specified, replace the service plug grip.
