Power Window Master Switch: Installation: Installation

  1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. Install the multiplex network master switch assembly with the 3 screws.

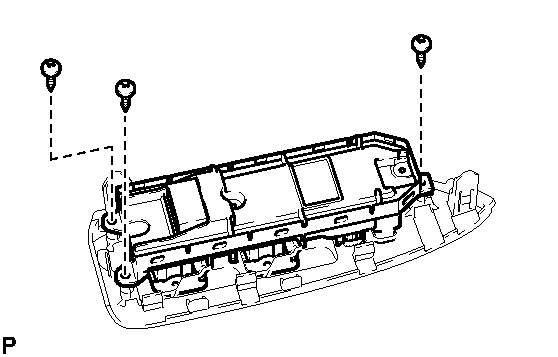

      Fig 1: Identifying Multiplex Network Master Switch Assembly & Screws
      GTY232183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL  . Refer to REASSEMBLY - Step 41
  3. INSTALL ASSIST GRIP COVER  . Refer to REASSEMBLY - Step 43
