Cruise Control Main Switch: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE STEERING PAD
Refer to REMOVAL
REMOVE CRUISE CONTROL MAIN SWITCH
1. Remove the 2 screws.

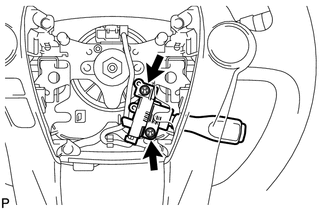

  Fig 1: Identifying Cruise Control Main Switch & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp and disconnect the connector.

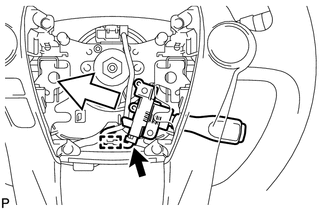

  Fig 2: Identifying Clamp & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the cruise control main switch.
