Driving Support Ecu: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL DRIVING SUPPORT ECU

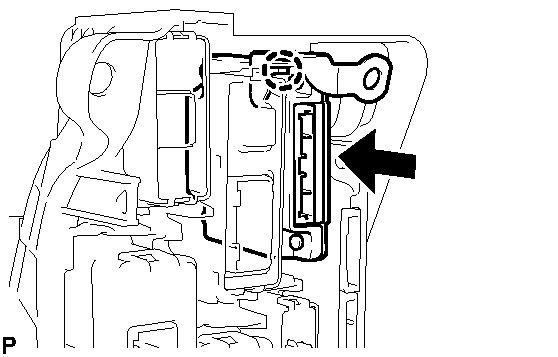

- Engage the claw to install the driving support ECU.
- INSTALL ECU INTEGRATION BOX RH . Refer to INSTALLATION - Step 2
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 12
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 13
- CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL REAR NO. 3 FLOOR BOARD UPPER PLATE . Refer to INSTALLATION - Step 3
- INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 4
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
