INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
1. Tighten the 5 bolts on the millimeter wave radar sensor assembly.

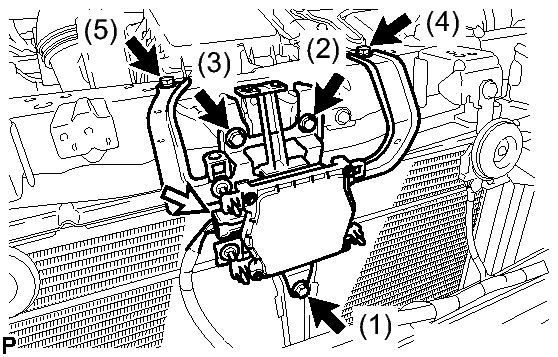

  Fig 1: Locating Millimeter Wave Radar Sensor Assembly, Connector & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.2 N*m (3 kgf*cm, 55 in.*lbf)

  HINT:

  Tighten the bolts in the order indicated in the illustration.
2. Connect the connector.
INSTALL FRONT BUMPER ASSEMBLY . Refer to INSTALLATION - Step 1
ADD WASHER FLUID (w/ Headlight Cleaner System) . Refer to INSTALLATION - Step 2
ADJUST FOG LIGHT AIMING
Refer to ADJUSTMENT
ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY See step 1
INSTALL RADIATOR SUPPORT OPENING COVER . Refer to INSTALLATION - Step 2
