Front Wiper Rubber: Replacement: Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WIPER BLADE
1. Remove the holder of the front wiper blade as shown in the illustration.

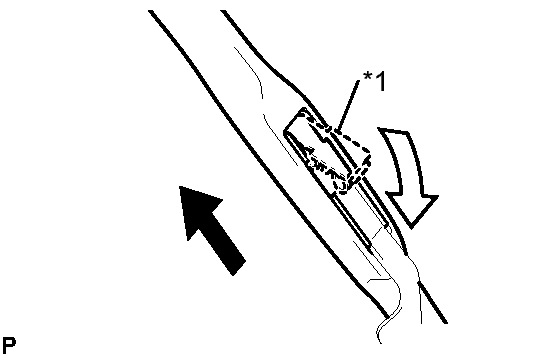

  Fig 1: Removing Front Wiper Blade Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Holder
2. Remove the front wiper blade from the front wiper arm as shown in the illustration.
  NOTE:
  Do not lower the front wiper arm with the front wiper blade removed. The arm tip may damage the windshield surface.
REMOVE WIPER RUBBER
1. Remove the wiper rubber with the wiper rubber backing plates from the front wiper blade.

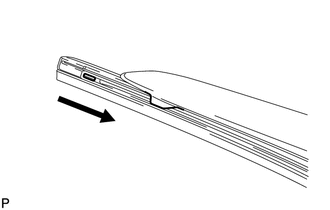

  Fig 2: Removing Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 wiper rubber backing plates from the wiper rubber.

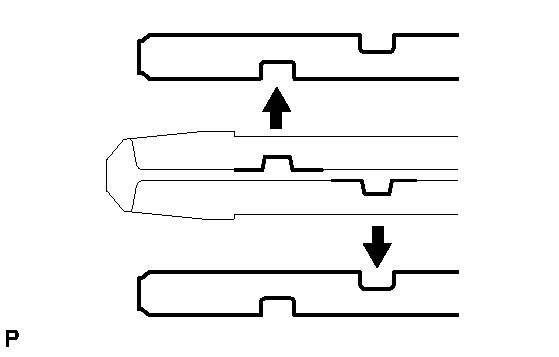

  Fig 3: Identifying Wiper Rubber & Wiper Rubber Backing Plates
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIPER RUBBER
1. Install the 2 wiper rubber backing plates to the wiper rubber.

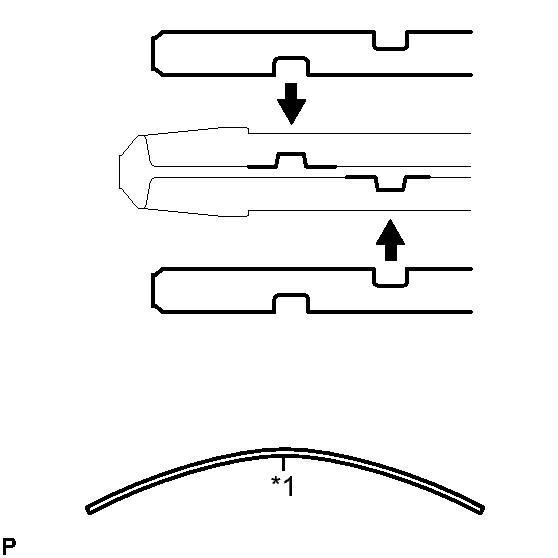

  Fig 4: Installing Wiper Rubber Backing Plates To Wiper Rubber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Wiper rubber Backing plate
  NOTE:
  - Align the protrusions on the wiper rubber and the notches of the backing plates.
  - Align the curved lines of the backing plates and the glass.
2. Install the wiper rubber to the front wiper blade with the top of the rubber (curved end) facing the axis of the wiper arm.

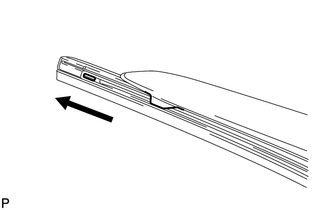

  Fig 5: Installing Wiper Rubber Into The Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Push the wiper rubber into the wiper blade strongly to engage them securely.
INSTALL FRONT WIPER BLADE
1. Install the front wiper blade as shown in the illustration.

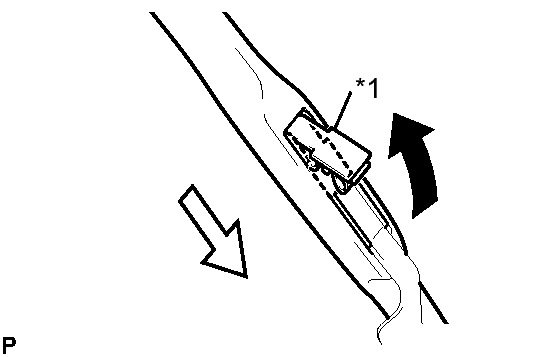

  Fig 6: Installing Front Wiper Blade
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Holder
2. Install the holder of the front wiper blade as shown in the illustration.
