Curtain Shield Airbag Assembly: Installation: Installation

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
   1. Check that the power switch is off.
   2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   3. Temporarily install the curtain shield airbag assembly with the 5 hooks.

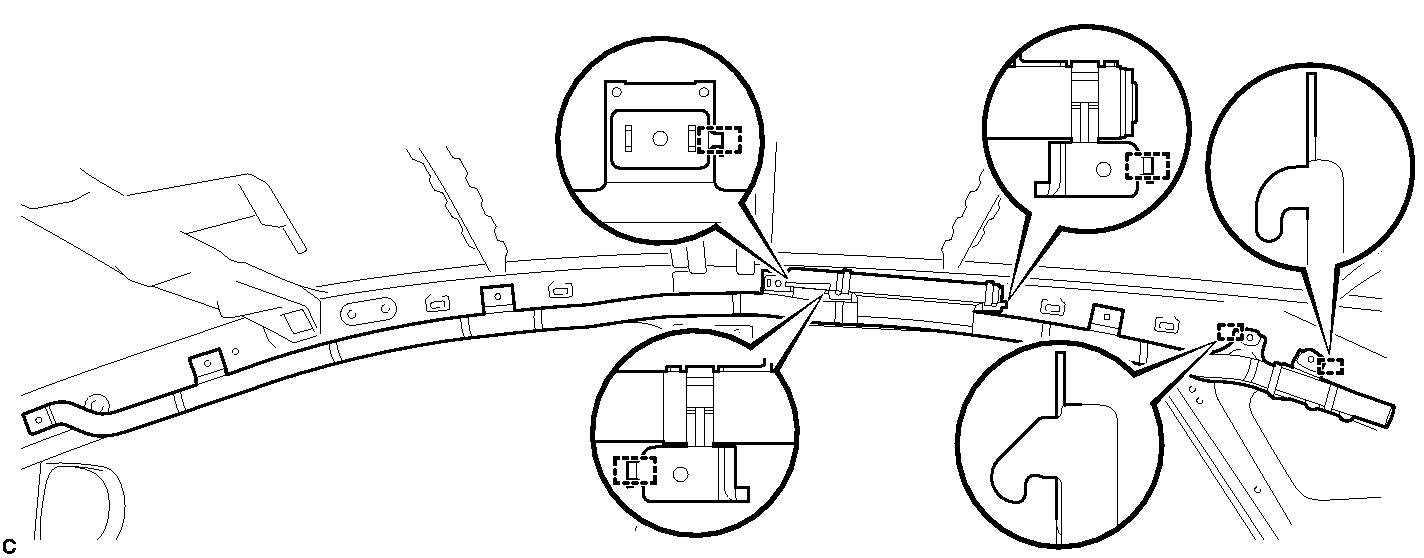

      Fig 1: Locating Curtain Shield Airbag Hooks And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not twist the curtain shield airbag assembly when installing it.

   4. Install the curtain shield airbag assembly to the body panel with 4 new clips and 4 new spacers.

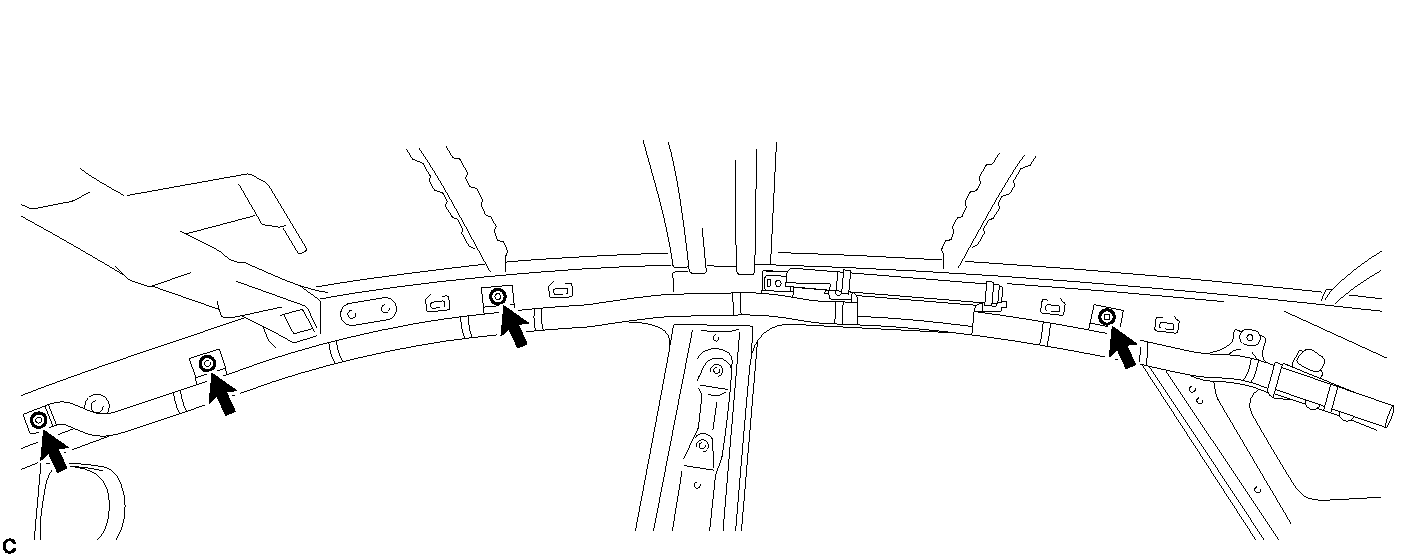

      Fig 2: Locating Curtain Shield Airbag Pins

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install 4 new pins as shown in the illustration.

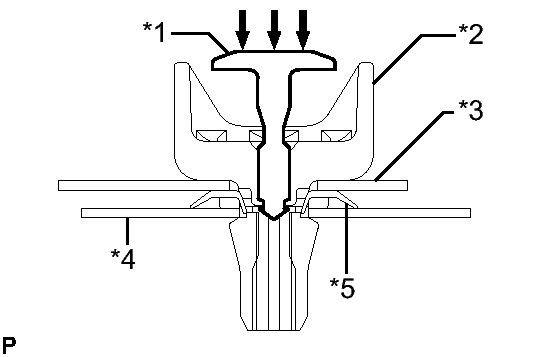

         Fig 3: Identifying Curtain Shield Airbag, Clips And Body

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         TEXT IN ILLUSTRATION



         *1	Pin
         *2	Clip
         *3	Airbag
         *4	Body
         *5	Spacer

         NOTE:

         Make sure that the pins of the clips are pushed in firmly.

   5. Install the 5 bolts.

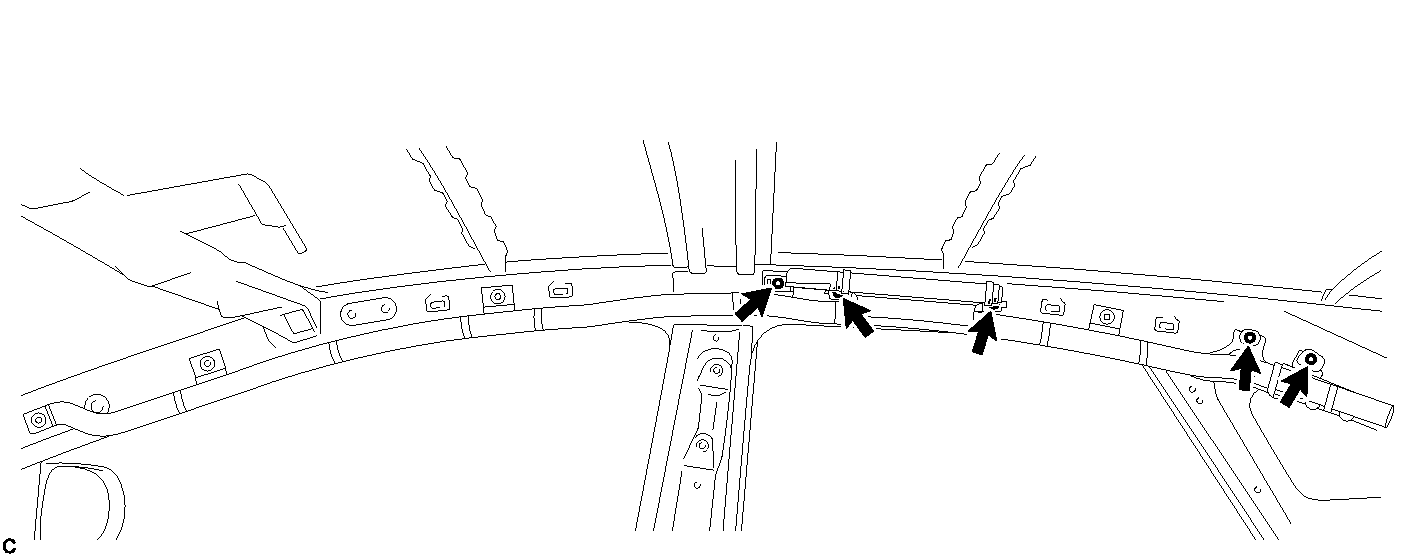

      Fig 4: Locating Curtain Shield Airbag Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

   6. Connect the curtain shield airbag connector.

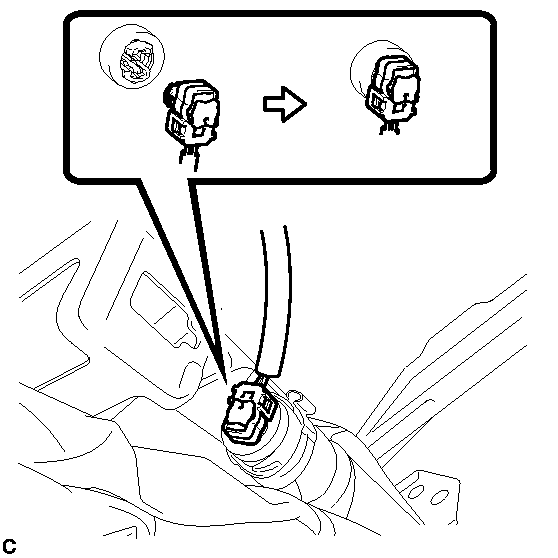

      Fig 5: Identifying Curtain Shield Airbag Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

   7. Push in the lock to install the airbag connector.
2. INSTALL ROOF HEADLINING ASSEMBLY

   HINT:

   Refer to the procedure from Install Roof Headlining Assembly. Refer to INSTALLATION .

3. PERFORM DIAGNOSTIC SYSTEM CHECK
   1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
