Front Passenger Airbag Assembly: Installation: Installation

1. Connect the 2 airbag connectors to the front passenger airbag assembly.

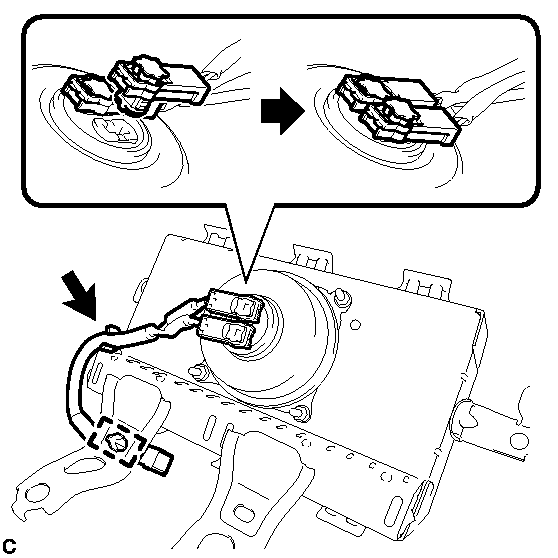

   Fig 1: Identifying No. 3 Instrument Panel Wire, Connectors & Front Passenger Airbag Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • When connecting any airbag connector, take care not to damage the airbag wire harness.
   • Be sure to only connect the connectors to each corresponding color.
2. Push in the 2 locks to install the 2 airbag connectors.
3. Connect the No. 3 instrument panel wire to the front passenger airbag assembly clamp.
4. Engage the clamp to install the No. 3 instrument panel wire to the front passenger airbag assembly.

1. Engage the 3 hooks.

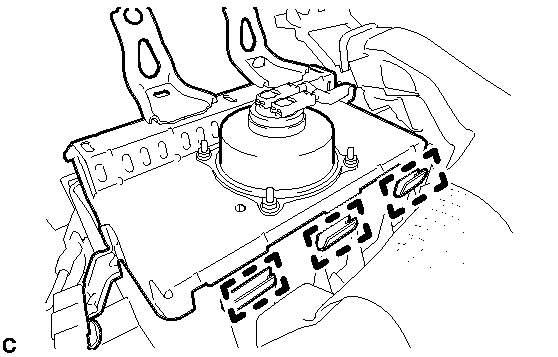

   Fig 2: Identifying Front Passenger Airbag Assembly & Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the front passenger airbag assembly to engage the 3 hooks.

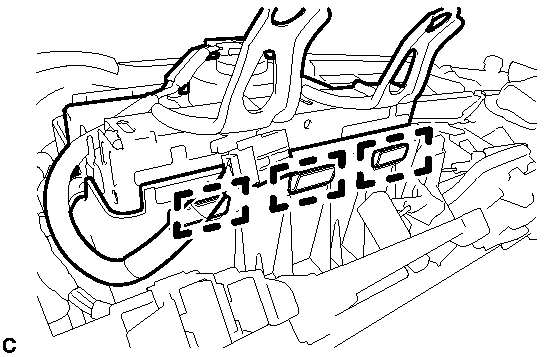

   Fig 3: Identifying Passenger Airbag Assembly & Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws to install the front passenger airbag assembly.
   Fig 4: Locating Front Passenger Airbag Screws And Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 clamps to the front passenger airbag assembly.

1. Check that the power switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. Connect the connector.

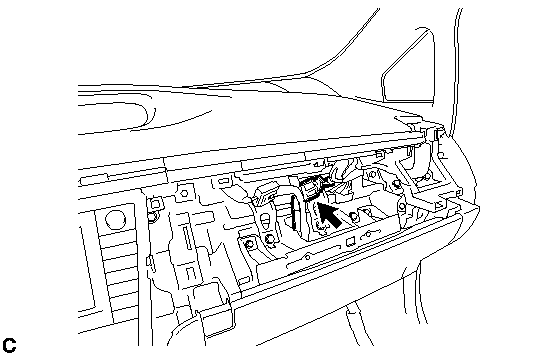

   Fig 5: Identifying No. 3 Instrument Panel Wire & Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to the procedure from Install Center Instrument Cluster Finish Panel Garnish. Refer to INSTALLATION - Step 3 .

1. Perform a diagnostic system check. Refer to DTC CHECK / CLEAR .
