Control Pilot Signal Circuit: Wiring Diagram

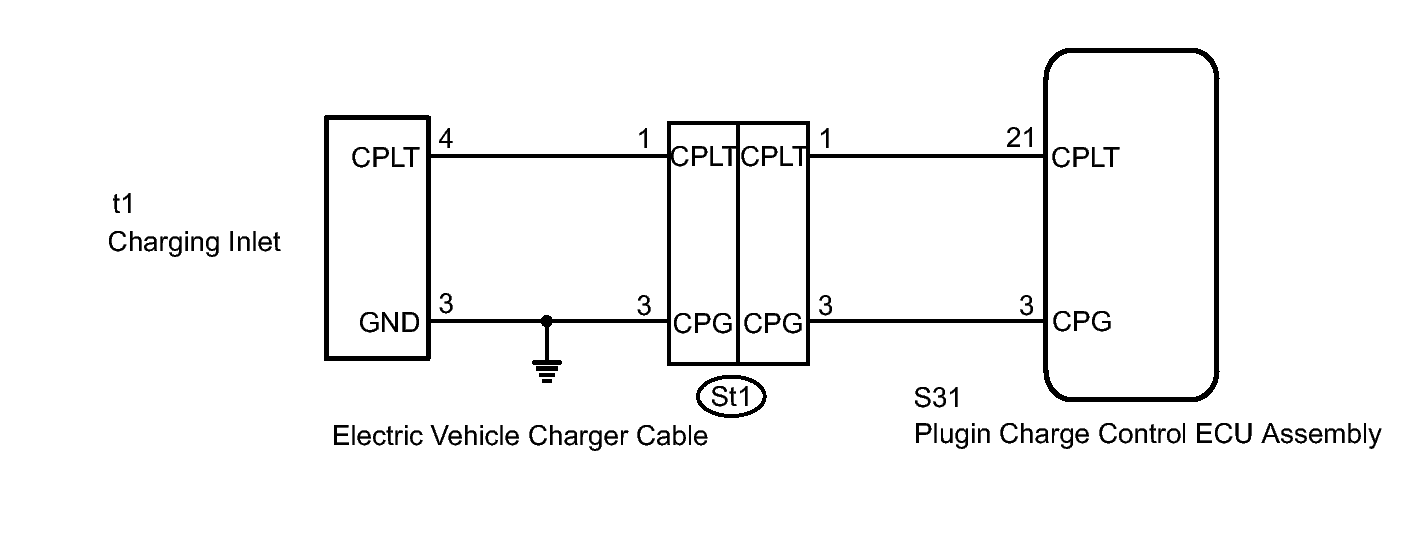

Fig 1: Identifying Control Pilot Signal Circuit Diagram
GTY342466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
