Fuel Injector Circuit: Procedure

  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF FUEL INJECTOR ASSEMBLY)
    1. Disconnect the fuel injector assembly connectors.

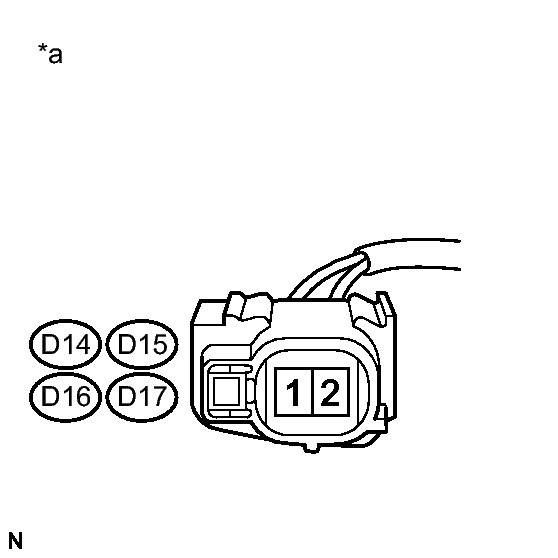

      Fig 1: Checking Terminal Voltage (Power Source Of Fuel Injector Assembly) With Connector End View
      GTY331310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      D14-1 - Body ground Power switch on (IG) 11 to 14 V
      D15-1 - Body ground Power switch on (IG) 11 to 14 V
      D16-1 - Body ground Power switch on (IG) 11 to 14 V
      D17-1 - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Fuel Injector Assembly)

    NG → See step   4

    OK: Go to next step

  2. INSPECT FUEL INJECTOR ASSEMBLY
    1. Inspect the fuel injector assembly. Refer to INSPECTION .

    NG → See step   5

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (FUEL INJECTOR ASSEMBLY - ECM)
    1. Disconnect the fuel injector assembly connectors.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D14-2 - D28-85 (#10) Always Below 1 Ω
      D15-2 - D28-84 (#20) Always Below 1 Ω
      D16-2 - D28-83 (#30) Always Below 1 Ω
      D17-2 - D28-82 (#40) Always Below 1 Ω
      D14-2 or D28-85 (#10) - Body ground Always 10 Ω or higher
      D15-2 or D28-84 (#20) - Body ground Always 10 Ω or higher
      D16-2 or D28-83 (#30) - Body ground Always 10 Ω or higher
      D17-2 or D28-82 (#40) - Body ground Always 10 Ω or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   6

  4. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (IG2 RELAY) - FUEL INJECTOR ASSEMBLY)
    1. Disconnect the fuel injector assembly connectors.
    2. Remove the No. 2 integration relay (IG2 relay) from the engine room relay block and junction block assembly.
    3. Disconnect the No. 2 integration relay connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D14-1 - 1A-4 Always Below 1 Ω
      D15-1 - 1A-4 Always Below 1 Ω
      D16-1 - 1A-4 Always Below 1 Ω
      D17-1 - 1A-4 Always Below 1 Ω
      D14-1 or 1A-4 - Body ground Always 10 kΩ or higher
      D15-1 or 1A-4 - Body ground Always 10 kΩ or higher
      D16-1 or 1A-4 - Body ground Always 10 kΩ or higher
      D17-1 or 1A-4 - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   7

  5. REPLACE FUEL INJECTOR ASSEMBLY. Refer to  REMOVAL
  6. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  7. CHECK ECM POWER SOURCE CIRCUIT. Refer to  ECM Power Source Circuit
