VC Output Circuit: Wiring Diagram

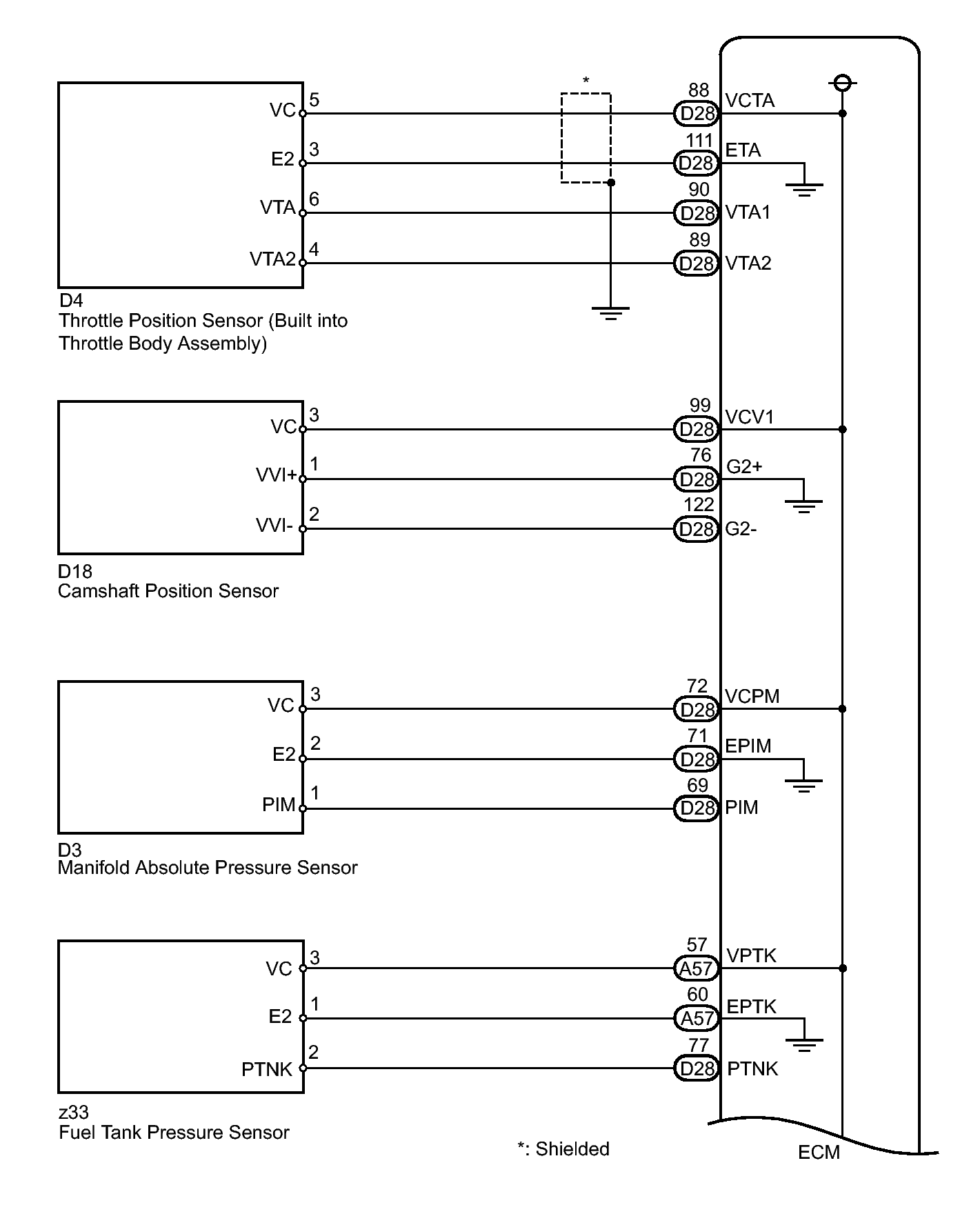

Fig 1: Identifying VC Output Circuit Diagram (1 Of 2)
GTY327781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

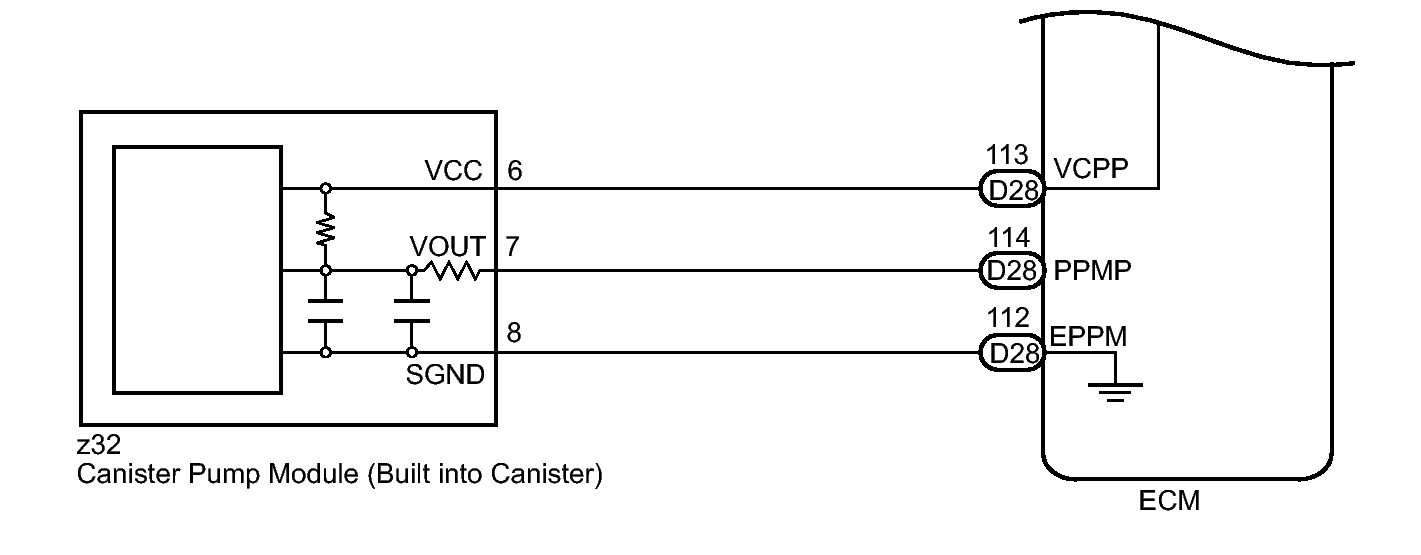

Fig 2: Identifying VC Output Circuit Diagram (2 Of 2)
GTY341392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
