System Diagram

WARNING: This page is about a different variant/trim than selected.

except Canada

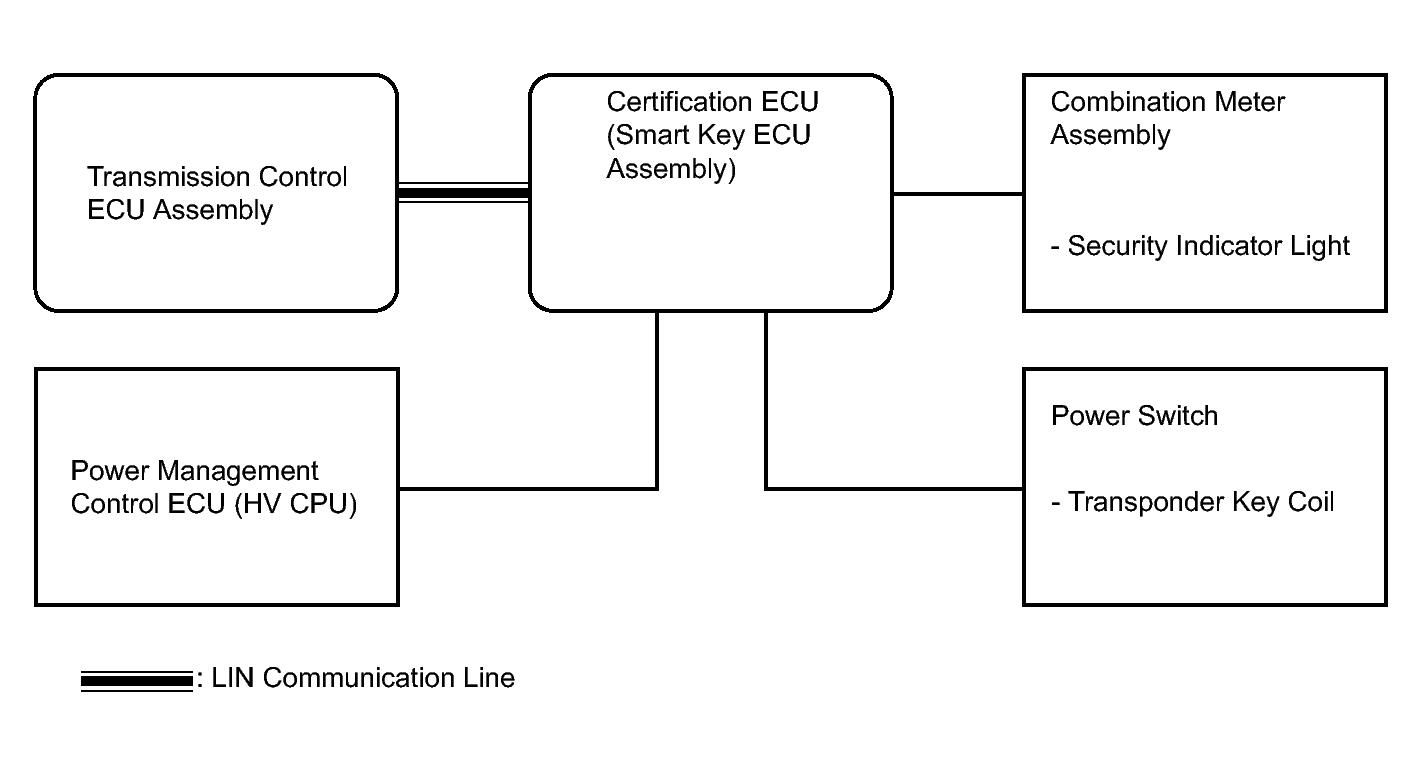

Fig 1: Identifying Engine Immobilizer System (W/O Automatic Light Control) System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitting ECU (Transmitter)	Receiving ECU (Receiver)	Signal	Communication Method
Certification ECU (Smart key ECU assembly)	Transmission control ECU assembly	L code registration mode signal	LIN
Transmission control ECU assembly	Certification ECU (Smart key ECU assembly)	L code registration condition signal	LIN
		L code certification condition signal
		Engine start condition signal

for Canada

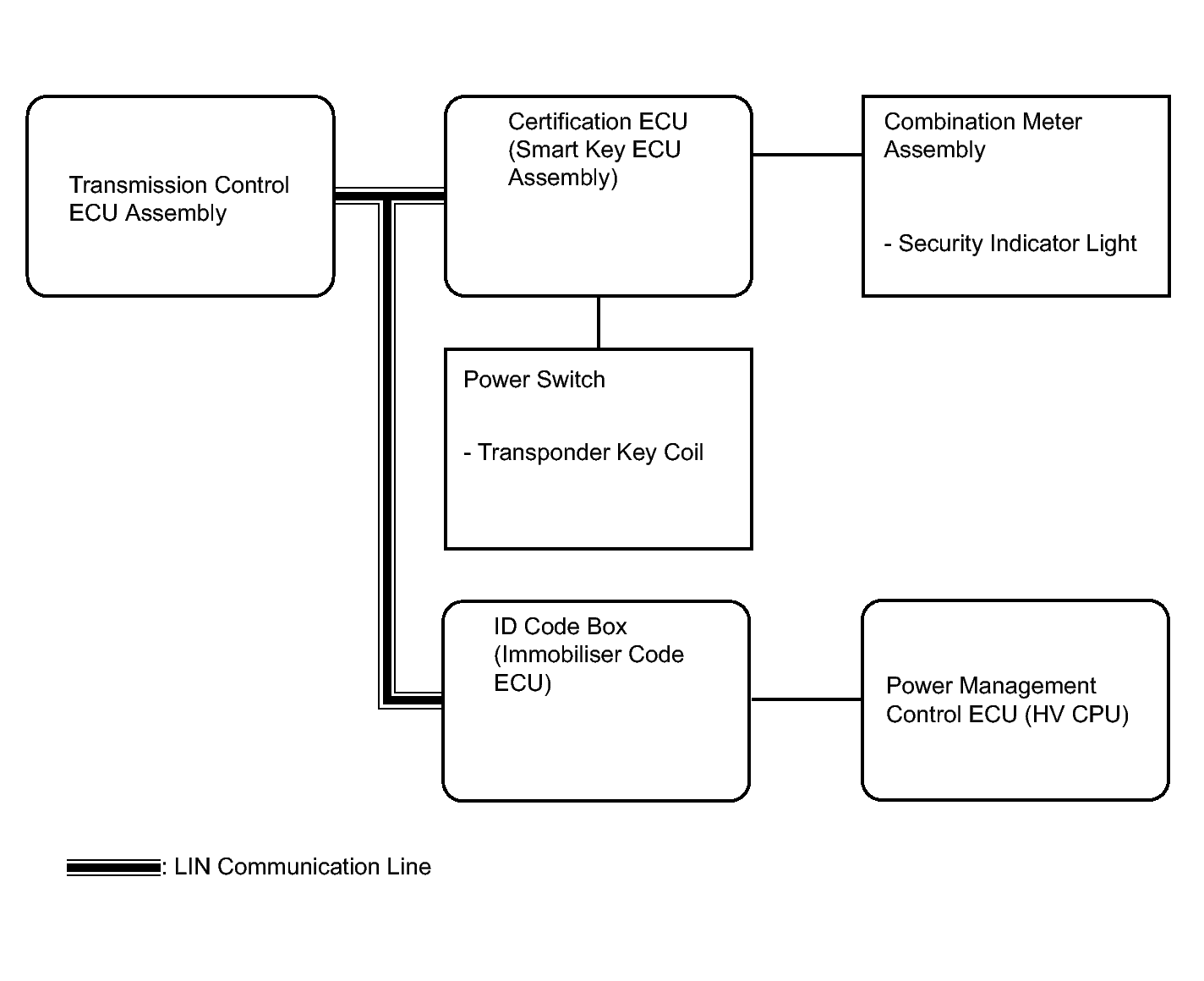

Fig 2: Identifying Engine Immobilizer System (W/ Automatic Light Control) System Diagram

COMMUNICATION TABLE

Transmitting ECU (Transmitter)	Receiving ECU (Receiver)	Signal	Communication Method
Certification ECU (Smart key ECU assembly)	ID code box (Immobilizer code ECU)	3 bit code transmit request signal	LIN
		S code registration mode signal
		S code certification condition signal
	Transmission control ECU assembly	L code registration mode signal	LIN
ID code box (Immobilizer code ECU)	Certification ECU (Smart key ECU assembly)	Engine start permission receive condition signal	LIN
		3 bit code transmit request receive condition signal
		S code certification result signal
		L code certification result signal
		S code registration mode signal
		S code registration condition signal
	Transmission control ECU assembly	L code registration condition signal	LIN
	Certification ECU (Smart key ECU assembly) Transmission control ECU assembly	L code registration mode signal	LIN
Transmission control ECU assembly	Certification ECU (Smart key ECU assembly)	L code registration condition signal	LIN
	Certification ECU (Smart key ECU assembly)	Engine start condition signal	LIN
	ID code box (Immobilizer code ECU)	L code certification condition signal	LIN
