Air Conditioning Pressure Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL AIR CONDITIONING PRESSURE SENSOR
1. Sufficiently apply compressor oil to a new air conditioning pressure sensor.

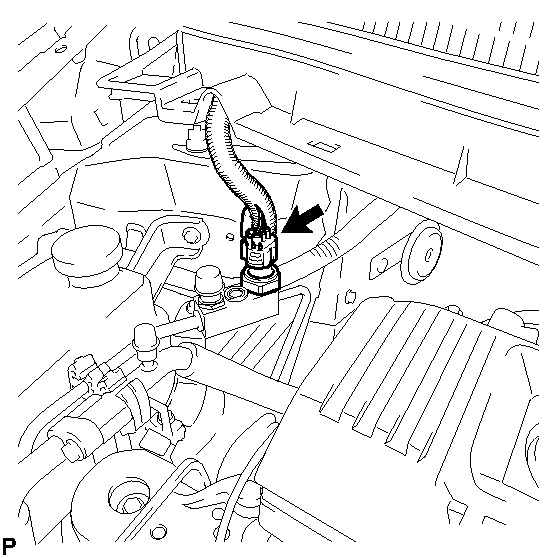

  Fig 1: Identifying Air Conditioning Pressure Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Compressor oil

  ND-OIL 11 or equivalent
  NOTE:
  - Keep the O-ring and O-ring fitting surfaces clean from dirt or any foreign objects.
  - Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
2. Install the new air conditioning pressure sensor.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)
  NOTE:
  - Do not deform the piping.
  - Make sure to confirm that the piping does not disengage from the plastic clamp.
3. Connect the connector.
CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
CHARGE WITH REFRIGERANT See step 2
WARM UP COMPRESSOR See step 3
INSPECT FOR REFRIGERANT LEAK See step 4
