Blower Unit: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL BLOWER ASSEMBLY
    1. Engage the guide.
    2. Install the blower assembly with the 3 screws.
    3. Connect the connector.
    4. Engage each clamps.
    5. Install the screw and connect the quick heater connector.

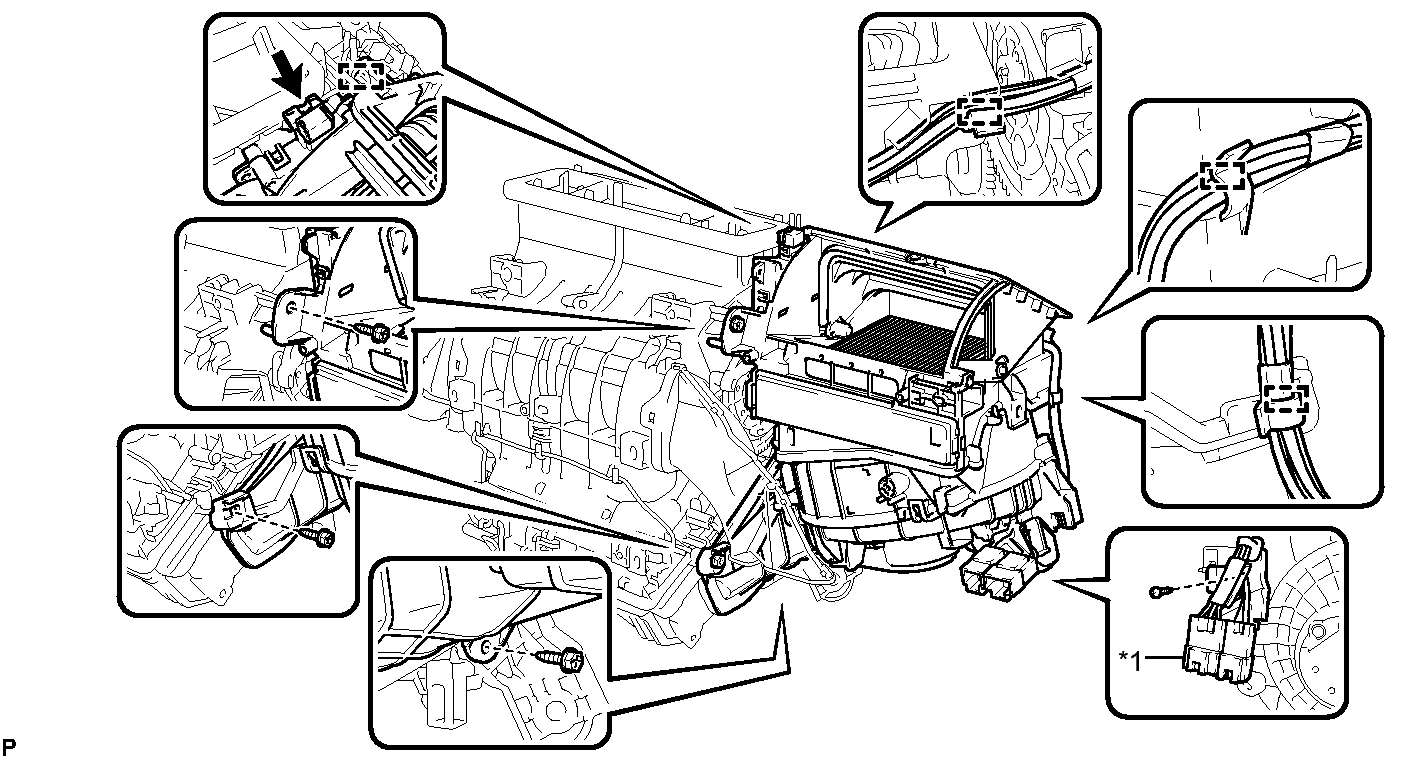

      Fig 1: Identifying Quick Heater Connector Screw
      GTY217144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Quick Heater Connector - -
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

    HINT:

    Refer to the procedure for Install Air Conditioning Unit Assembly. Refer to INSTALLATION .
