FOOTWELL Light: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)
    1. Engage the 2 claws and install the No. 1 interior illumination light assembly.

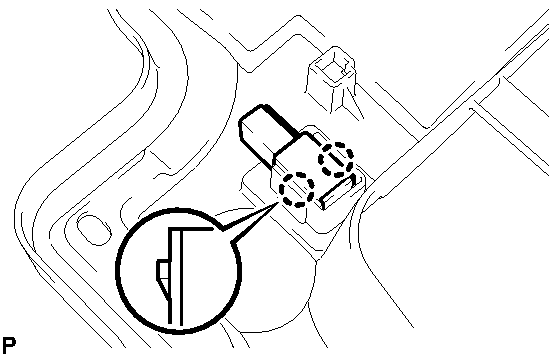

      Fig 1: Locating Interior Illumination Light Claws
      GTY214160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Driver Side)  . Refer to INSTALLATION - Step 17
  3. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)
    1. Engage the 2 claws and install the No. 1 interior illumination light assembly.

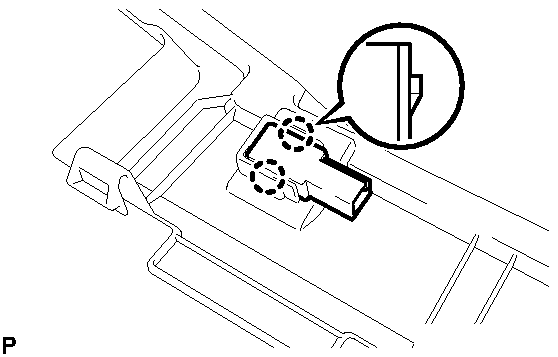

      Fig 2: Locating Interior Illumination Light Claws
      GTY232271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)  . Refer to INSTALLATION - Step 15
