Charging Indicator Circuit: Wiring Diagram

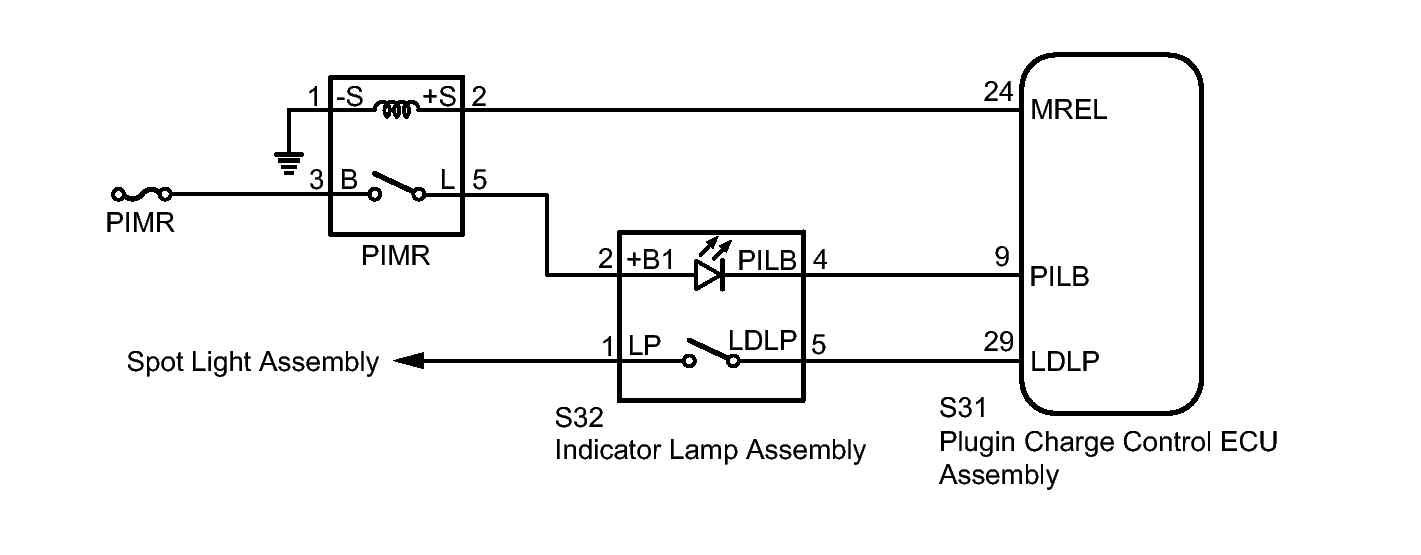

Fig 1: Identifying Charging Indicator Circuit Diagram
GTY332294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
