ECU Power Source Circuit: Procedure

  1. CHECK PLUGIN CHARGE CONTROL ECU ASSEMBLY (IG2 TERMINAL VOLTAGE)
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.
      Fig 1: Checking S31 Connector Terminals
      GTY341214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S31-10 (IG2) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Plugin Charge Control ECU Assembly)
    3. Turn the power switch off.

    NG → See step   3

    OK: Go to next step

  2. CHECK PLUGIN CHARGE CONTROL ECU ASSEMBLY (+B1 TERMINAL VOLTAGE)
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.

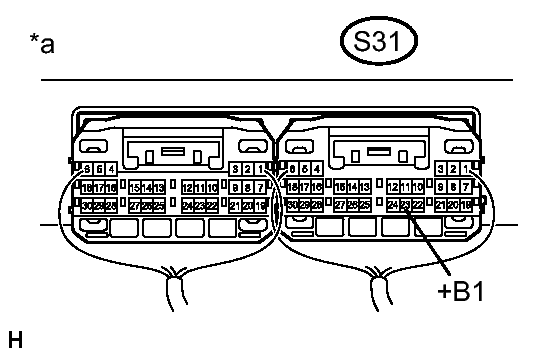

      Fig 2: Checking S31 Connector Terminals
      GTY341210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S31-23 (+B1) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Plugin Charge Control ECU Assembly)
    3. Turn the power switch off.

    NG → See step   4

    OK → See step   16

  3. CHECK HARNESS AND CONNECTOR (PLUGIN CHARGE CONTROL ECU ASSEMBLY - IG2 RELAY)
    1. Remove the No. 2 integration relay from the engine room relay block and junction block assembly.
    2. Disconnect connector S31 from the plugin charge control ECU assembly.
    3. Measure the resistance according to the value(s) in the table below.

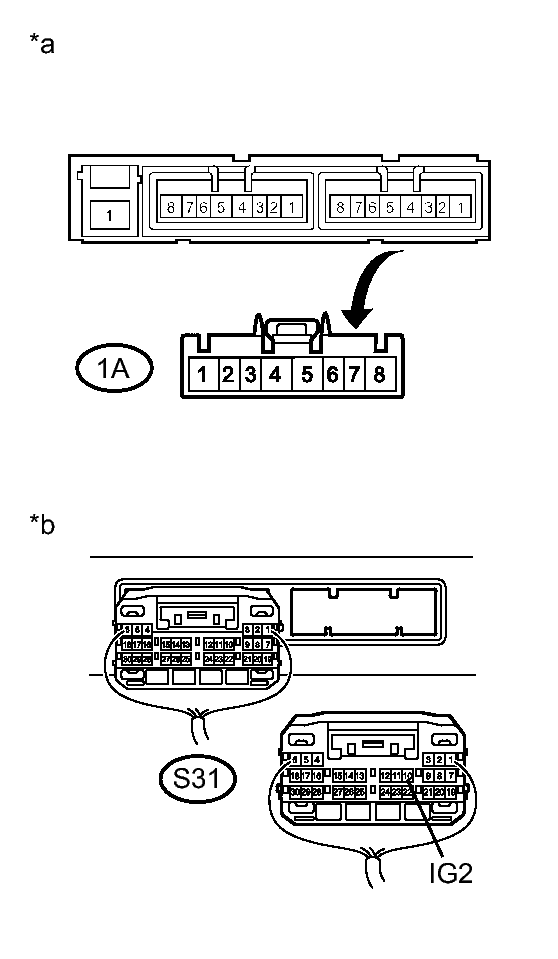

      Fig 3: Checking 1A & S31 Connector Terminals
      GTY326581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1A-4 - S31-10 (IG2) Power switch off Below 1 Ω
      1A-4 or S31-10 (IG2) - Body ground and other terminals Power switch off 10 kΩ or higher
      *a Front view of wire harness connector
      (to No. 2 Integration Relay)
      *b Rear view of wire harness connector
      (to Plugin Charge Control ECU Assembly)
    4. Install the No. 2 integration relay.
    5. Connect the plugin charge control ECU assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   19

  4. CHECK HARNESS AND CONNECTOR (PLUGIN CHARGE CONTROL ECU ASSEMBLY - BODY GROUND)
    1. Disconnect connector S31 from the plugin charge control ECU assembly.
    2. Measure the resistance according to the value(s) in the table below.

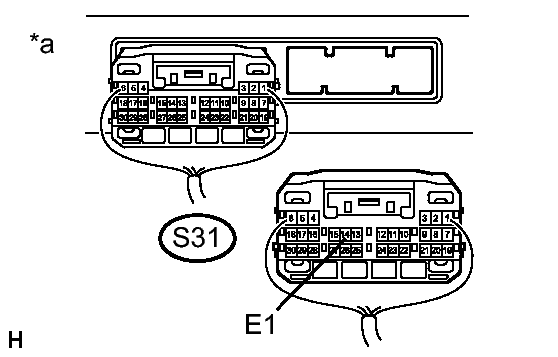

      Fig 4: Checking S31 Connector Terminals
      GTY326271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      S31-14 (E1) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Plugin Charge Control ECU Assembly)
    3. Connect the plugin charge control ECU assembly connector.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK PLUGIN CHARGE CONTROL ECU ASSEMBLY (MREL TERMINAL VOLTAGE)
    1. Turn the power switch on (IG).
    2. Measure the voltage according to the value(s) in the table below.
      Fig 5: Checking S31 Connector Terminals
      GTY341209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S31-24 (MREL) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Plugin Charge Control ECU Assembly)
    3. Turn the power switch off.

    NG → See step   18

    OK: Go to next step

  6. CHECK FUSE (PIMR)
    1. Remove the PIMR fuse from the engine room relay block and junction block assembly.
      Fig 6: Identifying PIMR Fuse
      GTY334185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block and Junction Block Assembly
      *2 PIMR Fuse
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      PIMR fuse terminals Always Below 1 Ω
    3. Install the PIMR fuse.

    NG → See step   12

    OK: Go to next step

  7. INSPECT RELAY (PIMR)
    1. Remove the PIMR relay from the relay block assembly.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 7: Inspecting Relay
      GTY336632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 - 5 No auxiliary battery voltage is applied across terminals 1 and 2 10 kΩ or higher
      Auxiliary battery voltage is applied across terminals 1 and 2 Below 1 Ω
    3. Install the PIMR relay.

    NG → REPLACE RELAY (PIMR)

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (PIMR RELAY - PIMR FUSE)
    1. Remove the PIMR fuse from the engine room relay block and junction block assembly.
      Fig 8: Identifying PIMR Fuse
      GTY334185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block and Junction Block Assembly
      *2 PIMR Fuse
    2. Remove the PIMR relay from the relay block assembly.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 9: Identifying PIMR Fuse & Relay
      GTY324530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay) *2 Engine Room Relay Block and Junction Block Assembly
      *3 PIMR Fuse - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 (B) - 2 (PIMR fuse) Power switch off Below 1 Ω
    4. Install the PIMR relay.
    5. Install the PIMR fuse.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (PIMR RELAY - PLUGIN CHARGE CONTROL ECU ASSEMBLY)
    1. Remove the PIMR relay from the relay block assembly.
    2. Disconnect connector S31 from the plugin charge control ECU assembly.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 10: Checking PIMR Relay & S31 Connector Terminals
      GTY339324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay) - -
      *a Rear view of wire harness connector
      (to Plugin Charge Control ECU Assembly)      		 - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      5 (L) - S31-23 (+B1) Power switch off Below 1 Ω
    4. Connect the plugin charge control ECU assembly connector.
    5. Install the PIMR relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. CHECK HARNESS AND CONNECTOR (PIMR RELAY - PLUGIN CHARGE CONTROL ECU ASSEMBLY)
    1. Remove the PIMR relay from the relay block assembly.
    2. Disconnect connector S31 from the plugin charge control ECU assembly.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 11: Checking PIMR Relay & S31 Connector Terminals
      GTY339323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay) - -
      *a Rear view of wire harness connector
      (to Plugin Charge Control ECU Assembly)      		 - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (+S) - S31-24 (MREL) Power switch off Below 1 Ω
      2 (+S) or S31-24 (MREL) - Body ground and other terminals Power switch off 10 kΩ or higher
    4. Connect the plugin charge control ECU assembly connector.
    5. Install the PIMR relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  11. CHECK HARNESS AND CONNECTOR (PIMR RELAY - BODY GROUND)
    1. Remove the PIMR relay from the relay block assembly.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 12: Checking PIMR Relay Terminal
      GTY343387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (-S) - Body ground Power switch off Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay)
    3. Install the PIMR relay.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   17

  12. CHECK HARNESS AND CONNECTOR (PIMR RELAY - PIMR FUSE)
    1. Remove the PIMR fuse from the engine room relay block and junction block assembly.
      Fig 13: Identifying PIMR Fuse
      GTY334185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Engine Room Relay Block and Junction Block Assembly
      *2 PIMR Fuse
    2. Remove the PIMR relay from the relay block assembly.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 14: Identifying PIMR Fuse & Relay
      GTY324530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay) *2 Engine Room Relay Block and Junction Block Assembly
      *3 PIMR Fuse - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 (B) or 2 (PIMR fuse) - Body ground and other terminals Power switch off 10 kΩ or higher
    4. Install the PIMR relay.
    5. Install the PIMR fuse.

    NG → See step   14

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (PIMR RELAY - PLUGIN CHARGE CONTROL ECU ASSEMBLY)
    1. Remove the PIMR relay from the relay block assembly.
    2. Disconnect connector S31 from the plugin charge control ECU assembly.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 15: Checking PIMR Relay & S31 Connector Terminals
      GTY339324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Relay Block Assembly (PIMR Relay) - -
      *a Rear view of wire harness connector
      (to Plugin Charge Control ECU Assembly)      		 - -

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      5 (L) or S31-23 (+B1) - Body ground and other terminals Power switch off 10 kΩ or higher
    4. Install the PIMR relay.
    5. Connect the plugin charge control ECU assembly connector.

    NG → See step   15

    OK → REPLACE FUSE (PIMR)

  14. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → REPLACE FUSE (PIMR)

  15. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → REPLACE FUSE (PIMR)

  16. GO TO PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  17. CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS
  18. REPLACE PLUGIN CHARGE CONTROL ECU ASSEMBLY. Refer to  COMPONENTS
  19. CHECK ECU POWER SOURCE CIRCUIT (HYBRID CONTROL SYSTEM). Refer to  ECU Power Source Circuit
