DTC P316C-846: On-Board Charger Unable to Start: Wiring Diagram

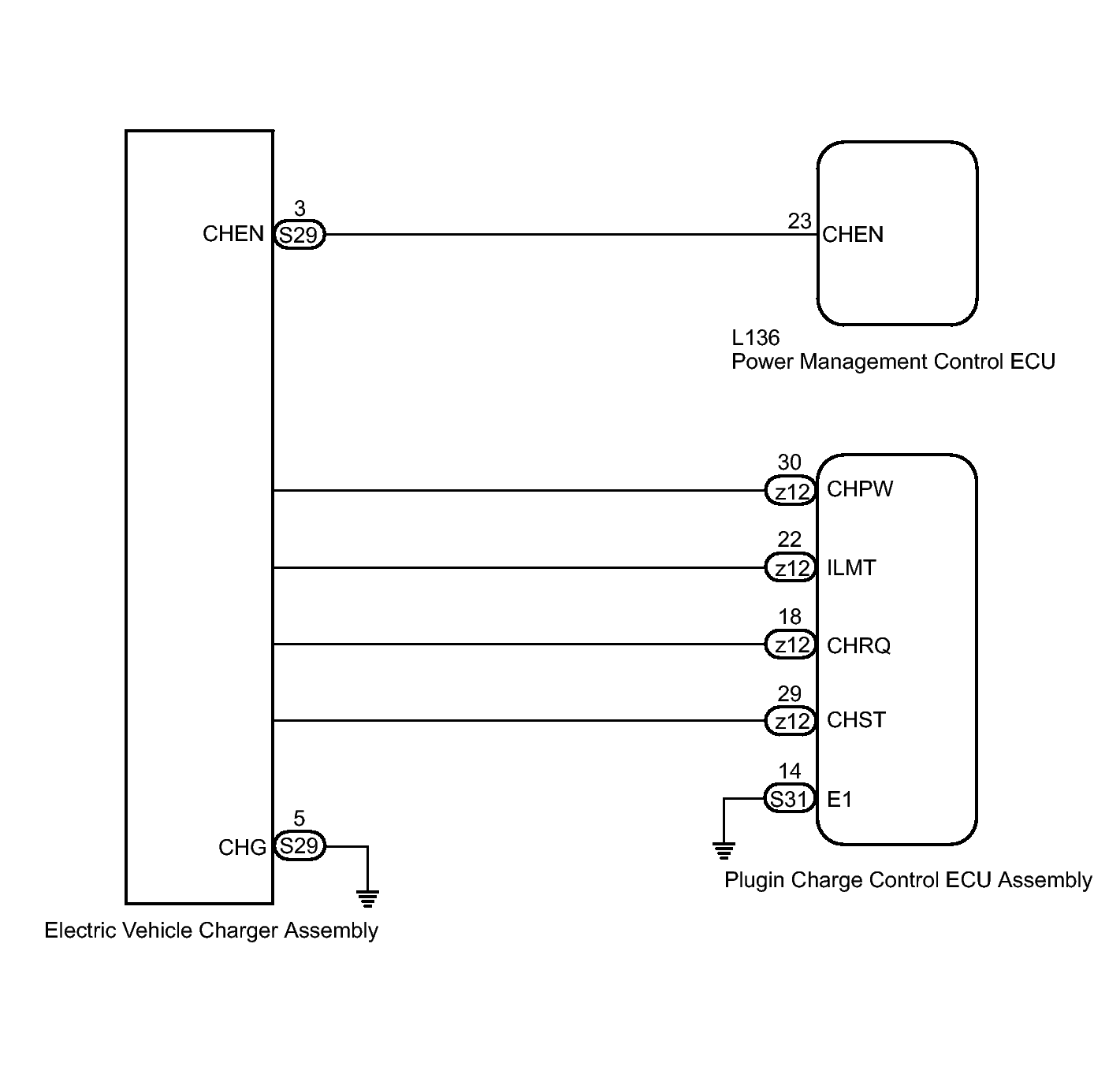

Fig 1: Identifying Electric Vehicle Charger Assembly Circuit Diagram
GTY340825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
