Catalyst Location

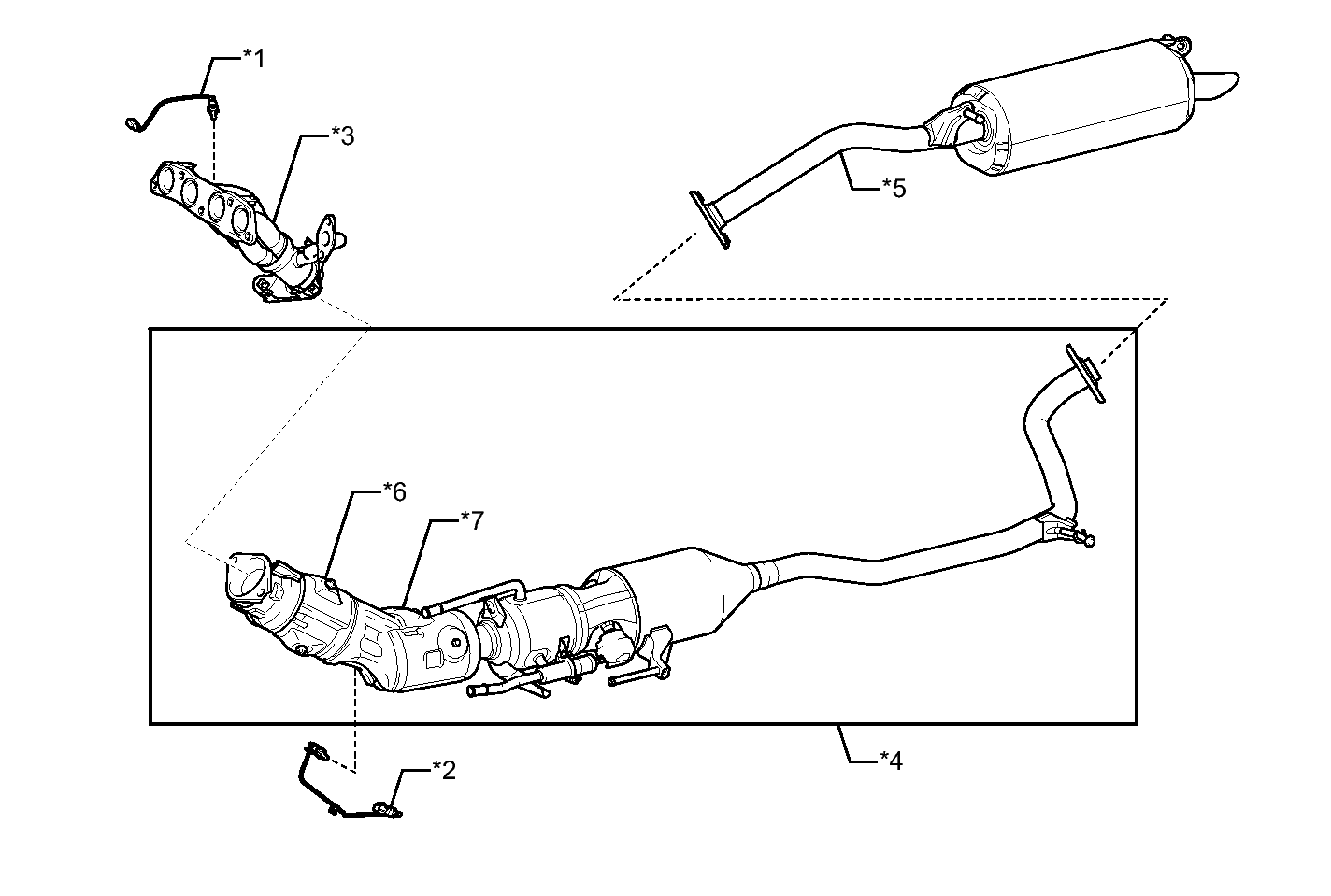

Fig 1: Identifying Exhaust System Component Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Air Fuel Ratio Sensor (Sensor 1)	*2	Heated Oxygen Sensor (Sensor 2)
*3	Exhaust Manifold Sub-assembly	*4	Front Exhaust Pipe Assembly
*5	Tail Exhaust Pipe Assembly	*6	TWC: Front Catalyst
*7	TWC: Rear Catalyst	-	-

NOTE:

When replacing the front exhaust pipe assembly (*4) in order to replace the three-way catalytic converter, it is not necessary to replace the heated oxygen sensor (*2).
