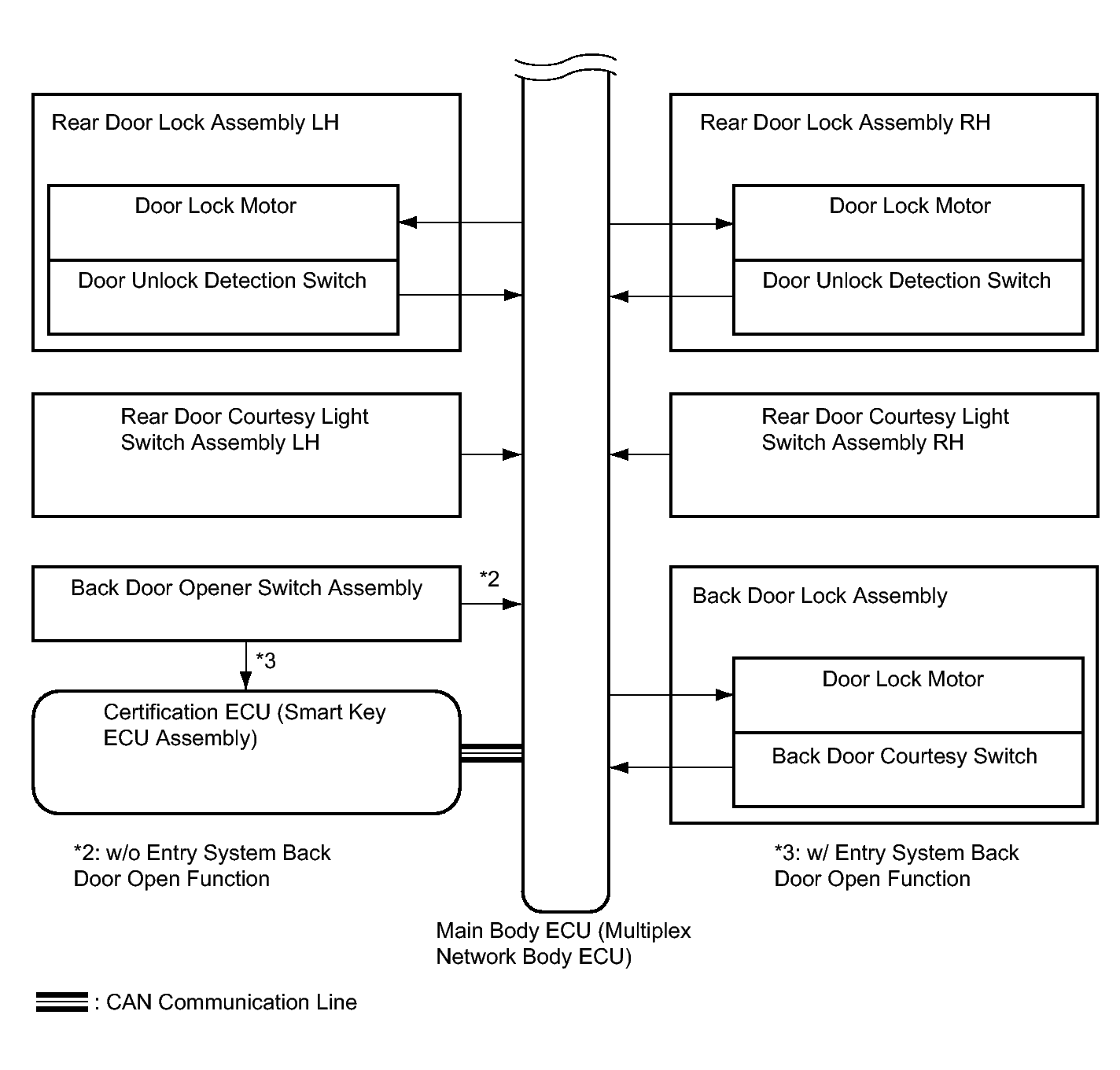

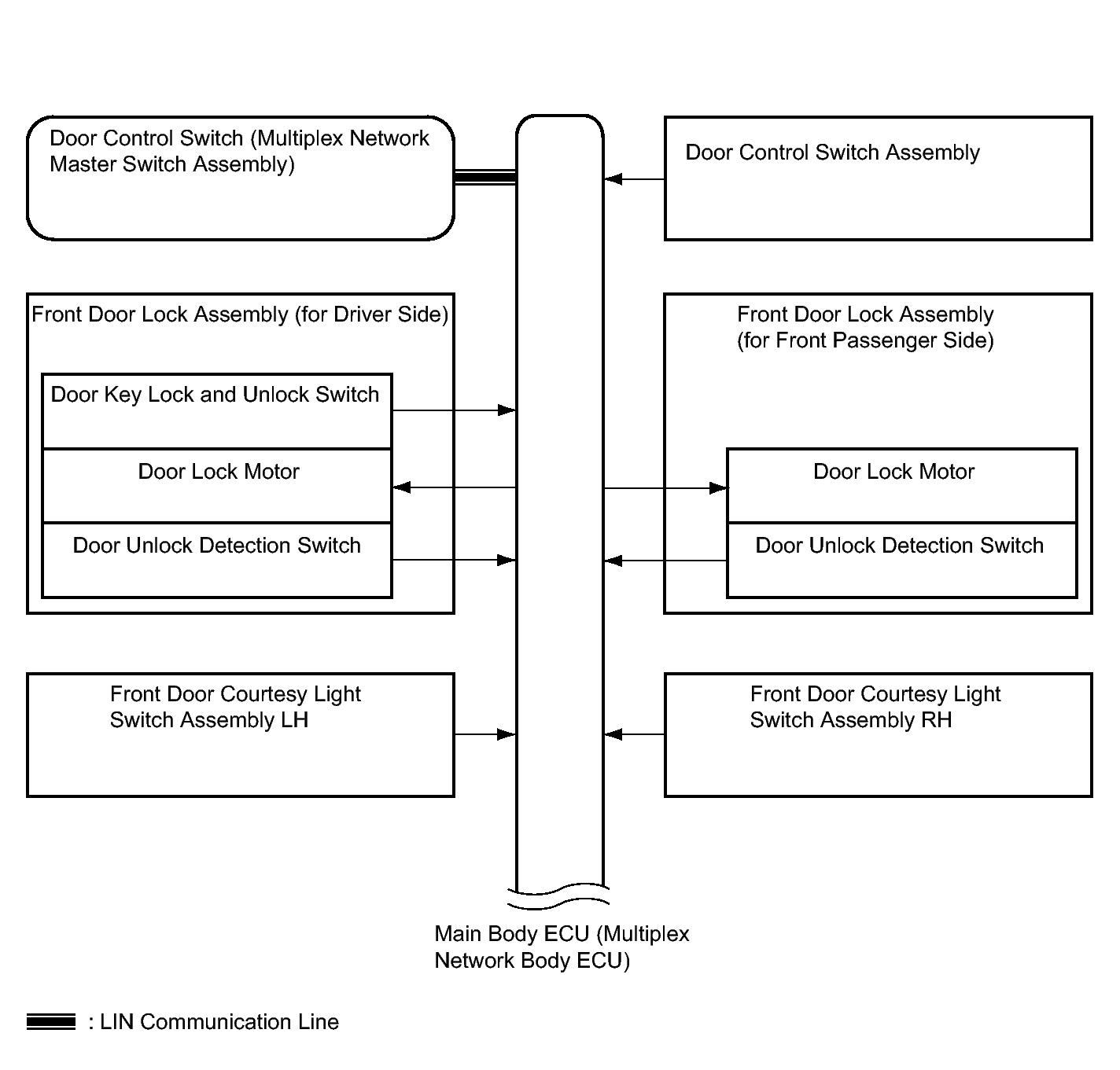

System Diagram
WARNING: This page is about a different variant/trim than selected.
COMMUNICATION TABLE
| Sender | Receiver | Signal | Communication Method |
|---|---|---|---|
| Multiplex Network Master Switch Assembly | Main Body ECU (Multiplex Network Body ECU) | Driver door control switch signal | LIN |
| Certification ECU (Smart Key ECU Assembly)*3 | Main Body ECU (Multiplex Network Body ECU) | Back door opener switch signal | CAN |
- *3: w/ Entry System Back Door Open Function
