Windshield Glass: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Using a brush or a sponge, coat the application area of the No. 2 windshield glass stoppers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new No. 2 windshield glass stoppers onto the windshield glass, as shown in the illustration.

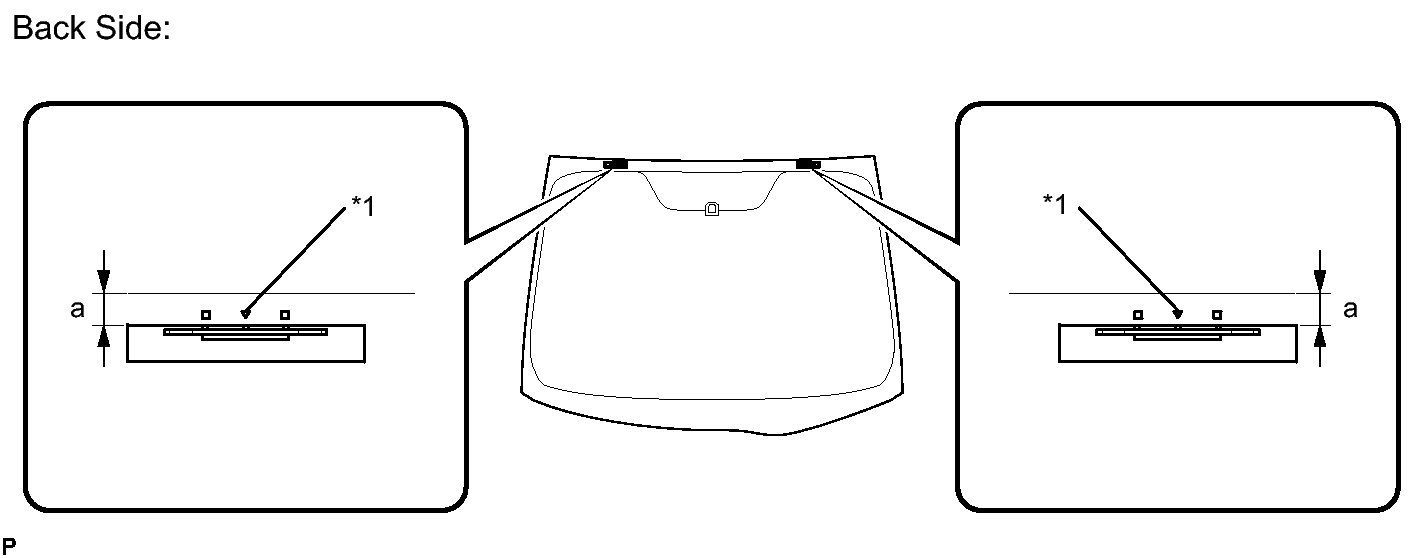

      Fig 1: Identifying No. 2 Windshield Glass, Ceramic Notch & Glass Stoppers
      GTY225571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ceramic Notch

      Standard Dimension

      Area Dimension
      a 13.7 to 14.7 mm (0.539 to 0.578 in.)
      NOTE:

      Only the 2-piece type No. 2 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  2. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
    1. Install 2 new No. 1 windshield glass stoppers to the vehicle body, as shown in the illustration.

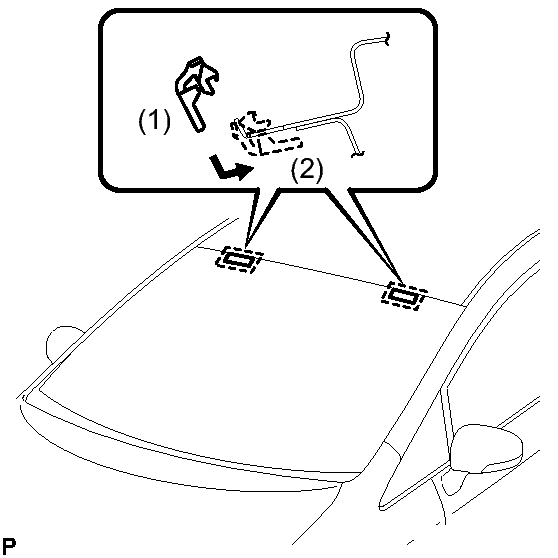

      Fig 2: Identifying No. 1 Windshield Glass Stoppers
      GTY227197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Only the 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.

  3. INSTALL WINDSHIELD OUTSIDE MOLDING
    1. Using a brush or a sponge, coat the application area of a new windshield outside molding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install the windshield outside molding onto the windshield glass, as shown in the illustration.

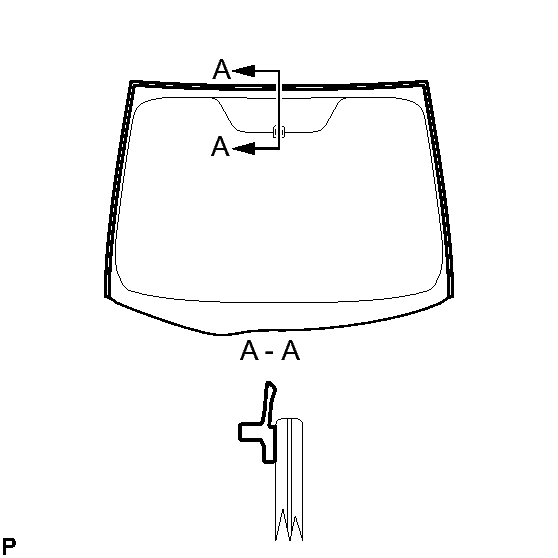

      Fig 3: Identifying Area Of Application For Window Glass Adhesive Dam With Primer G
      GTY233275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Using a brush or a sponge, coat the application area of a new window glass adhesive dam with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install the window glass adhesive dam onto the windshield glass, as shown in the illustration.

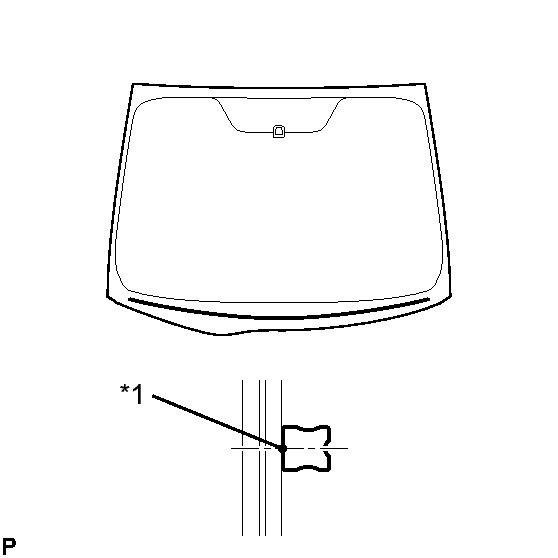

      Fig 4: Identifying Dam Center Line
      GTY211348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Dam Center Line
  5. INSTALL WINDSHIELD GLASS SUB-ASSEMBLY
    1. Position the windshield glass sub-assembly.

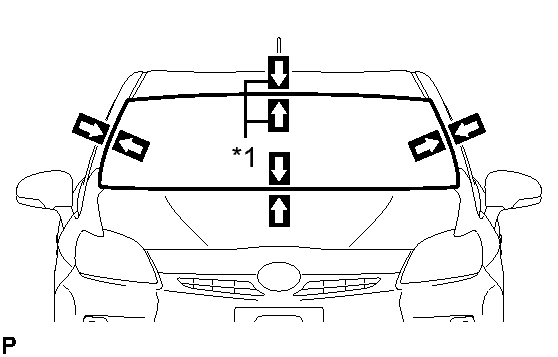

      Fig 5: Identifying Matchmarks And No. 1 Stopper On Windshield Glass
      GTY234374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
      1. Using suction cups, place the windshield glass in the correct position.
      2. Check that the whole contact surface of the windshield glass rim is perfectly even.
      3. Align the matchmarks on the windshield glass sub-assembly and vehicle body.
        NOTE:

        Check that the windshield glass stoppers are attached to the vehicle body correctly.

      4. Remove the windshield glass sub-assembly.
    2. Using a brush, coat the installation surface on the vehicle body with Primer M.

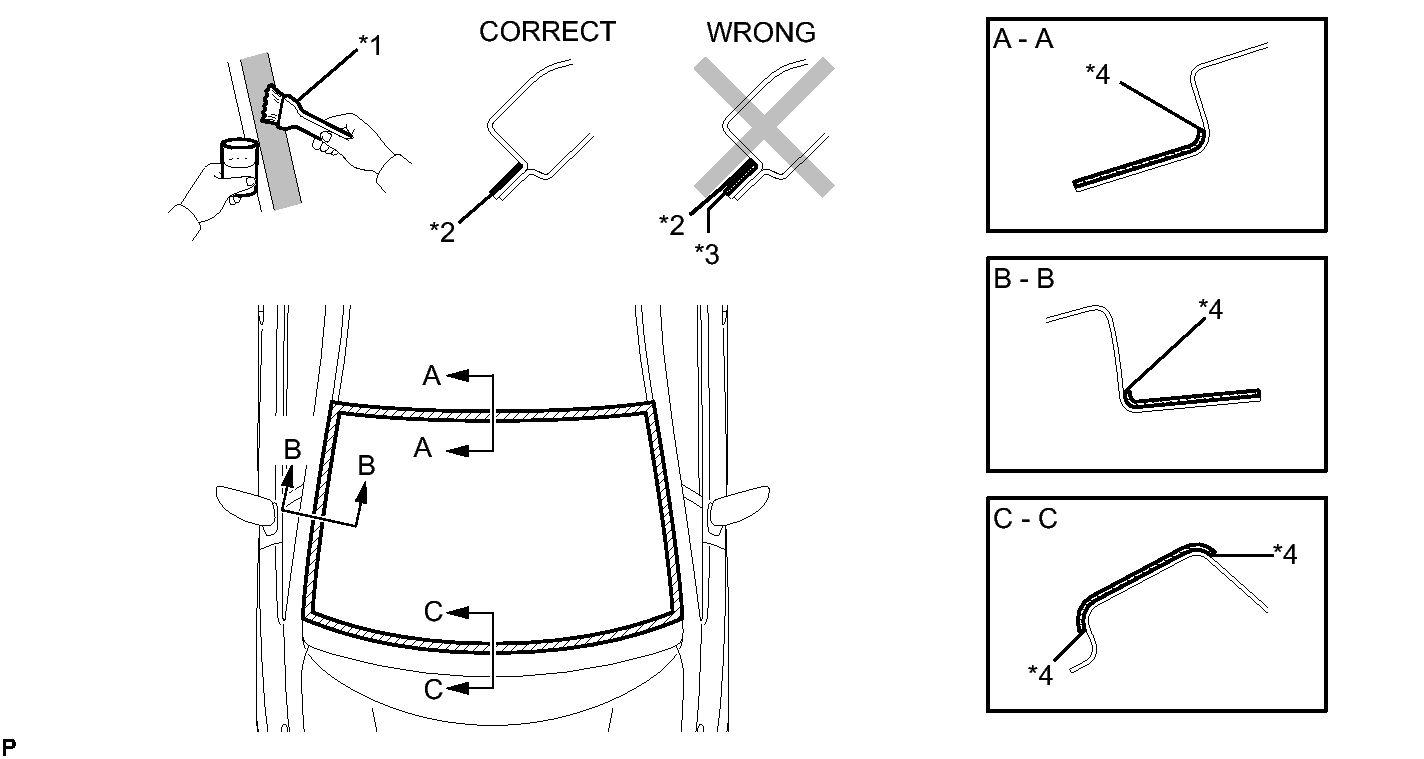

      Fig 6: Identifying Brush, Primer M, Adhesive, Edge of Curved Surface & Dimensions
      GTY219884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Brush *2 Primer M
      *3 Adhesive *4 Edge of Curved Surface
      NOTE:
      • Do not coat the adhesive with Primer M.
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    3. Using a brush or a sponge, coat the application area of adhesive with Primer G.

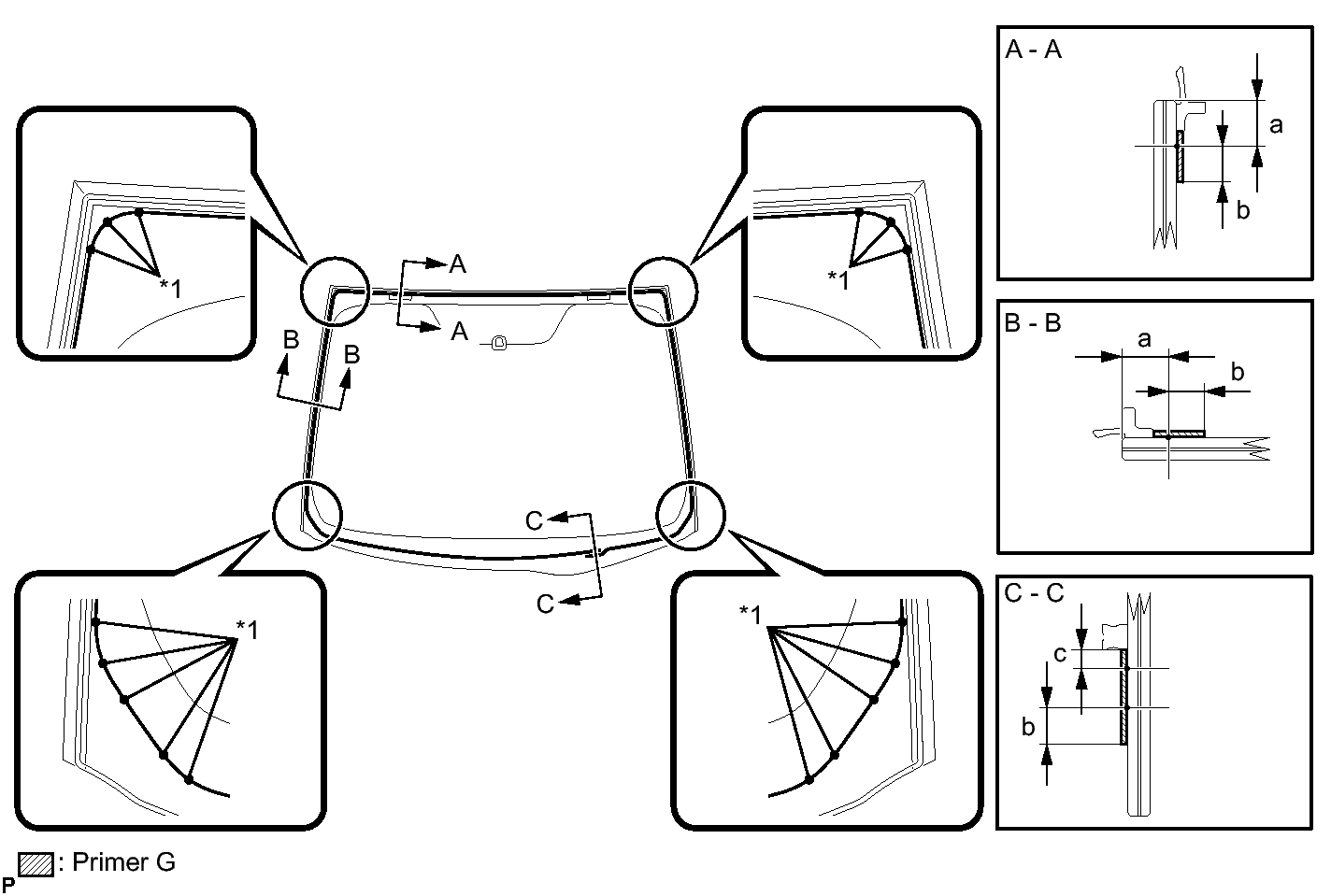

      Fig 7: Identifying Ceramic Notch & Primer G & Dimensions
      GTY232741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Ceramic Notch - -

      Standard Dimension

      Area Dimension
      a 9.5 mm (0.374 in.)
      b 7.0 mm (0.275 in.)
      c 4.0 mm (0.157 in.)
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      • Apply Primer G onto the ceramic notches.
      • If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
    4. Apply adhesive to the glass.

      Adhesive

      Toyota Genuine Windshield Glass Adhesive or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

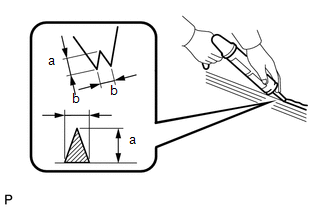

        Fig 8: Cutting Off Tip Of Cartridge Nozzle
        GTY225761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Dimension

        Area Dimension
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Usage Time Frame

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour and 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with cartridge.
      3. Apply adhesive to the windshield glass as shown in the illustration.

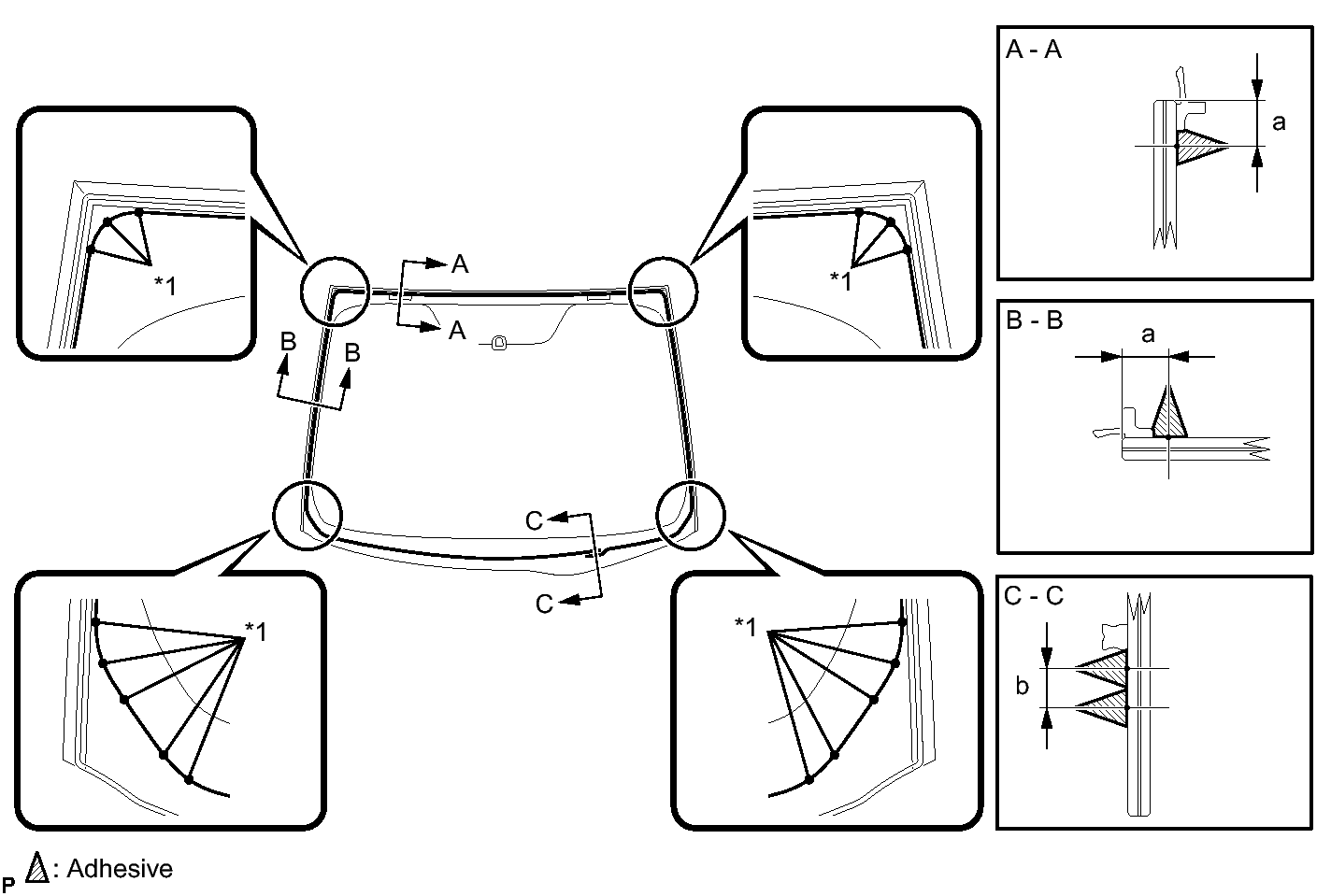

        Fig 9: Identifying Ceramic Notch & Adhesive Dimensions
        GTY210791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Ceramic Notch - -

        Standard Dimension

        Area Dimension
        a 9.5 mm (0.374 in.)
        b 8.0 mm (0.315 in.)

        HINT:

        Apply adhesive onto the ceramic notches.

    5. Install the windshield glass sub-assembly.
      Fig 10: Identifying Matchmarks And No. 1 Stopper On Windshield Glass
      GTY234374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
      1. Using suction cups, position the windshield glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.
        NOTE:
        • Check that the windshield glass stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and windshield glass.
      2. Lightly press the front surface of the windshield glass sub-assembly to ensure that the windshield glass sub-assembly is securely fit to the vehicle body.

        HINT:

        Press the glass with a force of 98 N (10 kgf, 22 lbf) or more.

      3. Using a scraper, remove any excess or protruding adhesive.

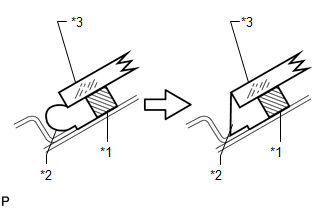

        Fig 11: Identifying Adhesive Applying Area Onto Windshield Glass Rim
        GTY232590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Dam
        *2 Adhesive
        *3 Windshield

        HINT:

        Apply adhesive onto the windshield glass rim.

      4. Hold the windshield glass using protective tape until applied adhesive becomes hard.
        NOTE:

        Do not drive the vehicle for the time described in the table below.

        Minimum Time

        Temperature Minimum Time prior to Driving Vehicle
        35°C (95°F) 1 hour and 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  6. INSPECT FOR LEAK AND REPAIR
    1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
    2. If water leaks into the cabin, allow the water to dry and add adhesive.
    3. Remove the protective tape.
  7. INSTALL ROOF HEADLINING ASSEMBLY
    1. Return the front section of the roof headlining assembly to the original position.
  8. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 3
  9. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 4
  10. INSTALL VISOR BRACKET COVER LH  . Refer to INSTALLATION - Step 5
  11. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and LH side.

  12. INSTALL VISOR BRACKET COVER RH

    HINT:

    Use the same procedure for the RH side and LH side.

  13. INSTALL ASSIST GRIP ASSEMBLY  . Refer to INSTALLATION - Step 8
  14. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)  . Refer to INSTALLATION - Step 2
  15. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)  . Refer to INSTALLATION - Step 3
  16. INSTALL ROOF TOP MOLDING (w/o Lane Keeping Assist System)  . Refer to INSTALLATION - Step 14
  17. INSTALL ROOF TOP MOLDING (w/ Lane Keeping Assist System)  . Refer to INSTALLATION - Step 15
  18. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 43
  19. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 44
  20. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and LH side.

  21. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 54
  22. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)  . Refer to INSTALLATION - Step 1
  23. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)  . Refer to INSTALLATION - Step 2
  24. INSTALL INNER REAR VIEW MIRROR COVER (w/ EC Mirror)  . Refer to INSTALLATION - Step 3
  25. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 4
  26. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 5
  27. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH  . Refer to INSTALLATION - Step 6
  28. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  29. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 8
  30. INSTALL FRONT WIPER ARM HEAD CAP  . Refer to INSTALLATION - Step 9
