DTC B2325: LIN Communication Bus Malfunction: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR (DRIVER SIDE) - MASTER SWITCH)
    1. Disconnect the O6 multiplex network master switch connector.

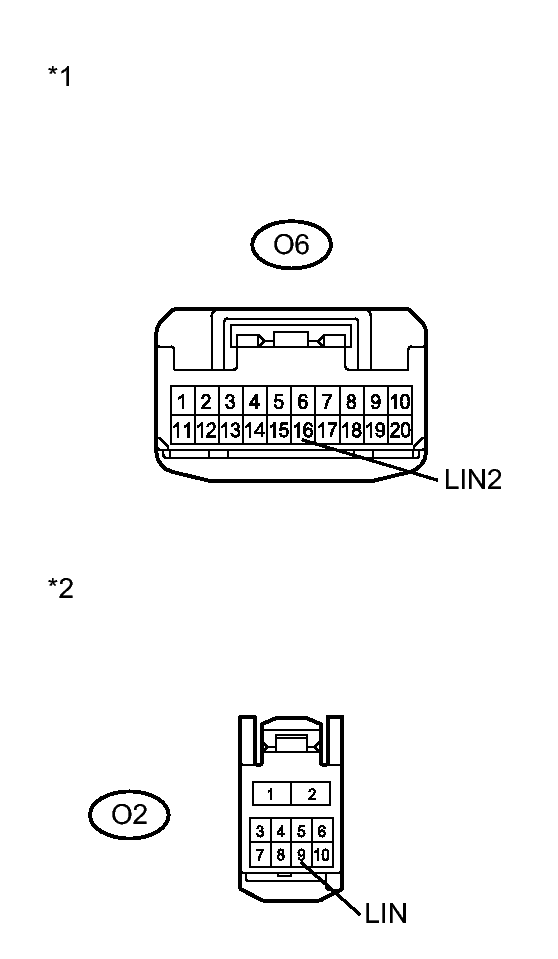

      Fig 1: Identifying Multiplex Network Master Switch And Power Window Regulator Motor Connector Terminals
      GTY214839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the O2 power window regulator motor (for driver side) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O6-16 (LIN2) - O2-9 (LIN) Always Below 1 Ω
      O6-16 (LIN2) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Multiplex Network Master Switch Assembly)
      *2 Front view of wire harness connector
      (to Power Window Regulator Motor Assembly (for Driver Side))

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. Remove the multiplex network master switch assembly. Refer to REMOVAL .

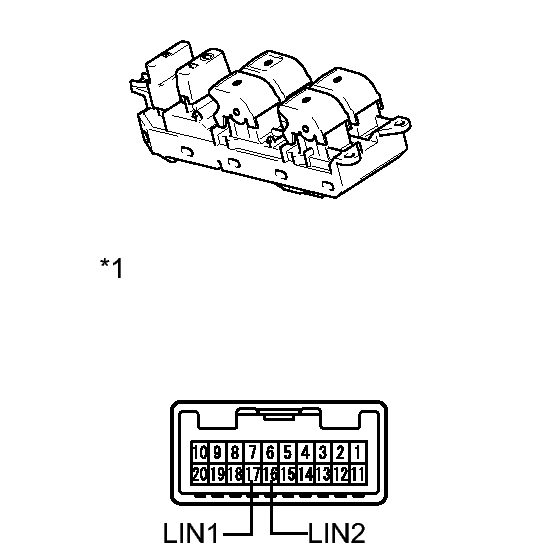

      Fig 2: Inspecting Multiplex Network Master Switch Assembly
      GTY227082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      16 (LIN2) - 17 (LIN1) Always Below 1 Ω
      16 (LIN2) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Multiplex Network Master Switch Assembly)

    NG → See step   14

    OK: Go to next step

  3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    1. Remove the instrument panel junction block assembly. Refer to REMOVAL .

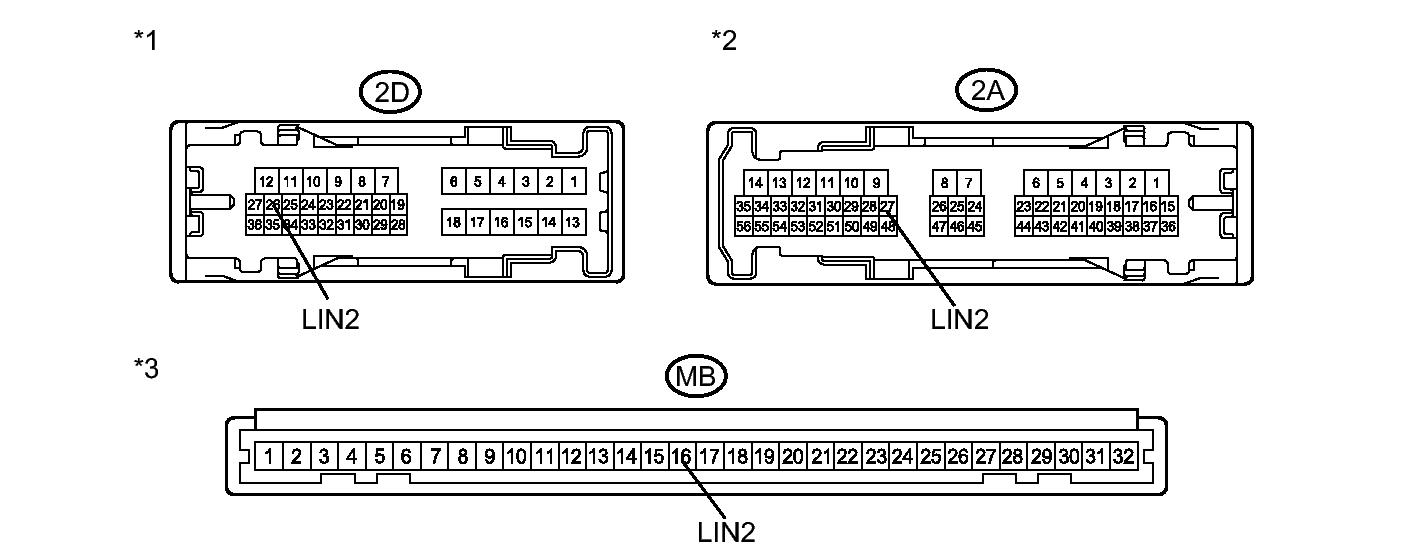

      Fig 3: Identifying Instrument Panel Junction Block Connector Terminals
      GTY212732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
    3. Measure the resistance according to the value(s) in the table below.

      HINT:

      This inspection is to check the LIN line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).

      Standard Resistance

      Tester Connection Condition Specified Condition
      2D-26 (LIN2) - MB-16 (LIN2) Always Below 1 Ω
      2A-27 (LIN2) - MB-16 (LIN2) Always Below 1 Ω
      2A-27 (LIN2) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 Component without harness connected
      (Instrument Panel Junction Block Assembly)      		 *2 Component without harness connected
      (Instrument Panel Junction Block Assembly)
      *3 Component without harness connected
      (Instrument Panel Junction Block Assembly)      		 - -

    NG → See step   11

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (INSTRUMENT JUNCTION BLOCK - EACH ECU)

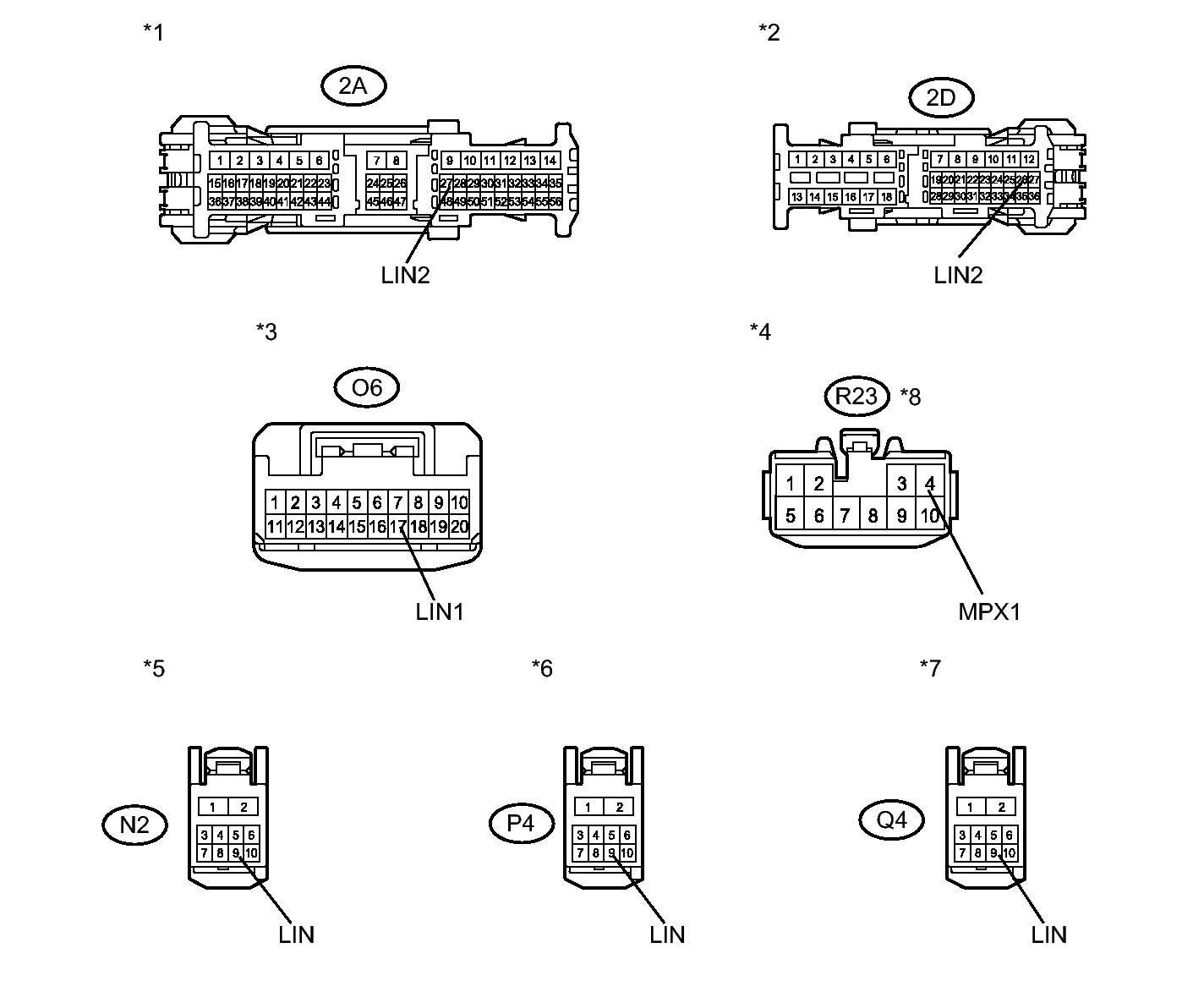

    Fig 4: Identifying Each ECU Instrument Panel Junction Block Connector Terminal
    GTY218968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the R23*1, N2, P4 and Q4 connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      2D-26 (LIN2) - Q4-9 (LIN) Always Below 1 Ω
      2A-27 (LIN2) - P4-9 (LIN) Always Below 1 Ω
      2A-27 (LIN2) - O6-17 (LIN1) Always Below 1 Ω
      2A-27 (LIN2) - N2-9 (LIN) Always Below 1 Ω
      2A-27 (LIN2) - R23-4 (MPX1)*1 Always Below 1 Ω
      2D-26 (LIN2) - Body ground Always 10 kΩ or higher
      2A-27 (LIN2) - Body ground Always 10 kΩ or higher
      • *1 w/ Moonroof with Solar Panel
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)      		 *2 Front view of wire harness connector
      (to Instrument Panel Junction Block Assembly)
      *3 Front view of wire harness connector
      (to Multiplex Network Master Switch Assembly)      		 *4 Front view of wire harness connector
      (to Sliding Roof ECU (Sliding Roof Driver Gear Sub-assembly))
      *5 Front view of wire harness connector
      (to Power Window Regulator Motor Assembly (for Front Passenger Side))      		 *6 Front view of wire harness connector
      (to Power Window Regulator Motor Assembly (for Rear RH Side))
      *7 Front view of wire harness connector
      (to Power Window Regulator Motor Assembly (for Rear LH Side))      		 *8 w/ Moonroof with Solar Panel

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK DTC OUTPUT (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for REAR LH SIDE))
    1. Reconnect the O6, 2A, 2D, R23*1, P4, O2 and N2 connectors.
      • *1: w/ Moonroof with Solar Panel
    2. Clear the DTC. Refer to DTC CHECK / CLEAR .
    3. After 10 seconds have elapsed, check if the trouble occurs again.
    4. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output A
      DTC B2325 is not output B

    B → See step   12

    A: Go to next step

  6. CHECK DTC OUTPUT (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)
    1. Reconnect the Q4 connector.
    2. Disconnect the O6 connector.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. After 10 seconds have elapsed, check if the trouble occurs again.
    5. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output A
      DTC B2325 is not output B

    B → See step   14

    A: Go to next step

  7. CHECK DTC OUTPUT (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for REAR RH SIDE))
    1. Reconnect the O6 connector.
    2. Disconnect the P4 connector.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. After 10 seconds have elapsed, check if the trouble occurs again.
    5. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output A
      DTC B2325 is not output B

    B → See step   15

    A: Go to next step

  8. CHECK DTC OUTPUT (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for DRIVER SIDE))
    1. Reconnect the P4 connector.
    2. Disconnect the O2 connector.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. After 10 seconds have elapsed, check if the trouble occurs again.
    5. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output A
      DTC B2325 is not output B

    B → See step   16

    A: Go to next step

  9. CHECK DTC OUTPUT (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for FRONT PASSENGER SIDE))
    1. Reconnect the O2 connector.
    2. Disconnect the N2 connector.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. After 10 seconds have elapsed, check if the trouble occurs again.
    5. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output (w/ Moonroof with Solar Panel) A
      DTC B2325 is output (w/o Moonroof with Solar Panel) B
      DTC B2325 is not output C

    B → See step   18

    C → See step   17

    A: Go to next step

  10. CHECK DTC OUTPUT (SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY))
    1. Reconnect the N2 connector.
    2. Disconnect the R23 connector.
    3. Clear the DTC. Refer to DTC CHECK / CLEAR .
    4. After 10 seconds have elapsed, check if the trouble occurs again.
    5. Check for DTCs again.

      Result

      Result Proceed to
      DTC B2325 is output A
      DTC B2325 is not output B

    B → See step   13

    A → See step   18

  11. REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL
  12. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for REAR LH SIDE). Refer to  REMOVAL
  13. REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY). Refer to  REMOVAL
  14. REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  REMOVAL
  15. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for REAR RH SIDE). Refer to  REMOVAL
  16. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for DRIVER SIDE). Refer to  REMOVAL
  17. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for FRONT PASSENGER SIDE). Refer to  REMOVAL
  18. REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL
