DTC B2789: No Response from ID BOX: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

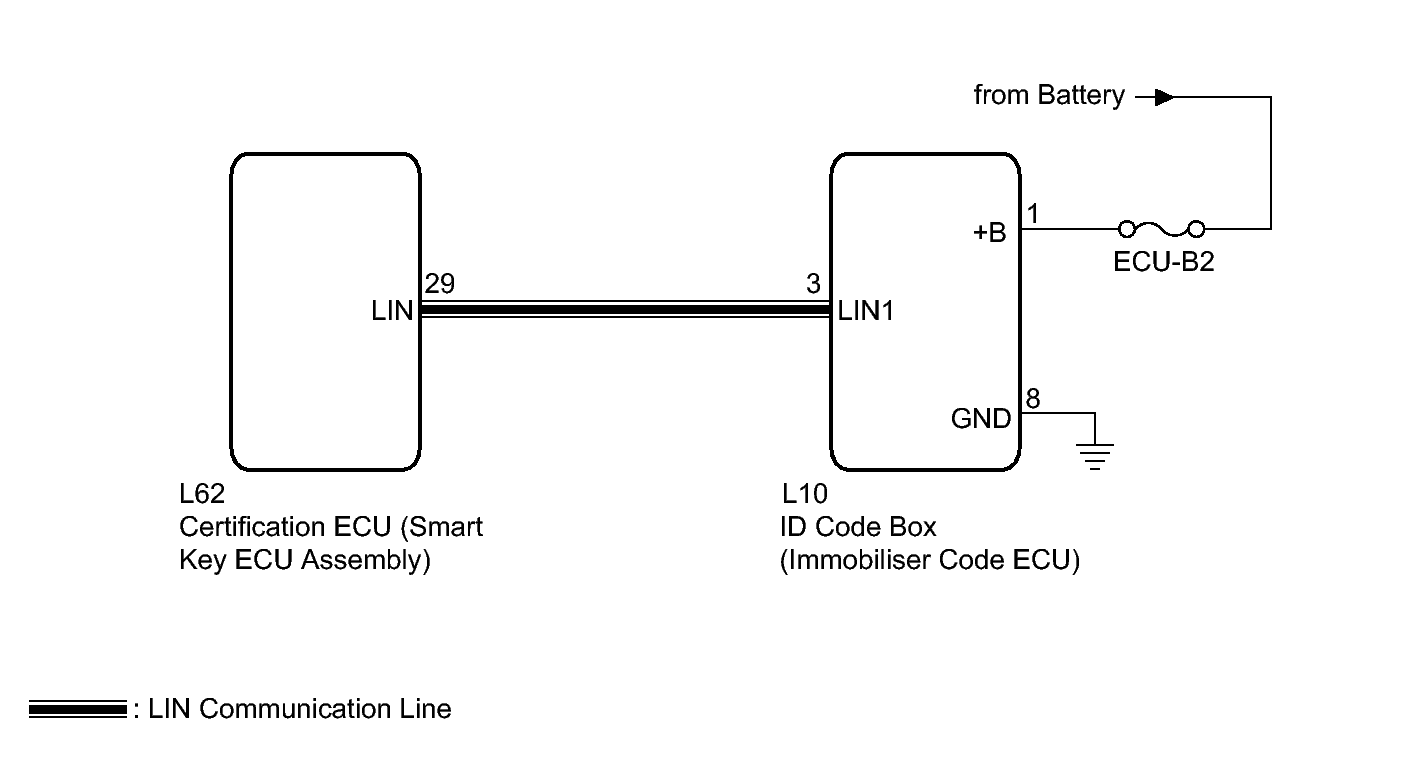

Fig 1: Identifying Certification ECU (Smart Key ECU Assembly) And ID Code Box (Immobilizer Code ECU) Wiring Diagram
GTY224381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
