Section 145 (Vehicle Proximity Notification System (Except Plug-In) (Diagnostics))
>>
Vehicle Proximity Notification System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram
WARNING:
This page is about a different variant/trim than selected.

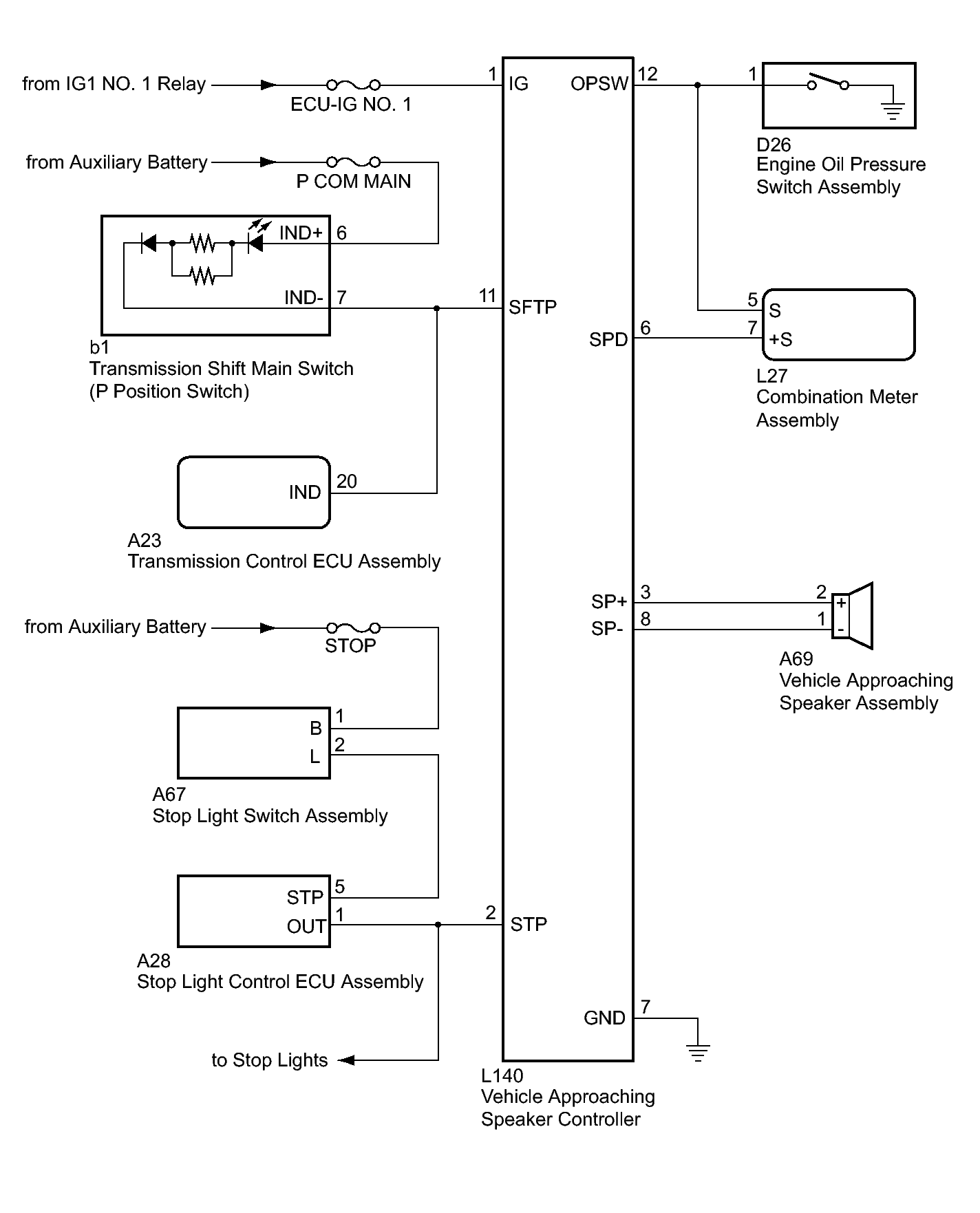

Fig 1: Vehicle Proximity Notification System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
