Service Plug Grip: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL SERVICE PLUG GRIP
WARNING:
Wear insulating gloves.

NOTE:
Before connecting the service plug, check that no parts and tools remain and that the high voltage terminals and connectors are connected securely.
1. Wear insulated gloves and install the service plug grip in the order shown in the illustration.

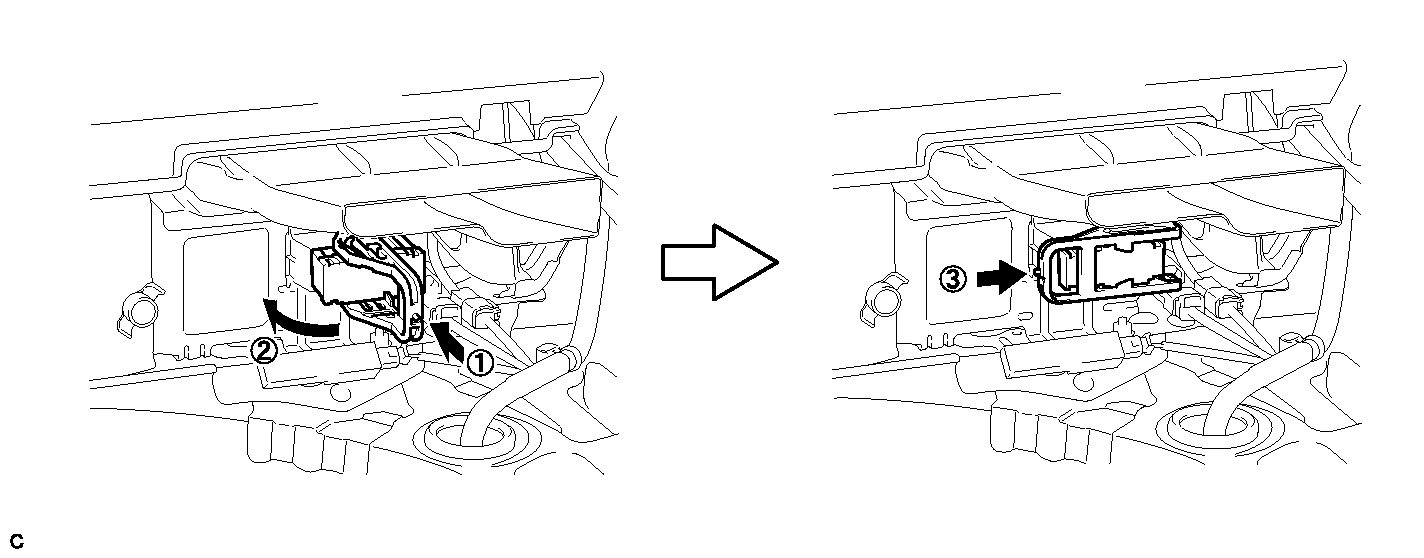

  Fig 1: Identifying Service Plug Grip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rotate the handle of the service plug grip 90° toward the battery and slide it in the direction shown by the arrow until a click sound is heard.
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
