Driving Support Ecu: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL DRIVING SUPPORT ECU
1. Install the driving support ECU with the nut.

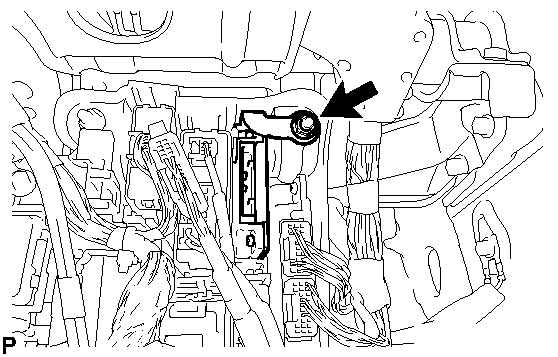

  Fig 1: Locating Driving Support ECU & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not install the driving support ECU if it has been damaged or impacted in any way.
2. Connect the connector.

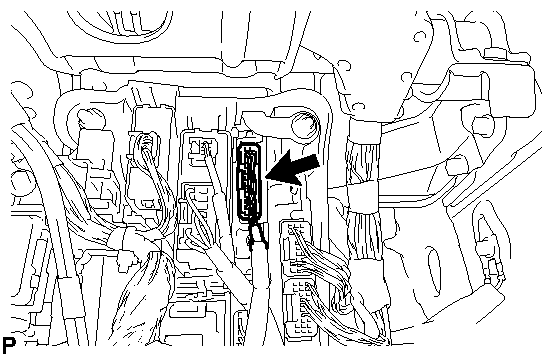

  Fig 2: Locating Driving Support ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 14
