Room Light: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 ROOM LIGHT ASSEMBLY

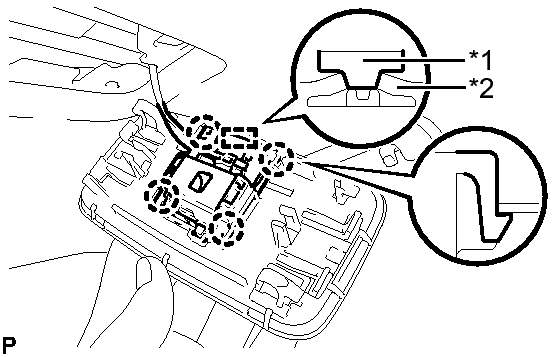

    1. Align the switch parts shown in the illustration and engage the 4 claws to install the room light switch base to the No. 1 room light assembly.
      Fig 1: Installing No. 1 Room Light Assembly
      GTY222179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Switch Part of Room Light Switch Base
      *2 Switch Part of No. 1 Room Light Assembly
    2. Engage the 4 claws and install the No. 1 room light assembly.
      Fig 2: View Of Attaching Claws To Install No. 1 Room Light Assembly
      GTY213458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

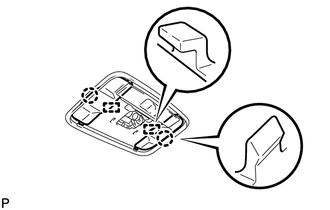

    3. Engage the 2 claws and 2 guides to install the 2 No. 1 room light covers.
      Fig 3: Installing No. 1 Room Light Covers
      GTY213459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

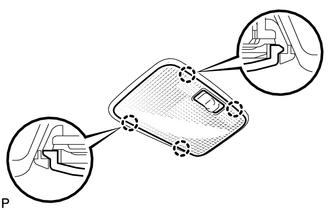

    4. Engage the 4 claws to install the No. 1 room light lens.
      Fig 4: Installing No. 1 Room Light Lens
      GTY232177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
